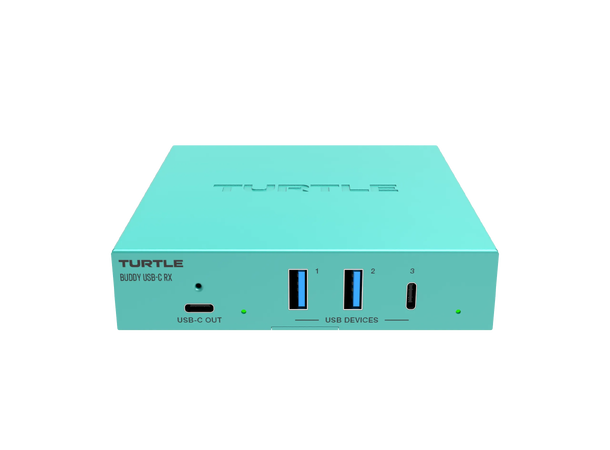

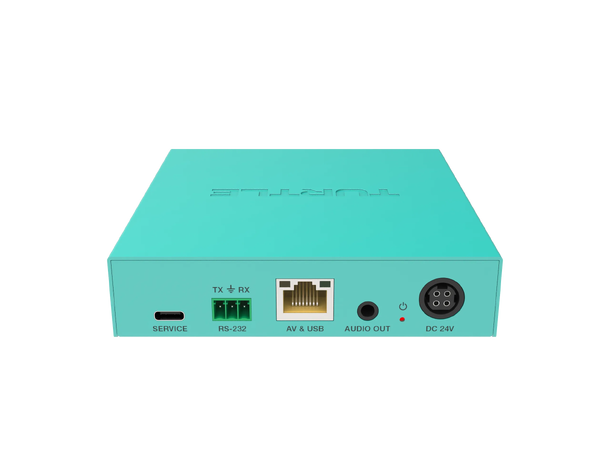

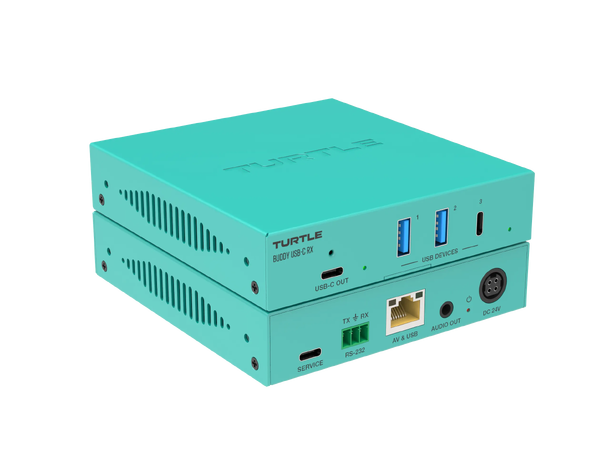

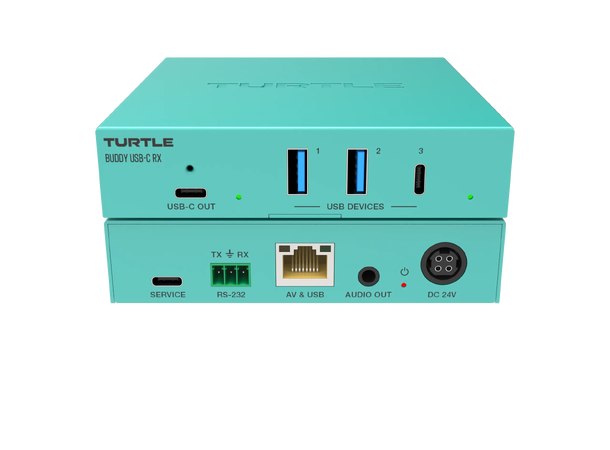

Turtle AV Boardroom Buddy USB-C RX4K60. USB 3.2 Gen 1 with 2.5Gbps Data

Overview

Meet your new Boardroom Buddies. Uncompressed 4K60 video, USB 3.2 at 2.5Gbps. No additional power bricks. Just connect the included PSU and Boardroom Buddy handles the rest.

Technical

USB Protocol USB 3.2 Gen 1 and USB 2.0
Transmission Rate Up to 2.5Gbps
HDCP Compliance HDCP 2.3 and HDCP 1.x
DP Compliance DisplayPort 1.4a
Video Bandwidth 18Gbps
Video Resolution (Input & Output)
640x480p60Hz
800x600p60Hz
1024x768p60Hz
1280x1024p60Hz
1360x768p60Hz
1440x900p60Hz
1440x1050p60Hz
1600x1200p60Hz
720x480i59.94Hz (480i59)
720x480p59.94Hz (480p59)
720x576i50Hz (576i50)
720x576p50Hz (576p50)
1280x720p50Hz (720p50)
1280x720p59.94Hz (720p59)
1280x720p60Hz (720p60)
1920x1080i50Hz (1080i50)
1920x1080i59.94Hz (1080i59)
1920x1080i60Hz (1080i60)
1920x1080p23.98Hz (1080p23)
1920x1080p24Hz (1080p24)
1920x1080p25Hz (1080p25)
1920x1080p29.97Hz (1080p29)
1920x1080p30Hz (1080p30)
1920x1080p50Hz (1080p50)
1920x1080p59.94Hz (1080p59)
1920x1080p60Hz (1080p60)
2560x1080p60Hz
3440x1440p60Hz
3840x2160p23.98Hz (2160p23)
3840x2160p24Hz (2160p24)
3840x2160p25Hz (2160p25)
3840x2160p29.97Hz (2160p29)
3840x2160p30Hz (2160p30)
3840x2160p50Hz (2160p50)
3840x2160p59.94Hz (2160p59)
3840x2160p60Hz (2160p60)
4096x2160p23.98Hz
4096x2160p24Hz
4096x2160p25Hz
4096x2160p29.97Hz
4096x2160p30Hz
4096x2160p50Hz
4096x2160p59.94Hz
4096x2160p60Hz
5120x1440p50Hz
5120x1440p60Hz
5120x2160p50Hz
5120x2160p60Hz
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Depth 8/10/12-bit, 8-bit (5K60Hz, 4:2:2)
Color Space RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
Audio Format
USB-C OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
Analog audio de-embedding: LPCM 2CH, sample rate 32kHz to 192kHz
Transmission Distance
Up to 40m / 130ft for 5K@30Hz via CAT6a minimum required U/FTP cable
Up to 35m / 115ft for 5K@60Hz via CAT6a minimum required U/FTP cable
1.5m / 4.9ft via USB 3.2 Gen 1 passive cable
2m / 6.6ft via USB 2.0 passive cable
Analog Audio Parameters
Output level (max): 2.2dBu (1Vrms)
Frequency response: 20Hz to 20kHz (+/-0.5dB)
Dynamic range: >90dB @ 0dBu, 1kHz, A-weighted
Audio S/N ratio: >90dB @ 0dBu, 1kHz, A-weighted
Audio THD+N: <0.006% @ +2.2dBu, 1kHz
ESD Protection IEC 61000-4-2: +/-8kV air-gap discharge, +/-4kV contact discharge

Connections

Input
1x AV-USB3 IN, RJ45 connector, 24V PoC
Output
2x USB-A downstream, 9-pin female
1x USB-C downstream, 24-pin female
1x USB-C OUT, USB-C, 24-pin female
1x AUDIO OUT, 3.5mm audio jack
Control
1x RS-232, 3-pin 3.5mm phoenix connector
1x SERVICE, USB-C firmware update port

Mechanical

Housing Metal enclosure
Color Turtle Aqua
Dimensions Receiver: 118mm (W) x 111mm (D) x 25.5mm (H)
Weight Receiver: 365g
Power Supply Input: AC 100~240V 50/60Hz; output: DC 24V/7.5A (US/EU standards, CE/FCC/UL certified)
Power Consumption 33W max
Operating Temperature 0°C to 40°C / 32°F to 104°F
Storage Temperature -20°C to 60°C / -4°F to 140°F
Operating Humidity 20% to 80% relative humidity, non-condensing
Storage Humidity 10% to 90% relative humidity, non-condensing
