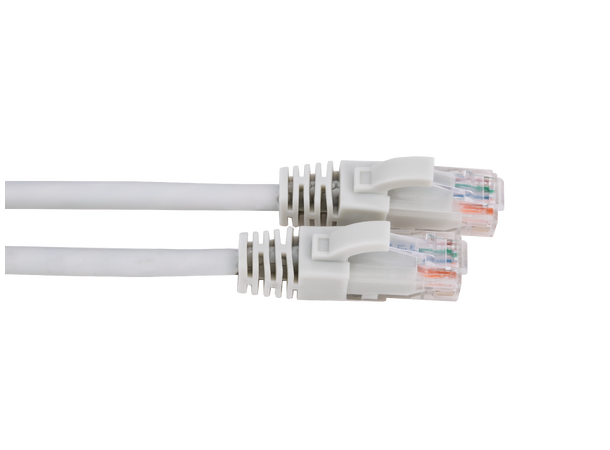

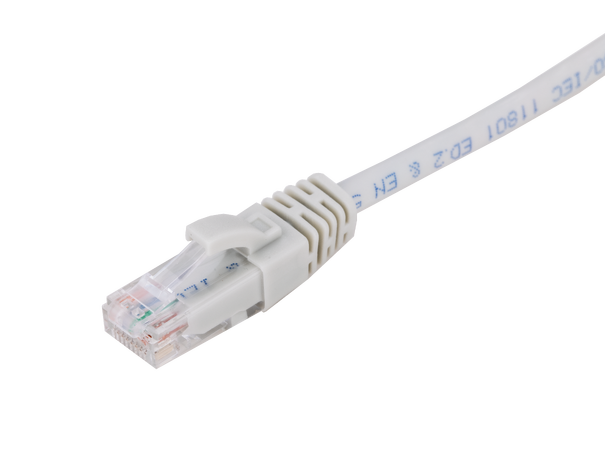

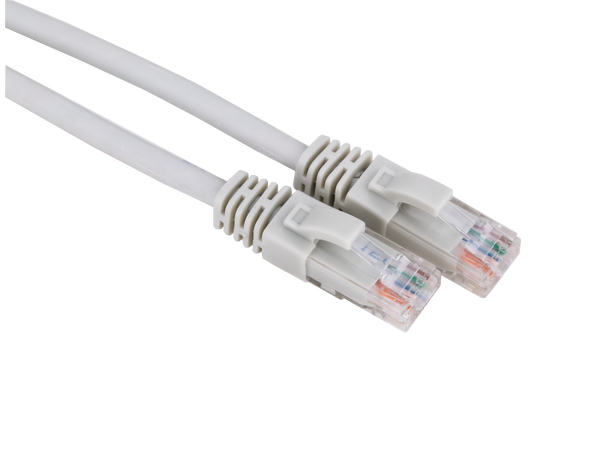

LinkIT Patch U/UTP Cat.6a Grey 10m
AWG 24 | LSZH
Cat.6a cables are used for all installations where one needs robust infrastructure that can handle high loads and is designed for the future. Complies with Cat.6a, manages 10Gbps speed and 500MHz bandwidth. Suitable for use in data center. PoE and PoE + are supported for cable bundles up to 100 cables, PoE ++ Type3 and 4 are supported for cable bundles up to 72 cables.
- Complies with Cat.6a, manages 10Gbps speed
- 500MHz bandwidth
- Suitable for use in data center
- PoE and PoE + are supported for cable bundles up to 100 cables
- PoE ++ Type3 and 4 are supported for cable bundles up to 72 cables
Main Specifications
| Brand | LinkIT |
|---|
| Color | Grey |
|---|
| Length (m) | 10 |
|---|
| Category | Cat.6a |
|---|
| Connector type 1 | RJ-45 male (8P8C) |
|---|
| Connector type 2 | RJ-45 male (8P8C) |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
Extended Specifications
| AWG wire size | 24 |
|---|
| Transmission speed | 10Gbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| Cable structure | 4 x 2 AWG 24/7 Twisted pair |
|---|
| Locking type | Snagless |
|---|
| NVP value | 76% |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded PVC |
|---|
| Pin Assignment | 568B-568B |
|---|
| Halogenfree | Yes |
|---|
| Connector contact plating | 50µin gold plated |
|---|
