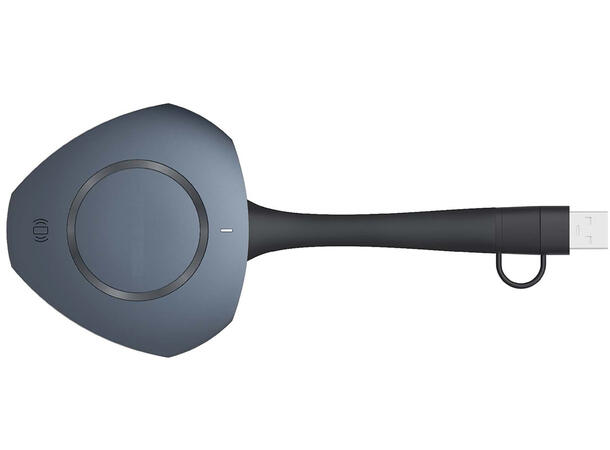

Zynage WD126 Wireless Dongle
The Zynage WD126 Wireless Dongle is designed for seamless
wireless content sharing with all Zynage displays. With a single button press,
users can instantly share their screen to the display. The dongle supports both
BYOM (Bring Your Own Meeting) and BYOD (Bring Your Own Device) and is based on
DisplayPort Alt Mode for stable and high-quality wireless transmission.
Hardware Specifications
|
Category
|
Specification
|
Details
|
|
Ports
|
USB Type-C
|
1
|
|
USB Type-A (adapter)
|
1
|
|
Video
|
Default Resolution
|
1920 × 1080 @ 30Hz
|
|
Maximum Resolution
|
Up to 3840 × 2160 @ 30Hz
|
|
Touch Back Support
|
Yes
|
|
Bluetooth
|
Version
|
5.2
|
|
Working Frequency
|
2.4 GHz
|
|
Working Distance
|
0 – 12 m
|
|
Wi-Fi
|
Standard
|
802.11a / n / ac / ax
|
|
Working Frequency
|
5 GHz
|
|
Working Distance
|
0 – 12 m
|
|
Performance & System
|
Maximum Connection Distance
|
12 m
|
|
Operating Systems
|
Windows 10 / Windows 11 / macOS 10.12 and above
|
|
Maximum Startup Time
|
= 5 s
|
|
Cold Start Time
|
= 12 s
|
|
Maximum Disconnect Time
|
1 s
|
|
Transmission Delay
|
= 120 ms
|
|
Power Requirements
|
5V @ 500 mA
|
|
Power Consumption
|
2.5 W
|
|
Operating Temperature
|
0°C – 40°C
|
|
Environment
|
Operating Humidity
|
10% – 90% RH
|
|
Storage Temperature
|
-20°C – 60°C
|
|
Storage Humidity
|
10% – 90% RH
|
|
Physical
|
Device Dimensions (L × W × H)
|
184 × 78.7 × 19.4 mm
|
|
Package Dimensions
|
196 × 110 × 28 mm
|
|
Weight
|
233 g
|
