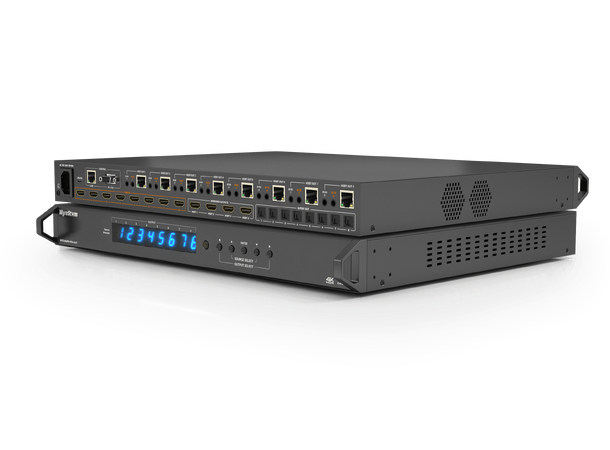

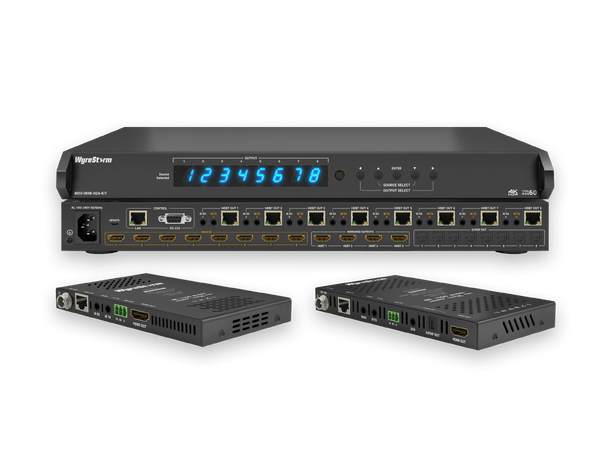

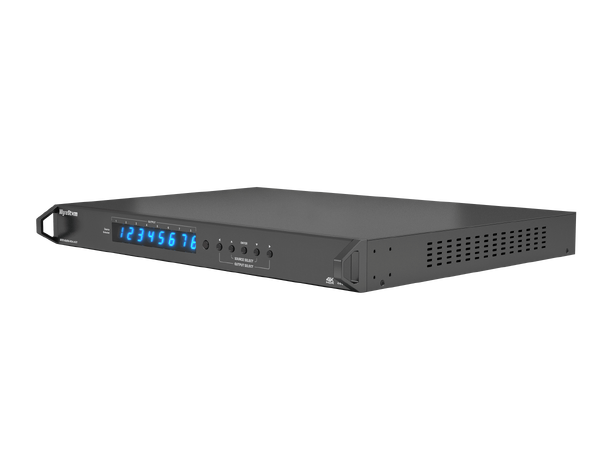

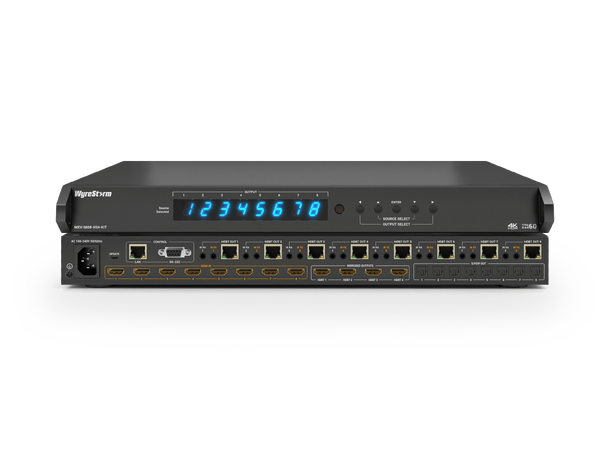

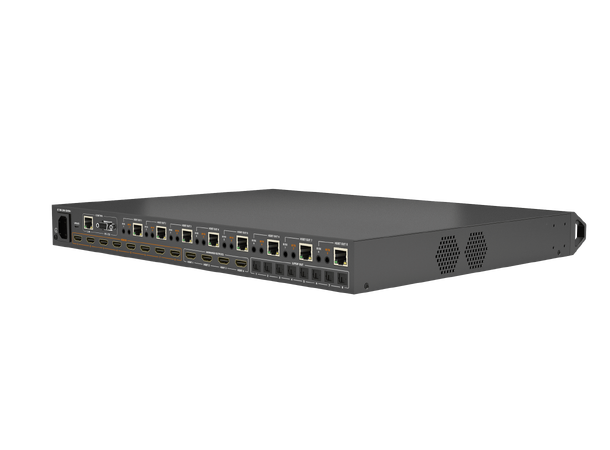

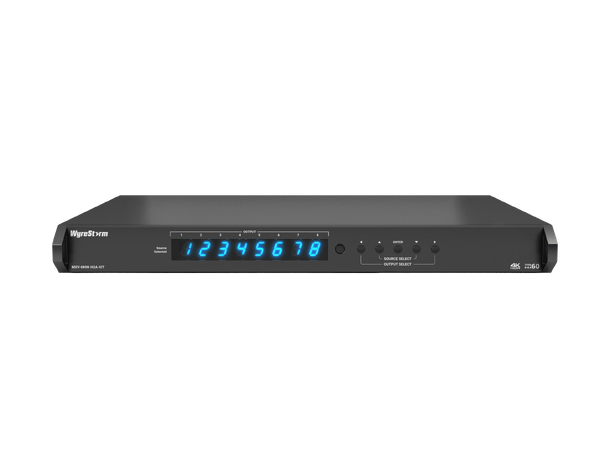

4K60 8×8 HDBaseT Matrix Kit with 8x Receivers

SKU: MXV-0808-H2A-KIT

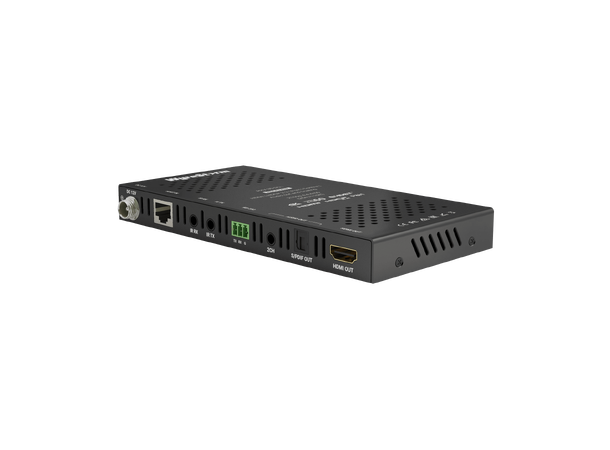

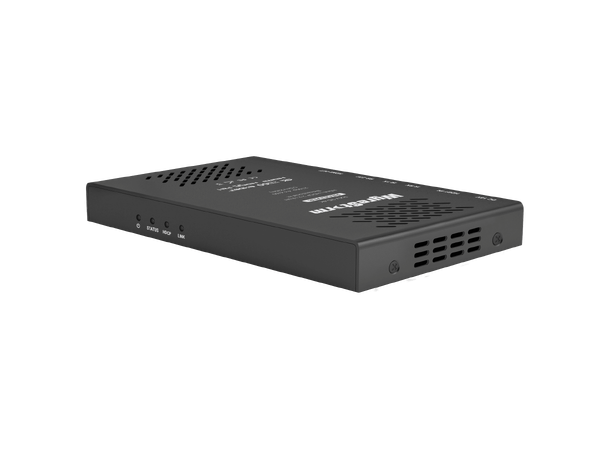

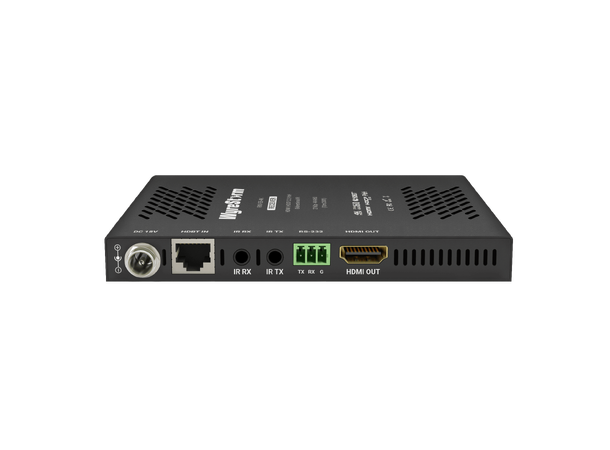

The MXV-0808-H2A-KIT delivers the same powerful performance as the standalone MXV-0808-H2A matrix switcher, now bundled with 6 standard HDBaseT receivers and 2 scaling receivers—making it an ideal solution for installations with a mix of 4K and 1080p displays. Capable of transmitting full 18Gbps HDMI content up to 35m/115ft using WyreStorm’s advanced lossless compression (VLC), this kit maintains perfect signal integrity without compromising color fidelity—unlike other methods such as CSC that permanently discard color data. With 8 HDBaseT zone outputs and 4 mirrored HDMI outputs, plus CEC triggering across all 12 display connections, the MXV-0808-H2A-KIT ensures seamless video distribution in residential or commercial environments where display compatibility and reliability are key.

Technical Specifications

AUDIO & VIDEO

Inputs

8x HDMI In: 19-pin type A

Outputs

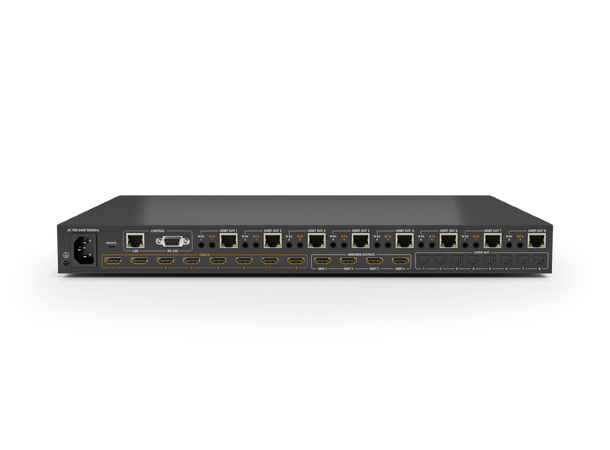

8x HDBT Out: 8-pin RJ-45 Female
8x S/PDIF Out: TOSLINK (Digital Optical)
4x HDMI Out: 19-pin type A

Video Encoding

HDBaseT™ Class B

Encoding Data Rate

18Gbps

End to End Latency (Max)

10µs (micro seconds)

Audio Formats

S/PDIF: 2ch LPCM | Dolby Digital/DTS up to 5.1ch
HDMI: 2ch LPCM | Multichannel up to Dolby Atmos and DTS-X

Video Resolution (Max)

1920x1080p @120Hz 12bit
3840x2160p @60Hz 10bit 4:2:0 HDR
4096x2160p @60Hz 8bit 4:4:4

Supported Standards

DCI | RGB | HDR | HDR10 | Dolby Vision(DVLL) up to 60Hz | HLG | BT.2020 | BT.2100

Maximum Pixel Clock

HDMI: 600MHz | HDBaseT: 297MHz

COMMUNICATION & CONTROL

HDMI

HDMI 2.0 | HDCP 2.2 | EDID

HDBaseT

HDMI 2.0 | HDCP 2.2 | EDID | CEC | 1-way PoH | Bidirectional IR

CEC

CEC power triggering via API | Requires CEC compatibility

IR

8x IR RX: 3.5mm (1/8in) TRS Stereo | 8x IR TX: 3.5mm (1/8in) TS Mono

RS-232

1x RS-232: 9-pin DB9 Female | Matrix Control | Telnet commands supported

Ethernet

1x LAN: 8-pin RJ-45 Female | Web UI | Matrix Control

POWER

Power Supply

100~240V AC 50/60Hz

Max Power Consumption

168W

Additional Features

HDBaseT Transmission of 4K/60 4:4:4 up to 35m/115ft to 8 zones
S/PDIF Toslink audio matrix outputs with De-embed from source independently
Supports 60Hz HDR-10 & HLG & Dolby Vision(LLDV) and more
4 mirrored HDMI outputs offering 18Gbps throughput
API triggered standby mode puts unit into low power state during downtime
A/V mute function cuts signal to any output on demand
Automatic of API triggered CEC power triggers for all compatible connected screens or projectors
Supports routable and customizable RS232 and CEC commands for easy display control
