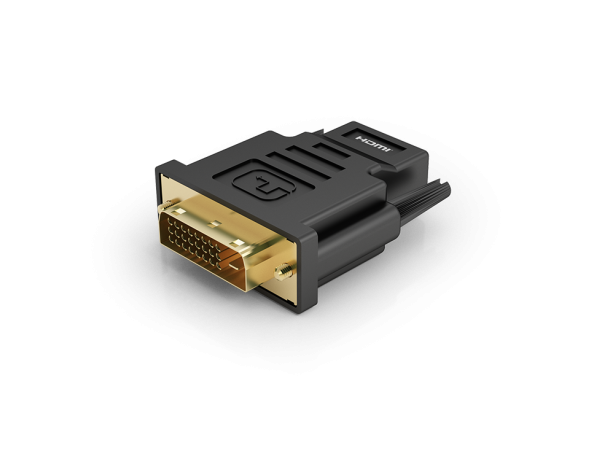

WyreStorm Essentials DVI to HDMI

SKU: EXP-HDMI-DVI

The EXP-HDMI-DVI is a two-way adapter that can either convert HDMI signals to DVI-D signals or DVI-D signals to HDMI signals and is compatible with a variety of HDMI sources and DVI displays.

Technical Specifications

AUDIO & VIDEO

• Inputs: 1x HDMI: 19-pin type A Female
• Outputs: 1x DVI-D: 25-pin Male
• Video Encoding: Uncompressed
• Encoding Data Rate: 10.2Gbps
• End to End Latency: Zero
• Video Resolution (Max):
  • 1920x1080p @240Hz 8bit RGB
  • 2560x1440p @60Hz 8bit RGB
• Supported Standards: DCI | RGB | Rec. 709
• Maximum Pixel Clock: 330MHz

COMMUNICATION & CONTROL

• HDMI: TMDS | HDCP 1.4 | EDID

Additional Features

• Converts an HDMI signal to DVI-D and vice versa
• Simple, passive plug-and-play design

In the Box

• 1x EXP-HDMI-DVI HDMI Adapter
