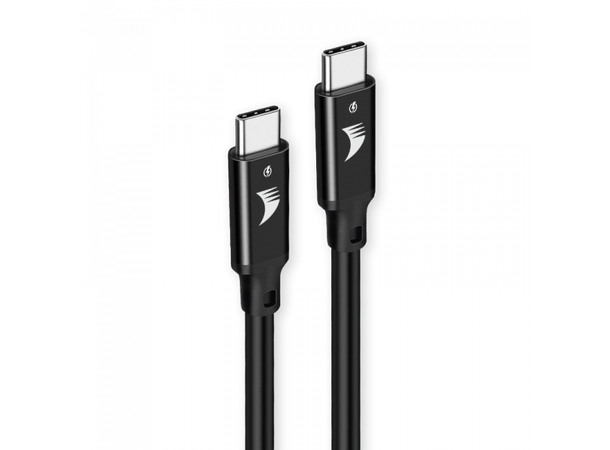

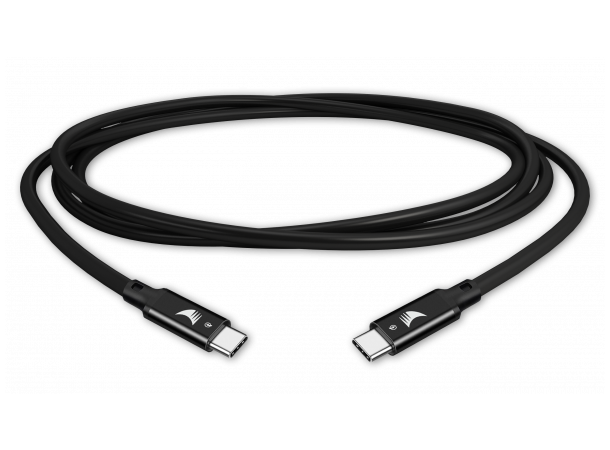

USB 3.2 USB-C to USB-C Cable
SKU: EXP-CAB-USBC-xM
The EXP-CAB-USBC-xM is a high-quality USB-C to USB-C cable capable of transmitting A/V and data over standard copper. USB data is rated up to Superspeed 10Gbps for fast file transfers or connecting USB 3.0 equipped devices such as conference cameras. It also supports Alt-Mode for 4K60 video transmission and up to 60W power delivery, making it ideal for use with WyreStorm Apollo products or presentation switchers.
Key Features
- Superspeed 10Gbps: USB 3.2 Gen 2x2 performance ideal for file transfers and high-speed USB peripherals.
- Alt-Mode Support: Enables 4K60 10bit 4:4:4 or RGB video transmission from USB-C laptops and mobile devices.
- Power Delivery: Delivers up to 60W (20V/3A) for device charging while in use.
- Durable Construction: Aluminum connector heads and thick PVC jacket for extended life and resistance to kinks.
Technical Specifications
Audio & Video
- Max Video Resolutions:
- 1920x1080p @ 240Hz
- 4096x2160p @ 60Hz 4:4:4 10bit
- 4096x2160p @ 60Hz RGB
- Audio: 2ch PCM
- Standards Supported: RGB, USB Superspeed, USB Alt-Mode
Communication & Control
- USB: USB 3.2 Gen 2x2, 10Gbps
Power
- Power Supply: 20V 3A (60W)
Environmental
- Operating Temperature: 14°F ~ 158°F (-10°C ~ 70°C), 0% ~ 85% non-condensing
- Storage Temperature: -40°F ~ 185°F (-40°C ~ 85°C), 0% ~ 85% non-condensing
Regulatory
- Certifications: CE, FCC, RoHS, RCM, EAC
In the Box
