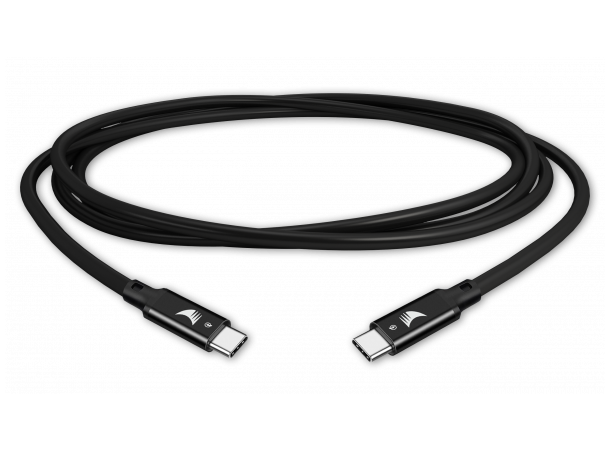

USB 3.2 USB-C to USB-C Cable
SKU: EXP-CAB-USBC-xM
The EXP-CAB-USBC-xM is a high-quality USB-C to USB-C cable capable of transmitting A/V and data over standard copper. USB data is rated up to Superspeed 20Gbps for fast file transfers or connecting USB 3.0 equipped devices such as conference cameras. It also supports Alt-Mode for 4K60 video transmission and up to 100W power delivery, making it ideal for use with WyreStorm Apollo products or presentation switchers.
Key Features
- Superspeed 20Gbps: USB 3.2 Gen 2x2 performance ideal for file transfers and high-speed USB peripherals.
- Alt-Mode Support: Enables 4K60 10bit 4:4:4 or RGB video transmission from USB-C laptops and mobile devices.
- Power Delivery: Delivers up to 100W (20V/5A) for device charging while in use.
- Durable Construction: Aluminum connector heads and thick PVC jacket for extended life and resistance to kinks.
Technical Specifications
Audio & Video
- Max Video Resolutions:
- 1920x1080p @ 240Hz
- 4096x2160p @ 60Hz 4:4:4 10bit
- 4096x2160p @ 60Hz RGB
- Audio: 2ch PCM
- Standards Supported: RGB, USB Superspeed, USB Alt-Mode
Communication & Control
- USB: USB 3.2 Gen 2x2, Superspeed 20Gbps
Power
- Power Supply: 20V 5A (100W)
Environmental
- Operating Temperature: 14°F ~ 158°F (-10°C ~ 70°C), 0% ~ 85% non-condensing
- Storage Temperature: -40°F ~ 185°F (-40°C ~ 85°C), 0% ~ 85% non-condensing
Dimensions & Weight
- Lengths Available: 1M (3FT), 2M (6FT)
- Weight: 1M: 0.043kg / 0.09lbs | 2M: 0.066kg / 0.15lbs
Regulatory
- Certifications: CE, FCC, RoHS, RCM, EAC
