Top-Quality 4K HDMI Matrix Systems
SKU: MX-0404-HDMI

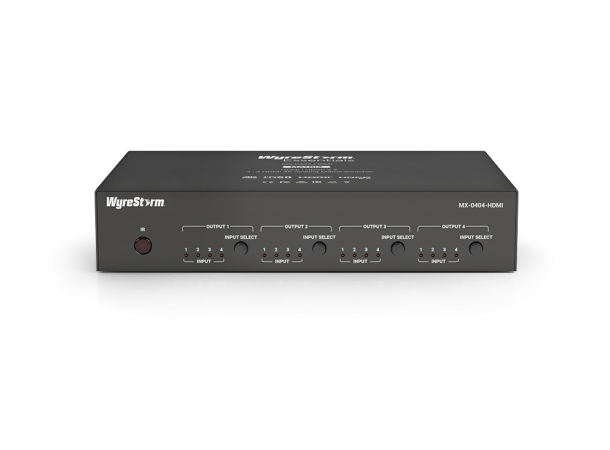

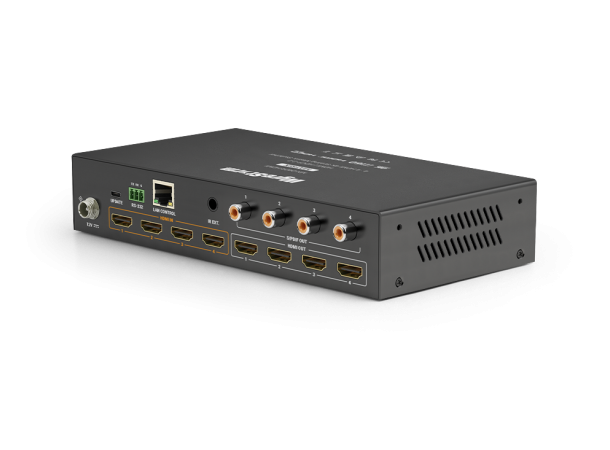

The WyreStorm MX-0404-HDMI is a compact, high-performance 18Gbps matrix switcher that routes up to four 4K HDR HDMI sources to four 4K HDR displays. Its built-in 4K to 1080p downscalers and audio de-embedding features make it perfect for professional installations.
Key Features
- Automatic Scaling Outputs: Seamlessly downscale 4K to 1080p per output while keeping source resolution intact.
- Automatic & Time Delay CEC: Auto-power on/off screens when source is connected/disconnected, with custom delay.
- Professional Design: Compact chassis with rack and wall-mount brackets for easy installation.
- HDMI 2.0 Maxed: Full 18Gbps bandwidth, supporting HDR10, Dolby Vision, DTS:X, and Dolby Atmos.
Technical Specifications
Audio & Video

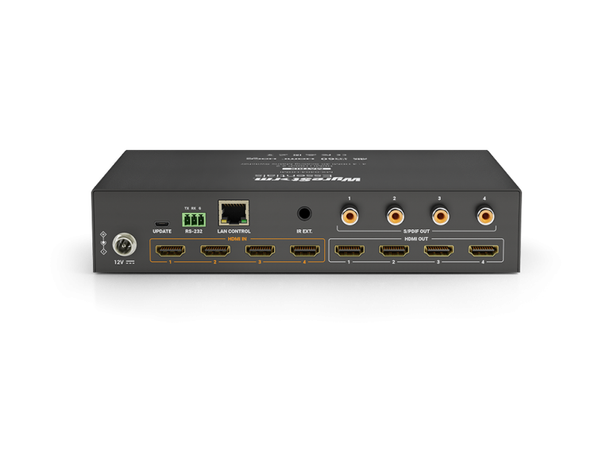

- Inputs: 4x HDMI In (19-pin type A)
- Outputs:
- 4x HDMI Out (19-pin type A)
- 4x S/PDIF Coaxial
- 1x IR Extension
- Audio Formats:
- HDMI: 2ch PCM, LPCM, up to DTS-X and Dolby Atmos
- Coaxial: 5.1ch surround sound
- Video Resolution (Max):
- 1920x1080p @60Hz 16bit
- 3840x2160p @60Hz 10bit 4:2:0 HDR
- 4096x2160p @60Hz 8bit 4:4:4
- Supported Standards: DCI, RGB, HDR10, Dolby Vision (up to 30Hz), HLG, BT.2020, BT.2100
- Max Pixel Clock: 600MHz
Communication & Control
- HDMI: HDCP 2.2, DVI-D supported with adapter
- RS-232: 1x 3-Pin Terminal Block (Telnet supported)
- IR: Front Panel Sensor, IR Ext 3.5mm TRS (Matrix Control)
- Ethernet: 1x RJ-45 (10/100 Mbps, Web UI, IP Control)
Power
- Power Supply: 12V DC 2A
- Max Power Consumption: 10W
Additional Features
- Routes four 4K HDR HDMI sources to four 4K HDR displays
- Each output supports 4K to 1080p downscaling
- Full support for 4K@60Hz 4:4:4, HDR10, Dolby Vision, and HDCP 2.2
- Supports coaxial S/PDIF audio de-embedding from all outputs
- Control via IR, buttons, RS-232, LAN, and WebUI
- Timed CEC triggers for smart screen control
- Enhanced WebUI and API for switching, audio mute, CEC, EDID and more
- 12-bit Deep Color, Lip Sync, and lossless HD audio passthrough
In the Box
- 1x MX-0404-HDMI Matrix
- 1x IR Remote Handset
- 1x IR Receiver
- 1x Power Supply 12V 2A (US/UK/EU/AU)
- 2x Rack Mounting Brackets
- 2x Wall Mounting Brackets
- 1x 3-pin Terminal Block
