SKU: MX-0812-SCL

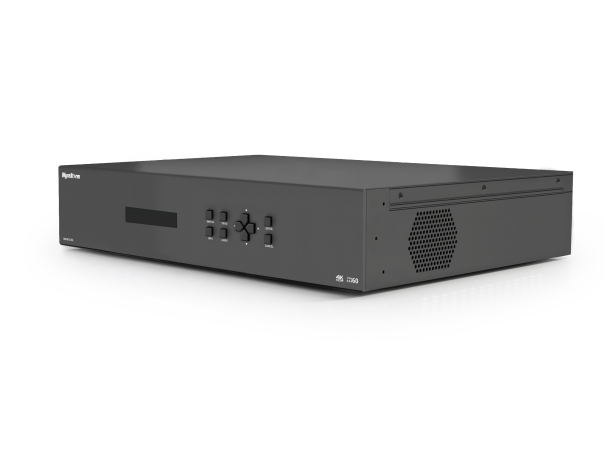

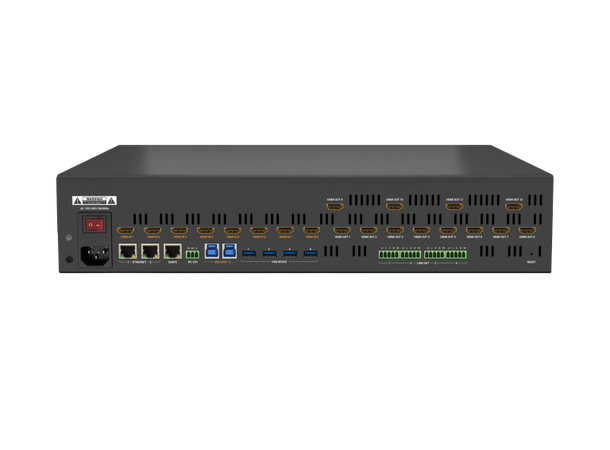

The MX-0812-SCL is an HDMI matrix switcher featuring 8 HDMI inputs and 12 outputs, each capable of handling 4K60 video, with advanced scaling for each output. It includes video processing capabilities for video walls, such as cropping, bezel correction, and the ability to rotate images, as well as multiview options like Picture-in-Picture and Quad view. Designed for various applications, it offers seamless switching, video wall control, and multiview functions (coming in an update), alongside comprehensive audio support through HDMI de-embedding, analog, and Dante audio connections.

Key Features

• Connectivity & Scalability: 8 HDMI inputs and 12 HDMI outputs with 4K60 support and built-in scalers.
• Advanced Video Processing: Video wall processing, rotation (90°, 180°, 270°), cropping, bezel correction, and mirrored multiview across HDMI 1–4 with various layouts.
• Flexibility: Three working modes: seamless matrix, video wall controller, and multiview switcher with support for vertical/horizontal screen orientations.
• Independent Audio & Dante: HDMI audio de-embedding, 4 analog outputs, 4 Dante inputs and outputs, and audio matrix switching between any input and output.

Technical Specifications

Audio & Video

• Inputs: 8 x HDMI, 4 x Dante
• Outputs: 12 x HDMI, 4 x Dante, 4 x Analog Audio
• Video Encoding: Uncompressed 18Gbps
• Audio Formats: HDMI 2.0 Compliant
• Max Video Resolutions:
  • 1920x1080p @60Hz 16bit (7m)
  • 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+ (5m)
  • 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision (5m)
  • 3840x2160p @50Hz 10bit 4:2:2 HLG (5m)
  • 4096x2160p @60Hz 8bit 4:4:4 (5m)
• Supported Standards: DCI, RGB, HDR10, HDR10+, Dolby Vision, HLG, BT.2020
• Max Pixel Clock: 600MHz

Communication & Control

• HDMI: HDMI 2.0, HDCP 2.2/2.3, EDID, CEC
• RS-232: 1 x 3-pin Phoenix
• LAN: 1 x RJ-45 for API/WebUI (Telnet, TLS, HTTP/HTTPS)
• Reset: API, WebUI, or pin-hole button

Power

• Supply: AC 100–240V
• Max Power Consumption: TBD

Dimensions & Weight

• Rack Units: 2U
• Width: 19 Inch
• Weight: TBD

Additional Features

• Seamless 8x12 Scaling Matrix
• Video Wall & Multiview support
• Independent audio routing
• 4×4 Dante audio integration

In the Box

• 1x MX-0812-SCL Matrix
• 1x AC Power Cord (US/UK/EU/AU)
• 1x 3.5mm 3-Pin Phoenix Connector
• 4x 3.5mm 5-Pin Phoenix Connectors
• 2x Mounting Brackets (with Screws)
• 1x Quickstart Guide
