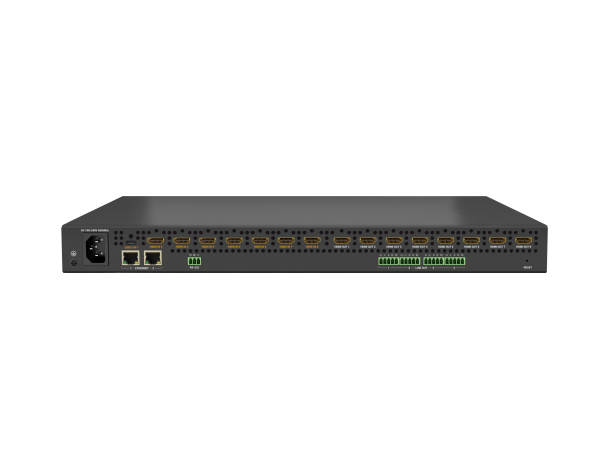

4K60 8×8 Seamless Scaling HDMI Matrix with USB-C Support
SKU: MX-0808-SCL
The MX-0808-SCL is a sophisticated HDMI matrix switcher designed for fast Seamless switching. Perfectly suited for professional environments such as corporate training rooms, hotel meeting spaces, and academic classrooms, this device boasts an integrated 4K60 scaler on each HDMI output, scaling from 480p to 2160p. Additionally, it features a comprehensive USB-C input, delivering support for 4K60 video, a 1GbE passthrough network connection, and PD3.0 USB host charging up to 60 watts, ensuring compatibility and ease of use across a variety of devices and setups.
Key Features
- 4K60Hz Seamless Switching: Seamless fast switching up to 4K60 across all video inputs and outputs with less than 50ms delay. Ensures high-quality presentations without disruptions.
- Advanced Video Processing: Automatic video input/output detection and built-in scalers optimize image quality on all connected displays.
- Independent Audio Switching: Enables separate routing of de-embedded audio from HDMI to balanced outputs, supporting customized audio setups.
Technical Specifications
Audio & Video
- Inputs: 1 x USB-C, 7 x HDMI
- Outputs: 8 x HDMI, 4 x 4-Pin Audio
- Video Encoding: Uncompressed 18Gbps
- Audio Formats: 2ch PCM, LPCM, DTS-X, Dolby Atmos
- Max Resolution:
- 1920x1080p @60Hz 16bit
- 3840x2160p @60Hz 10bit 4:2:2 HDR10/10+
- 3840x2160p @60Hz 12bit 4:2:0 Dolby Vision
- 3840x2160p @50Hz 10bit 4:2:2 HLG
- 4096x2160p @60Hz 8bit 4:4:4
- Standards: DCI, RGB, HDR10, HDR10+, Dolby Vision, HLG, BT.2021
- Max Pixel Clock: 600MHz
Communication & Control
- HDMI: HDMI 2.0, HDCP 2.2/2.3, EDID, CEC
- RS-232: 1 x 3-pin Phoenix
- LAN: 1 x 8-pin RJ-45 (API control via Telnet, TLS, HTTP/HTTPS)
- Reset: Via API, WebUI, or pin-hole button
Power
- Supply: AC 100V–240V
- Max Consumption: TBD
