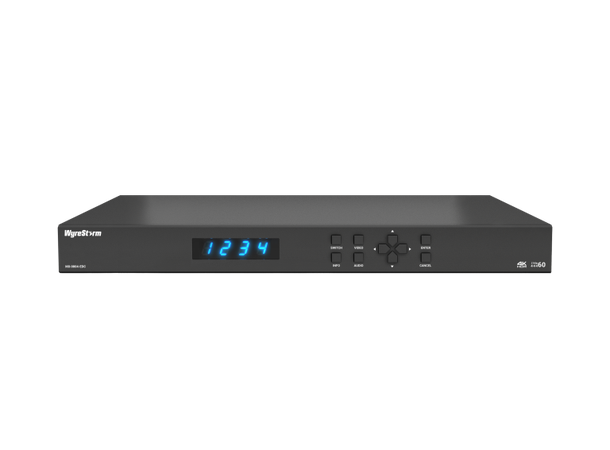

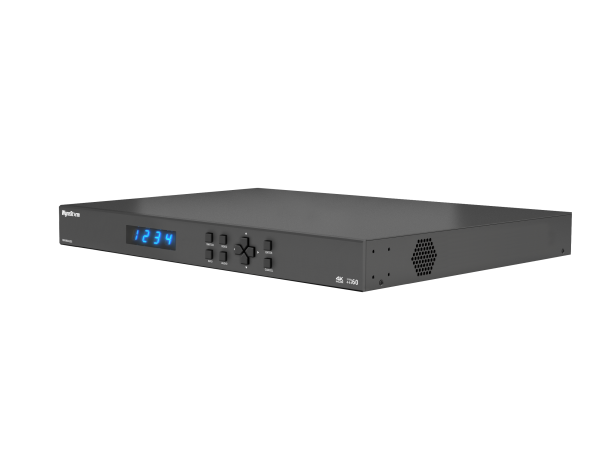

8×4 Seamless Matrix Switch for Presentation Systems with USB-C, HDMI, Audio DSP, and Dante

SKU: MX-0804-EDC

Discover the MX-0804-EDC, a compact 1RU 8×4 fast switching matrix designed to redefine connectivity in professional environments. Perfect for high-education classrooms and corporate meeting rooms, this cutting-edge matrix brings seamless transitions, versatile audio options, and intuitive control at your fingertips.

Key Features

• 4K60Hz Seamless Switching: Effortlessly transition between video inputs with crystal-clear visuals. The built-in 4K60 scaler ensures a smooth, uninterrupted visual experience.
• Full-featured USB-C Input: Supports 4K@60Hz, USB 3.1 Gen1, 1G network, and PD 3.0 charging up to 60W.
• Versatile Audio Connections and DSP: Includes analog microphone inputs, Dante 4×4 digital I/O, USB audio, and line audio outputs with integrated DSP, independent mixers, and ducking.
• Sygma Cloud Device Management: Enables remote device monitoring, control, firmware updates, and support.

Technical Specifications

Audio & Video

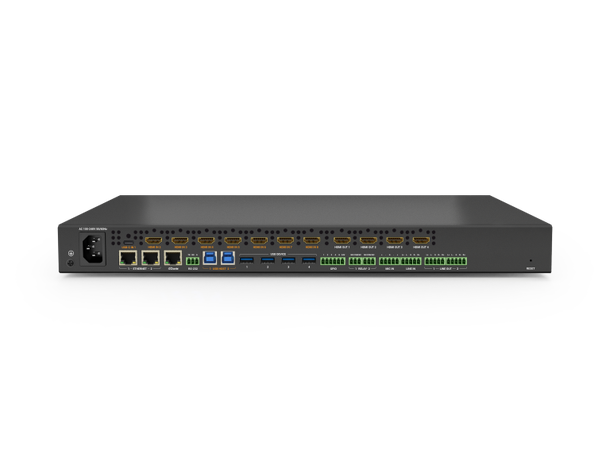

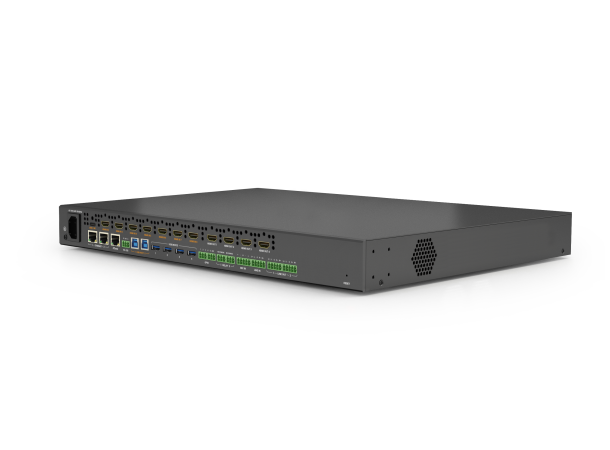

• Inputs: 1x USB-C In with Alt-Mode, 7x HDMI In (19-pin type A), 2x USB-B Host, 2x Mic In, 1x Line-In
• Outputs: 4x HDMI Out (19-pin type A), 4x USB-A Device, 1x GPIO Phoenix Port, 2x Relay Phoenix Port, 2x Line-Out
• Audio Formats: PCM 2ch Analog, Dante 4×4
• Video Resolution (Max): 3840×2160 @60Hz 4:4:4
• Max Pixel Clock: 600MHz

Communication & Control

• HDMI: HDMI 2.0, HDCP 2.3, EDID, CEC
• Dante Ultimo 4×4: 1x 1GbE RJ-45
• RS-232: 1x RS-232 (3-pin Phoenix Female), Telnet supported
• Ethernet: 2x LAN (8-pin RJ-45 Female), Web UI, Matrix Control, and Ethernet (Sygma)

Power

• Power Supply: 100~240V AC 50/60Hz
• Max Power Consumption: 124W

Environmental

• Operating Temperature: 0 to +45°C, 10% to 90%, non-condensing
• Storage Temperature: -20 to +70°C, 10% to 90%, non-condensing

Dimensions & Weight

• Rack Units: 1U
• Height: 43mm / 1.7in
• Width: 440mm / 17.33in
• Depth: 330mm / 12.99in
• Weight: 3.8kg / 8.38lbs

Regulatory

• Supported Standards: DCI (4096×2160), RGB, HDR, HDR10, Dolby Vision, HLG, BT.2020

Additional Features

• Multi-format video connections include USB-C and HDMI
• Sygma Cloud Monitoring Ready
• Each output supports fast switching and 480p–2160p scaling
• USB-C input supports 4K60 video, USB 3.0/2.0, 1G network, and PD3.0 60W charging

In the Box

• 1x MX-0804-EDC Matrix
• 1x AC Power Cord (US/UK/EU/AU)
• 1x 2m USB-C Cable
• 3x 3-Pin Terminal Block
• 4x 5-Pin Terminal Block
• 1x 6-Pin Terminal Block
• 2x Mounting Brackets with screws
• 1x Quickstart Guide
