Premium HDMI Matrix Switch Solutions
SKU: MX-0402-MST

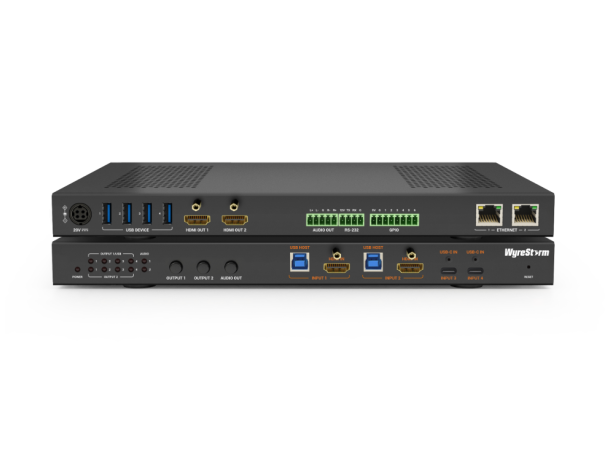

The MX-0402-MST Conference Presentation Switcher is the ultimate solution for modern conference rooms. Designed to simplify and enhance your presentation experience, this 4×2 switcher integrates video, audio, USB, control, and Ethernet functionalities. With dual USB-C and dual HDMI inputs, automatic switching capabilities, and advanced USB 3.2 ports, the MX-0402-MST ensures seamless connectivity and control for all your conference needs.
Key Features
- Comprehensive Input Options: Dual USB-C and HDMI inputs with secure cable lock support.
- Advanced USB-C Integration: Supports 4K video, USB 3.2 data transfer, 60W charging, and dual video output.
- Flexible Switching: Automatic, priority, and independent USB/video switching modes.
- Robust Connectivity & Control: USB 3.2 ports, audio de-embedding, RS232, GPIO, and Ethernet with VLAN support.
- High Performance: 4K@60Hz 4:4:4 video, advanced audio format support, HDR, and firmware updates via Web UI.
Technical Specifications
Audio & Video

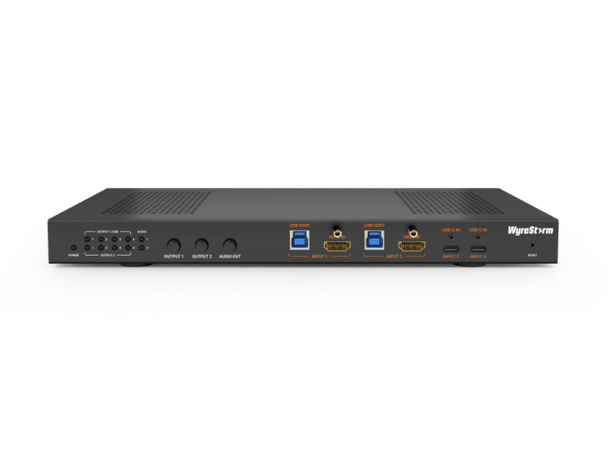

- Inputs: 2x HDMI (19-pin), 2x USB-C

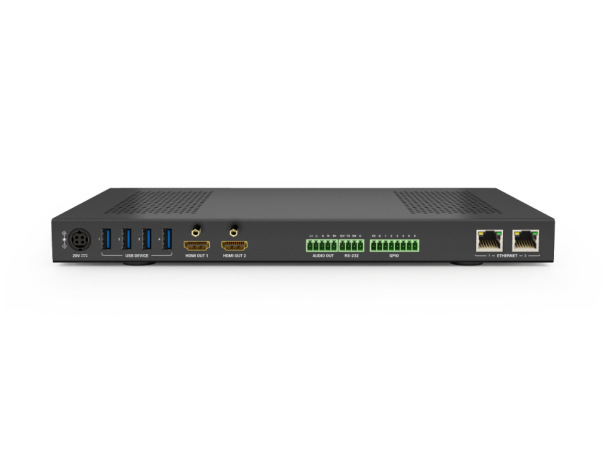

- Outputs: 2x HDMI (19-pin), 1x Analog Audio Out (5-pin Phoenix)
- Output Encoding: HDMI 18Gbps
- Audio Formats: Up to 7.1ch (including Dolby and DTS formats); Analog: 2ch PCM
- Max Resolution: 3840x2160p @60Hz 4:4:4 8bit
- Data Rate: USB-C: 5Gbps/lane, HDMI: 18Gbps, USB 3.2: 5Gbps
- HDR: HDR10, HLG, HDR10+, Dolby Vision
- Standards: DCI, RGB
- Max Pixel Clock: 600MHz
Power
- Power Supply: 20V
- Max Power Consumption: Approx. 150W (with peripherals & USB-C charging)
In the Box
- 1x MX-0402-MST
- 1x 20V/10A DC Power Adapter
- 2x USB-C 2m Cables
- 2x USB 3.0 A to B 1.8m Cables
- 4x Mounting Brackets
- 4x Bracket Screws
- 1x 5-pin Phoenix Connector
- 1x 3-pin Phoenix Connector
- 1x 8-pin Phoenix Connector
- 1x Quickstart Guide
