SKU: SW-220-TX-W

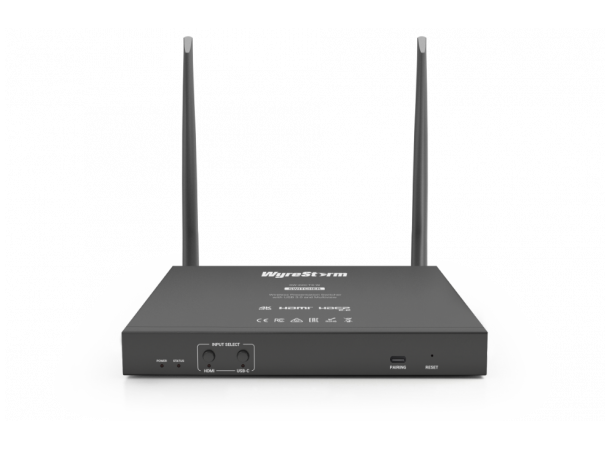

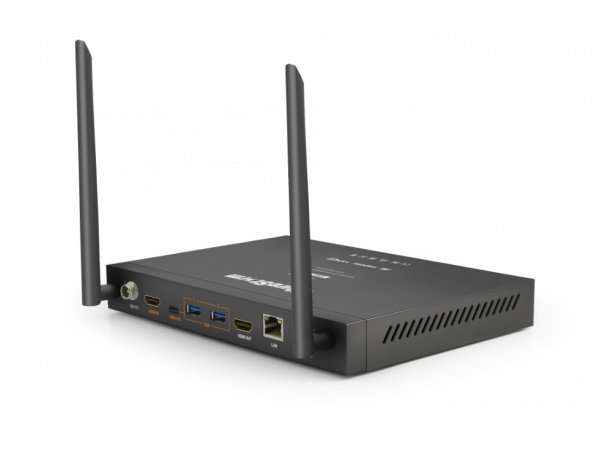

The SW-220-TX-W is an ideal wireless presentation switcher for huddle spaces and small meeting rooms. It features USB-C and HDMI inputs along with native wireless casting via AirPlay and Miracast, enabling users to present content from a variety of devices with ease.
Key Features
- Tailored for Education: Compact and cost-effective, ideal for BYOD classroom environments without complex setup.
- Corporate Ready: Enables flexible presentations from any participant in small meeting rooms.
- Wireless Casting: Supports Apple AirPlay and Miracast for screen sharing from laptops, tablets, and smartphones.
- Dual-View: Displays two source devices at the same time, wired or wireless, to enhance collaboration.
- USB-C Dongle Support: Compatible with the Apollo APO-DG1 dongle for instant plug-and-play connectivity.
- USB 3.0 Hub: Built-in hub supports peripherals like 4K webcams and speakerphones.
Technical Specifications
Audio & Video

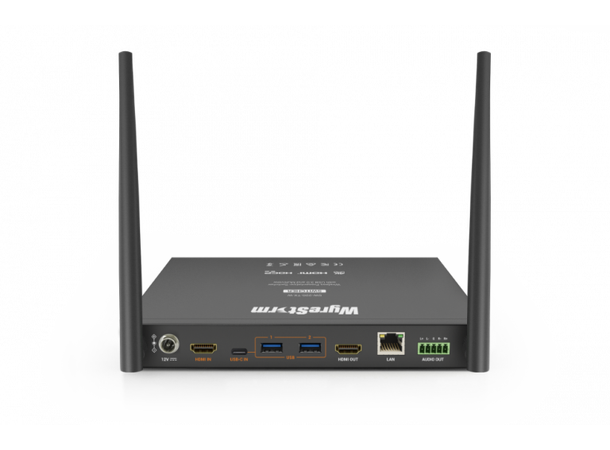

- Inputs: 1x HDMI, 1x USB-C, Wireless (AirPlay, Miracast, APO-DG1)
- Outputs: 1x HDMI Out, 1x Audio Out (5-pin Balanced Phoenix)
- Max Video Resolution: Wireless: 1920x1080p @30Hz, HDMI & USB-C: 3840×2160 @30Hz 4:4:4 8bit
- Video Encoding: Uncompressed HDMI
- HDMI Bandwidth: 10.2Gbps
- Audio Formats: 2ch PCM
- Supported Standards: DCI, RGB
- Max Pixel Clock: 300MHz
Communication & Control
- HDMI: HDMI 1.4, HDCP 1.4, EDID, CEC
- USB: 2x USB 3.2 Gen1 Type A (5v 1A & 500mA), 1x USB 3.2 Gen2 Type C Host
- Ethernet: 1x RJ-45 (API Control & WebUI)
- Wireless: 2x Wi-Fi Antennas, Dual-band 2.4 & 5GHz, WPA/WPA2, AES
Power
- Power Supply: 12V DC 2A
- Power Consumption: 12W
In the Box
- 1x SW-220-TX-W
- 1x 12V DC Power Supply (UK/US/EU/AU)
- 1x 5-pin Terminal Block
- 2x Mounting Brackets with Screws
- 1x Quickstart Guide
