80m KVM UTP Extender

SKU: EX-80-KVM

The WyreStorm EX-80-KVM is a plug-and-play HDMI and KVM extender, capable of sending 1080p@60Hz video and USB HID up to 80 meters over a single CAT5e/6 cable. It features bidirectional Power Over Cable (PoC) for powering either the transmitter or receiver with one adapter, making installations simple and efficient—ideal for extending video and USB peripherals in office, home, or presentation environments.

Key Features

• USB 2.0 Passthrough: Full-speed USB 2.0 support for keyboards, mice, webcams, and other peripherals up to 480Mbps.
• Bidirectional PoC: Power either the transmitter or receiver with just one adapter.
• HDCP Compliant: Maintains HDCP encryption end-to-end.
• Compact Design: Small chassis for discreet, space-efficient installations.

Technical Specifications

• Inputs:

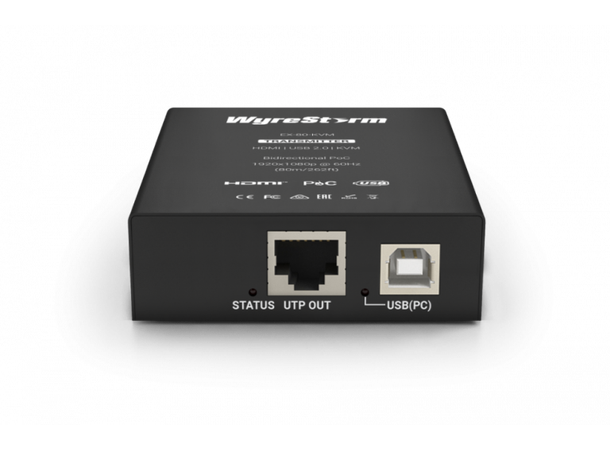

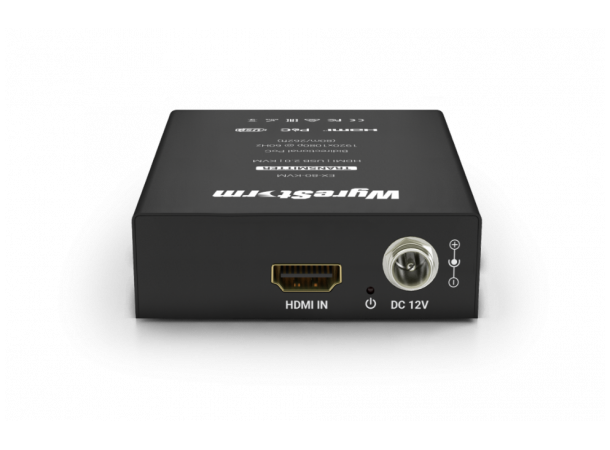

  • TX: 1x HDMI In (Type A), 1x USB Type B

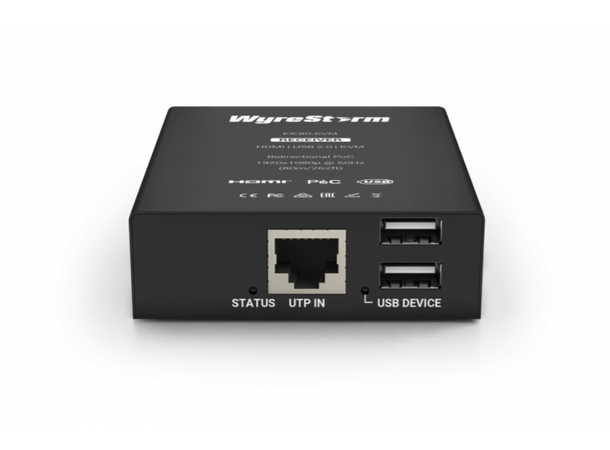

  • RX: 1x UTP In (RJ-45), 2x USB Type A
• Outputs:
  • TX: 1x UTP Out (RJ-45)

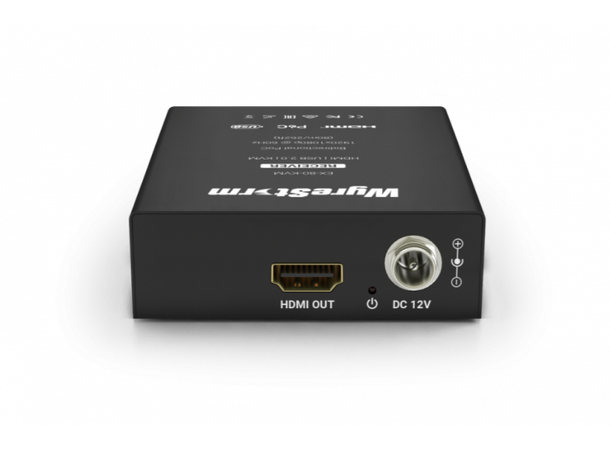

  • RX: 1x HDMI Out (Type A)
• Video Encoding: UTP
• Encoding Data Rate: 6.75Gbps
• End-to-End Latency: 10µs
• Max Video Resolution: 1920x1080p @60Hz 12bit
• Audio Formats: 2ch PCM, Multichannel up to DTS-X and Dolby Atmos
• Supported Standards: DCI, RGB
• Max Pixel Clock: 225MHz

Communication & Control

• HDMI: HDMI 1.3b, HDCP 1.4, EDID, DVI-D (with adapter)
• UTP: HDMI 1.3b, HDCP 1.4, EDID, 2-way PoC
• USB: 1x Type B (host), 2x Type A (device); 480Mbps max speed up to 60m via Cat6

Power

• Power Supply: 12V 2A
• PoC: IEEE 802.3af 48V 15.4W Max (2-way)
• Max Power Consumption: 3.6W (per unit)

Additional Features

• Full HD video transmission up to 80m (262ft)
• Supports HID up to 80m and USB 2.0 peripherals up to 60m
• Small form factor for discreet installation
• Plug and play setup—no configuration required

In the Box

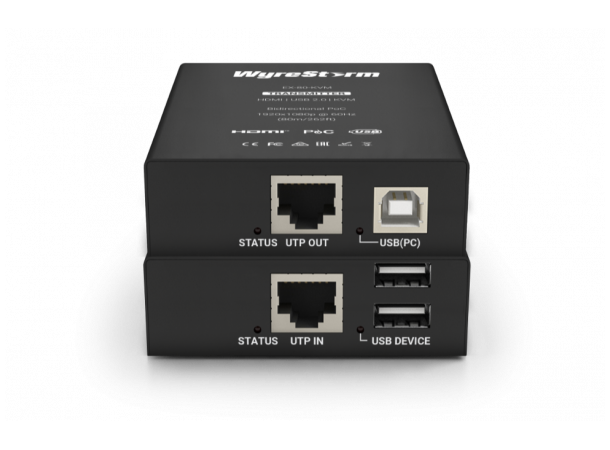

• 1x EX-80-KVM Transmitter
• 1x EX-80-KVM Receiver
• 1x 12V DC 2A Power Supply (US/UK/EU/AU)
• 1x USB Type B to Type A Cable
• 4x Mounting Brackets
