35m 4K60 HDBaseT Extender

SKU: EX-35-H2

Overview

The EX-35-H2 is part of WyreStorm’s latest generation of 4K extenders, built to support high frame rate HDR content. It features VLC (Visually Lossless Compression) to transmit 4K60 4:4:4 and HDR content over HDBaseT up to 35 meters without latency.

Key Features

• Supports HDMI 2.0 full bandwidth up to 18Gbps
• Transmits 4K HDR content (including HDR10, HLG, Dolby Vision)
• Signal re-clocking for improved compatibility
• Flexible 2-way PoH power options
• Visually lossless compression (VLC)

Technical Specifications

Audio & Video

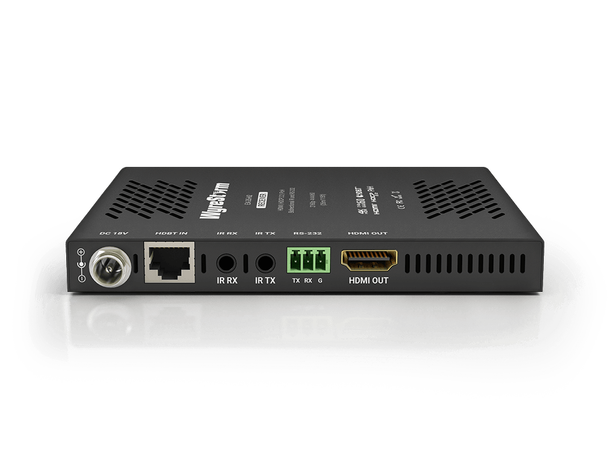

• Inputs: TX: 1x HDMI | RX: 1x HDBaseT (RJ-45)
• Outputs: TX: 1x HDBaseT | RX: 1x HDMI
• Video Encoding: HDBaseT Class A
• Max Resolution: 4K60Hz 4:4:4 / HDR formats
• Audio: 2ch PCM and up to DTS-X/Dolby Atmos

Communication & Control

• HDMI 2.0 | HDCP 2.2 | EDID | CEC Pass-through
• IR: Bidirectional over HDBaseT
• RS-232: Bidirectional over HDBaseT (3-pin Phoenix)

Power

• Power Supply: 18V DC 1A
• PoH: 48V 15.4W
• Max Consumption: 8.88W

Additional Features

• Low-profile 15mm chassis
• Automatic feedback, EQ, and amplification
• Wide compatibility with UHD sources
• Supports IEEE-568B cable termination

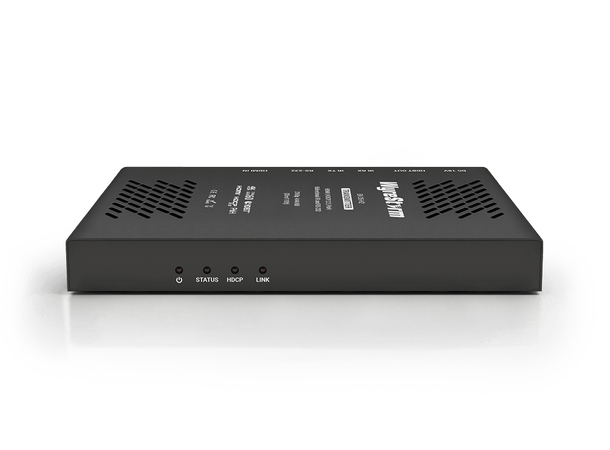

• Visual indicators for power, signal, and HDCP status

In the Box

• 1x EX-35-H2 Transmitter
• 1x EX-35-H2 Receiver
• 1x 18V DC 1A Power Supply (US/UK/EU)
• 2x 3-pin Phoenix Connectors
• 1x IR Emitter
• 1x IR Receiver
• 4x Mounting Brackets
• 1x Quickstart Guide
