The TX-35-IW provides simple transmission of remote HDMI sources. Pair it with the RX-35-POH for effective 4K UHD signal extension. This transmitter uses standard HDBaseT and PoH technology, making it compatible with various WyreStorm models like presentation receivers and H2XC matrix switchers. Ideal for training rooms, classrooms, or huddle spaces, it can be powered remotely and supports IR and RS-232 passthrough for flexible control.

Main Features

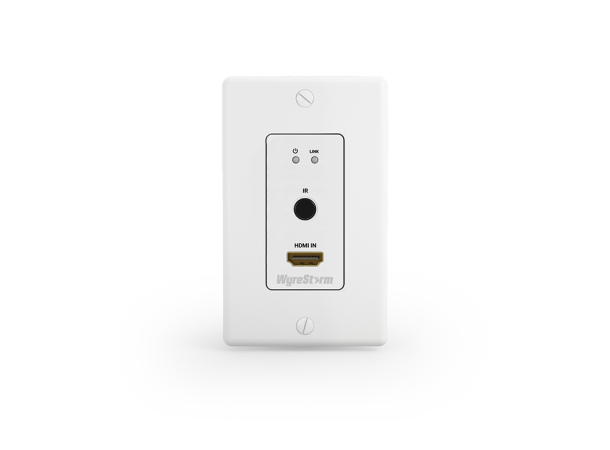

• Small Footprint: Installs in a standard 1-Gang US wall box, offering a clean, professional look.
• Cost Effective: Transmits HDMI, control signals, and power over a single category cable – no extras needed.
• PoH (Power over HDBaseT): Can be powered directly from a compatible receiver to reduce clutter.
• Versatility: Compatible with various receivers and switchers, including the SW-515-RX and MX-H2XC.

Technical Specifications

Audio & Video

• Inputs: 1x HDMI
• Outputs: 1x HDBaseT Class B
• Output Video Encoding: UTP
• Max Sampling Rate: 192kHz
• Supported Audio: 2ch PCM, Multichannel LPCM, DTS:X, Dolby Atmos
• Max Video Resolutions:
  • 1920x1080p @60Hz
  • 3840x2160p @30Hz 8bit 4:2:0
  • 3840x2160p @24Hz 10bit 4:2:0 HDR
  • 4096x2160p @60Hz 8bit 4:2:0
• Standards: DCI, RGB
• Max Pixel Clock: 297MHz

Communication & Control

• HDMI: HDMI 1.4 | HDCP 1.4 | EDID Pass-through

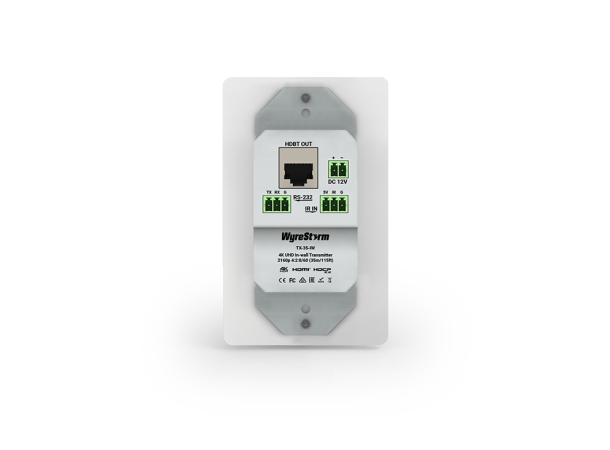

• IR: Front panel window & rear 3-pin Phoenix
• RS-232: 1x 3-pin Phoenix, bi-directional passthrough

Power

• Power Supply: PoH or 12V DC 1A (sold separately)
• PoH: Supported, 1-way from RX
• Max Power Consumption: 7.8W
• Local Power Input: 2-pin Phoenix

Additional Features

• Reliable 4K/HD HDMI extension from a 1-Gang US decora wall plate via HDBaseT
• Class B HDBaseT supports 4K up to 35m (115ft)
• Optional 12V phoenix input for local power
• Built-in IR receiver and rear IR connection
• RS-232 passthrough via 3-pin Phoenix
• Automatic EDID management
• HDCP 2.2 compatible
• Front panel LEDs indicate HDCP status and transmission link
• Complies with IEEE-568B standards
• Discreet, compact design for professional installs

In the Box

• 1x 2-pin Phoenix Male Connector
• 2x 3-pin Phoenix Male Connectors
• 1x 1-Gang Decora Wall Plate
• 1x Quickstart Guide
• Device powers via PoH (12V 2A DC PSU sold separately)
