Ubiquiti UniF Wifi 7 PRO
2.5 GbE uplink | 9.3 Gbps

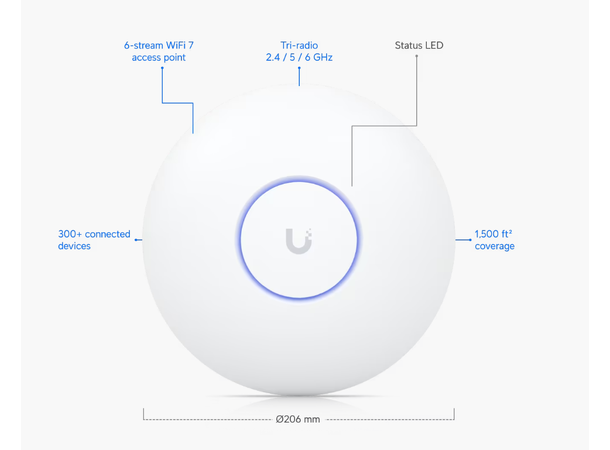

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Specifications
|
Mechanical
|
|

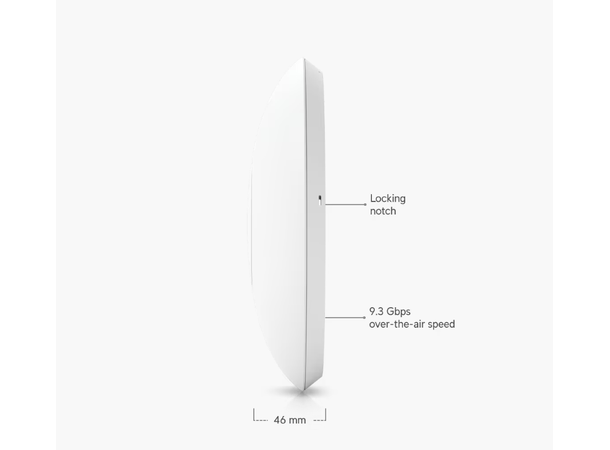

| Dimensions |
Ø206
x 46 mm (Ø8.1 x 1.8") |
| Weight |
680 g
(1.5 lb) |
| Enclosure material |
Polycarbonate,
metal |
| Mount material |
Stainless
steel (SUS304), galvanized steel (SGCC) |
|
Hardware
|
|

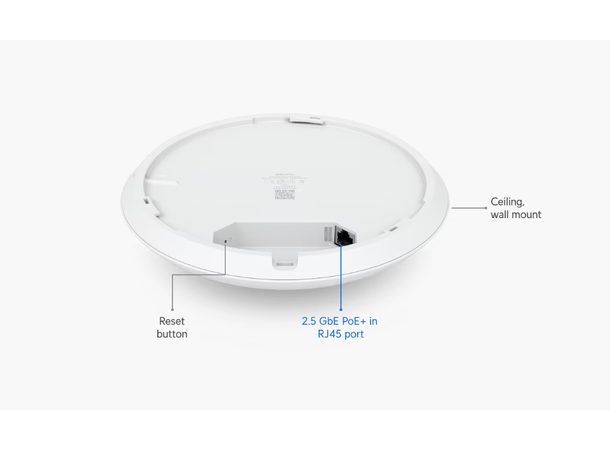

| Networking interface |
(1)
1/2.5 GbE RJ45 port |
| Management interface |
Ethernet |
| Power method |
PoE+ |
| Power supply |
UniFi
PoE switch |
| Supported voltage range |
44—57V
DC |
| Max. power consumption |
21W |
|
|
|
Max. TX power
|
|
| 2.4 GHz |
22
dBm |
| 5 GHz |
26 dBm |
| 6 GHz |
23 dBm |
|
MIMO
|
|
| 2.4 GHz |
2 x 2 |
| 5 GHz |
2 x 2 |
| 6 GHz |
2 x 2 |
|
|
|
Throughput rate
|
|
| 2.4 GHz |
688
Mbps |
| 5 GHz |
2882 Mbps |
| 6 GHz |
5765 Mbps |
|
|
|
Antenna gain
|
|
| 2.4 GHz |
4 dBi |
| 5 GHz |
6 dBi |
| 6 GHz |
5.8 dBi |
| LEDs |
White/blue |
| Button |
Factory
reset |
| Mounting |
Wall/ceiling
(Included) |
| Operating temperature |
-30
to 60° C (-22 to 140° F) |
| Operating humidity |
5 to
95% noncondensing |
| Certifications |
CE,
FCC, IC |
|
|
|
Software
|
|
| WiFi standards |
802.11a/b/g/n/ac/ax/be |
| Wireless security |
WPA-PSK,
WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| BSSID |
8 per
radio |
| VLAN |
802.1Q |
| Advanced QoS |
Per-user
rate limiting |
| Guest traffic isolation |
Supported |
| Concurrent clients |
300+ |
Deployment
In the box
