Dante Bluetooth Wallplates
SKU - TAV-BTWPEU-BLACK
Dante Bluetooth Wallplate, EU Wall Box, Black.
Top Features:
? Two channel Bluetooth audio to two channel Dante digital audio
? Bluetooth V5.0, SBC/AAC/APTX/APTX-LL/APTX-HD, up to 192kHz@24bit
? Volume adjustment over Bluetooth
? Playback controls over Bluetooth
? WebUI and API over IP
? Dante audio sampling rate up to 96kHz@24bit
? Configurable Dante latency with support for 2, 3, 5 or 10 milliseconds
? PoE and 12V DC power options
? US 1-Gang Decora and EU Wall box
? White and Black options
? TAA compliant
? 5 year warranty
Bluetooth to Dante Wallplate.
This architectural interface enables professional Bluetooth integration into Dante audio
networks, accommodating both US 1-Gang Decora and standard EU Wall Box form factors.
Beyond high-fidelity audio conversion, the device features a comprehensive networked API
that grants control systems full command over connection states, including programmable
discovery, pairing authorization, and forced disconnection. The API supports bidirectional
control for playback management and provides real-time metadata extraction for artist and
track information. Available in black or white finishes, this wallplate delivers a managed,
secure, and beautiful endpoint for commercial audio installations.
Bluetooth. Dante. Installed.
Fits the infrastructure you already have. Available in US 1-Gang Decora or standard EU Wall
Box options, this professional hardware is designed to disappear into the wall and integrate
seamlessly with your Dante network.
Bluetooth. Dante. Controlled.
Built API-first. A fully managed Dante endpoint on your network. The open API gives your
control system total command over the device, from handshake to stream with control over
playback, volume, pairing, and clearing connected devices.
Bluetooth. Dante. Connect.
Manage the handshake programmatically. Trigger discovery mode, authorize new devices,
or drop a connection the moment the user leaves the room. You decide who connects, and
when.
Bluetooth. Dante. Live.
Spotify, Apple Music, Tidal, YouTube Music. It doesn’t matter. Map transport controls like
Play, Pause, and Skip directly to your touch panels or keypads. Drive the audio without ever
asking the user to unlock their phone.
Bluetooth. Dante. Displayed.
Context is key. Use real-time metadata to pull artist names, song titles, and album info. If it’s
playing on the device, it can be mapped to your interface.

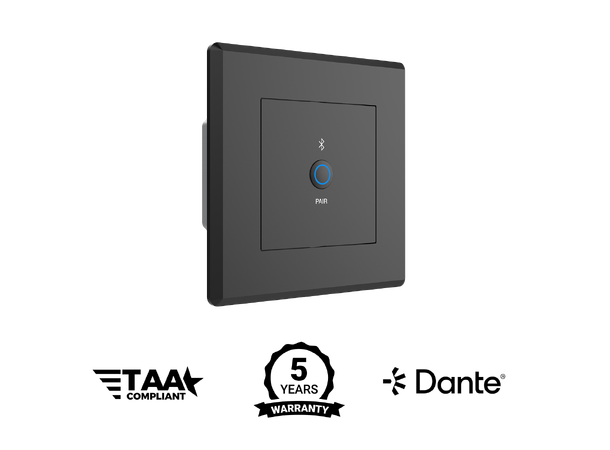

Bluetooth. Dante. In Black & White.
Available in Black and White. Two finishes that match the architecture. Simple.
??100% Dante Software compatible.
Turtle AV Dante Wallplates are fully compatible with Dante Controller, Dante Domain
Manager, and all Dante software applications.
DSP control via WebGUI
The built-in DSP WebGUI makes managing your Dante Wall Plate super easy and delivers
even more value to this little powerhouse. With the WebGUI, every feature is at your
command.
? Configure Audio Precisely
Adjust output settings, manage EQ profiles, and control audio delay for Analogue
and Dante outputs.
? Save and Recall Presets
Create up to 5 customizable presets for quick scene changes, perfect for dynamic
setups.
? Monitor and Manage Network Settings
Switch between DHCP and Static IP modes, configure Telnet ports, and use the
domain name for quick access.
? Advanced System Utilities
Modify passwords, reboot the system, update firmware, and export/import settings
with ease.
? Streamlined Setup
Control everything from input sources to auto-standby times, all through an easy-to-
use interface.
Audio stuff.
This Wall Plate delivers high-quality two-channel Bluetooth audio to Dante® 2CH digital
audio, supporting Bluetooth V5.0 with advanced codecs like SBC, AAC, APTX, APTX-LL, and
APTX-HD, offering audio up to 24-bit/192kHz. The Dante audio output is sampled up to 24-
bit/96kHz, ensuring clear, professional-grade sound. With configurable Dante audio delay
options of 2, 3, 5 or 10 milliseconds providing precise timing and low-latency performance.
TAA Compliant.
Turtle AV products sold in the USA are TAA compliant, meeting U.S. government standards
for procurement. This ensures they can be confidently used in federal contracts, adhering to
strict ethical sourcing and manufacturing regulations.
5 Year Warranty with Advance Replacement.
Turtle proudly offers a 5 Year warranty on our Dante Bluetooth Wallplates. Warranty is 5
years from date of purchase and we are also proud to offer a no hassle advance
replacement warranty on all our products.
