USB-C 4K60 4:4:4 & USB 2.0 Extender
Includes Host & Device Extenders.
SKU - TAV-USBKIT2
USB and 4K60 video. From here to over there.
The Turtle AV USB Extender Kit pushes the boundaries of connectivity, delivering high-speed USB and uncompressed 4K60 video in a single, compact solution. Whether it’s a full-scale AV install or smaller BYOD meeting spaces, this kit has you covered:
- 4K60 (4:4:4 8bit) video and USB 2.0 signals up to 130 feet / 40 metres
- 4K30 (4:4:4 8bit) video and USB 2.0 signals up to 230 feet / 70 metres
- High Dynamic Range pass through
- 100W USB-C PD port for charging
- Power over Cable (PoC) for simplified installs
- API control for advanced system integration
- Plug-and-play compatibility with universal device support
- Subframe latency over a single CAT cable
- Audio pass through
BYOD rooms
Send 4K60 video input over USB-C from laptops, and other devices over CAT6/6a/7 cable and output via HDMI 2.0b to screens.
Go long. Or go longer.
4K60 goes long. 4K30 goes longer. Whichever you choose the video is in 4:4:4 so your computer screen looks perfect on the big screen.
Subframe latency.
Your video meetings will be natural with almost zero latency between the USB Extender Tx and Rx.
Teams and Zoom
The PD power pass through allows for an external USB power brick up to 100W to pass through power to the USB-C video connection, delivering power the device that’s plugged in.
Power over Cable. PoC.
Powering the actual units is super easy with PoC. Simply power either end and it will power the other unit over the CAT cable. That’s why we only included one power supply.
Plug-and-Play.
No drivers. No software. Just connect the Host and Device Extenders, and the system is ready to use.
High Dynamic Range.
Passes through High Dynamic Range (HDR) formats, including HDR10, HDR10+, Dolby Vision, and HLG.
Audio pass through.
LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X are all supported.
RS-232.
RS-232 signal pass-through supported for seamless control integration with third-party systems.
USB-C Video input. USB 2.0 extension.
4K video comes in over USB-C whilst offering USB 2.0 extension.
Tough. Compact.
Both Tx and Rx Extenders are built tough in full metal housing in a compact form factor making them ideal installation in AV racks, conference rooms, or behind equipment.
Turtle Ears.
Both endpoints come with rack mounting attachments pre-attached for easy installation under boardroom tables, behind screens, racks.
5 Year Warranty with Advance Replacement.
Turtle proudly offers a 5 Year warranty on our USB Extender devices. Warranty is 5 years from date of purchase and we are also proud to offer a no hassle advance replacement warranty on all our products.
Technical Specifications
| Feature | Description |
|---|
| HDMI | HDMI 2.0b |
| HDCP | HDCP 2.3 |
| USB | USB 2.0 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K@60Hz (4:4:4 8bit) |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | USB-C/HDMI passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X |
| Transmission Distance | 4K60Hz (4:4:4 8bit) signal up to 130ft/40m; 4K30Hz up to 230ft/70m with CAT6A/7 cable; USB 2.0 pass through up to 230ft/70m |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Transmitter - Front Panel | 1x CHARGE [USB Type C, 24-pin female], 1x USB-C IN [USB Type C, 24-pin female], 2x USB 2.0 DEVICES [USB Type A, 4-pin female] |
| Transmitter - Rear Panel | 1x SERVICE [USB-C with USB 2.0 only], 1x RS-232 [3-pin phoenix], 1x HDBaseT OUT [RJ45], 1x Power LED, 1x DC 24V |
| Transmitter - Side Panel | 1x PoC ON/OFF [DIP switch] |

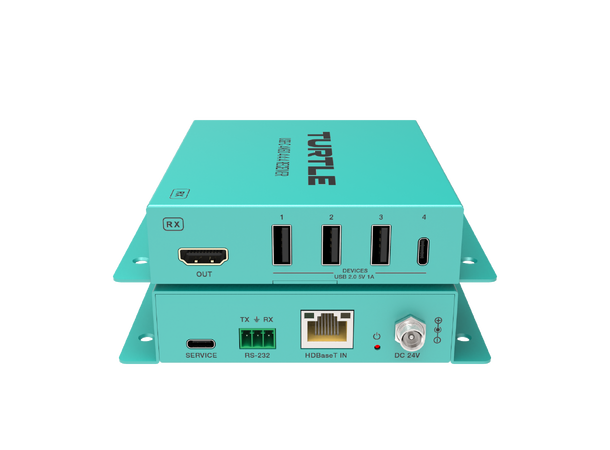

| Receiver - Front Panel | 1x HDMI OUT, 1x USB 2.0 DEVICES [USB-C], 3x USB 2.0 DEVICES [USB-A] |
| Receiver - Rear Panel | 1x SERVICE [USB-C], 1x RS-232 [3-pin phoenix], 1x HDBaseT IN, 1x Power LED, 1x DC 24V |
| Receiver - Side Panel | 1x PoC ON/OFF [DIP switch] |
Mechanical Specifications
| Feature | Description |
|---|
| Housing | Metal |
| Color | Turtle Aqua |
| Dimensions | Transmitter/Receiver: 120mm [W] x 113mm [D] x 25.5mm [H] |
| Weight | Transmitter: 353g, Receiver: 352g |
| Power Supply Input | AC 100 – 240V 50/60Hz |
| Output | DC 24V/2.7A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | TX/RX with full USB devices: 51.36W; TX/RX without USB devices: 10.08W |
| Operating Temperature | 32°F – 104°F / 0°C – 40°C |
| Storage Temperature | -4°F – 140°F / -20°C – 60°C |
| Operating Humidity | 20% – 80% relative humidity, non-condensing |
| Storage Humidity | 10% – 90% relative humidity, non-condensing |
