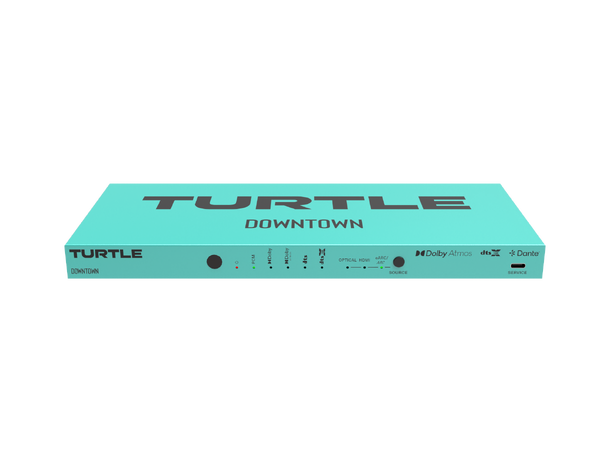

Downtown
SKU: TAV-DOWNTOWN
Downtown brings Dolby Atmos and DTS to Dante, supporting Dolby Digital, DD+, Atmos, DTS:X and PCM up to 9.1 channels.
Each channel is presented as a separate Dante audio stream for flexible routing in Dante Controller.
With PoE redundancy, primary and secondary Dante network failover, dedicated control network, AES67 support and full API control,
it’s ideal for theme parks, theatres, stadiums and broadcast. TAA compliant and backed by a 5-year warranty.
Technical Specifications
| Category |
Specification |
| Video |
| Video resolution | Up to 8K@60Hz 4:2:0 10-bit, HDMI 2.1 compatible |
| HDR support | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDCP | HDCP 2.3 and 1.x compatible |
| Colour | 8/10/12bit, RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDMI video formats | Supports all standard resolutions from 480i to 8K60 – including 7680x4320p60Hz |
| HDMI loop out | Supports original multichannel or 2ch downmix |
| Audio |
| Inputs | HDMI IN/Loop Out, eARC/ARC, SPDIF Optical |
| Supported formats | Dolby Digital, DD+, Dolby Atmos, DTS:X, PCM 9.1 / 7.1.2 / 5.1 / 2.0 |
| Dante/AES67 output | PCM 9CH 44.1K–96KHz 16/24bit + stereo downmix |
| Analog output | 9CH line out (balanced/unbalanced) max 2VRMS
2CH downmixed out (balanced/unbalanced) max 2VRMS |
| Output impedance | 600 Ohm balanced / 300 Ohm unbalanced |
| Frequency response | 20Hz – 20kHz (+/-0.5dB) |
| Dynamic range / SNR | >100dB @ 0dBu, 1kHz A-weighted |
| THD+N | < 0.01% @ +4dBu, 1kHz |

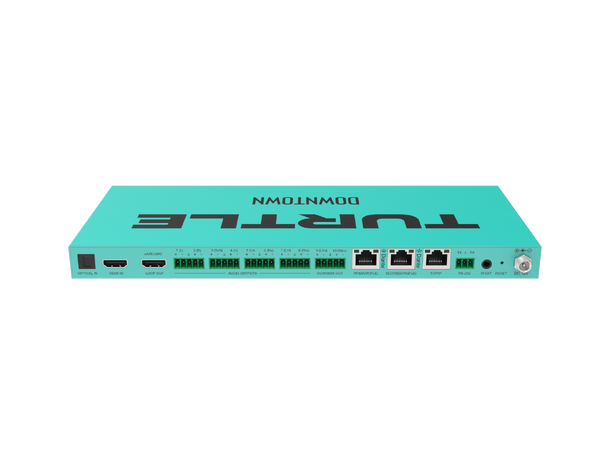

| Connections |
| Input | 1x HDMI 2.1, 1x SPDIF Optical |
| Output | 9x LINE OUT [5pin Phoenix]
1x IR [3.5mm jack]
1x Dante PRIMARY [RJ45, PoE]
1x Dante SECONDARY [RJ45, PoE] |
| Control | 1x RS-232/TRG [5pin Phoenix]
1x LAN [RJ45] for control network |
| Network & Power |
| PoE redundancy | Dual PoE + DC for triple power redundancy |
| Primary/Secondary Dante | Full failover support for mission-critical applications |
| Control network | Separate control port |
| Power supply | AC100–240V 50/60Hz |
| Power consumption | TBC |
| Physical |
| Colour | Turtle Aqua (Pantone 3262 C) |
| Chassis | Metal enclosure |
| Dimensions | TBC |
| Weight | TBC |
| Temperature | -20 – 60°C |
| Humidity | 20% – 90% RH (non-condensing) |
| Other |
| TAA compliant | Yes, suitable for US government contracts |
| Warranty | 5 years with advance replacement |
| Rackmount | 1RU-compatible with Turtle Ears included |
