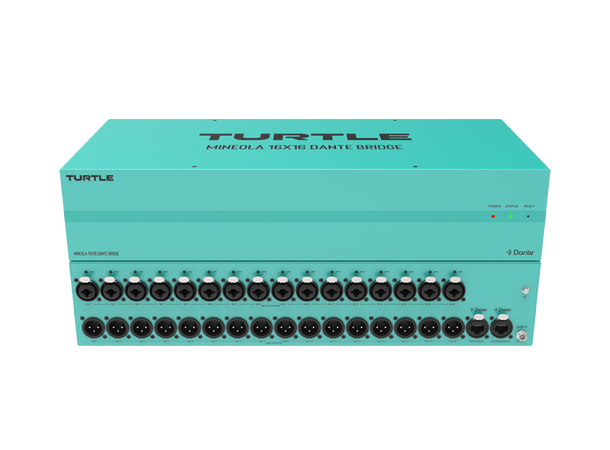

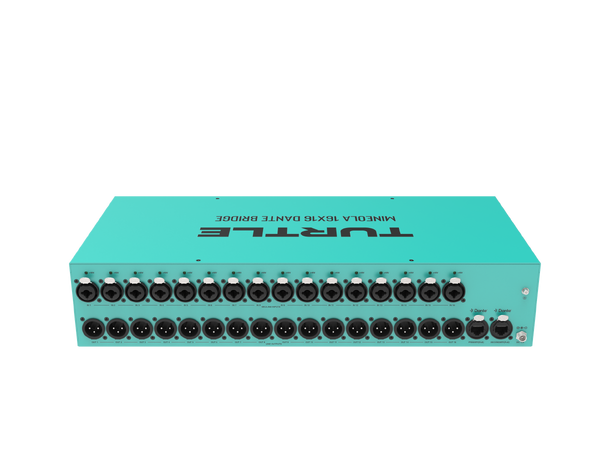

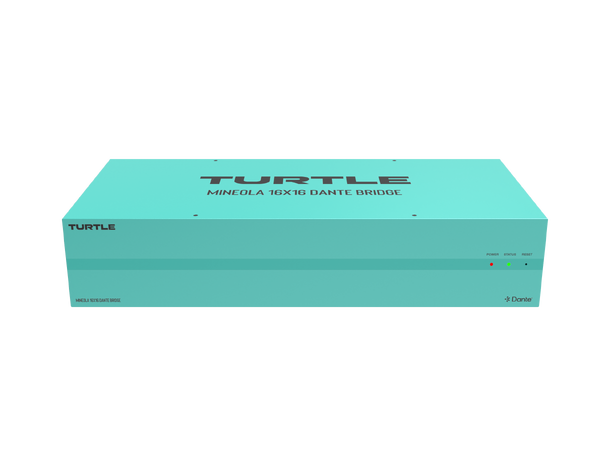

Mineola 16x16 Dante Audio Bridge
SKU: TAV-MINEOLA16XLR
The Mineola 16x16 is the ultimate solution for demanding setups requiring eight inputs and eight outputs. Designed to bridge digital Dante and analog XLR audio seamlessly, it provides exceptional performance for large-scale productions. Ideal for live events, broadcast studios, or permanent installations, the Mineola 16x16 delivers pristine audio and unparalleled flexibility for professional environments.
Meet Mineola. The Ultimate 16x16 Dante Audio Bridge.
The Mineola 16x16 seamlessly connects the digital Dante and analog XLR worlds with sixteen inputs and sixteen outputs, all housed in a 2RU form factor. Dual, redundant PoE-powered and equipped with 48V phantom power on all XLR inputs, it’s perfect for handling high-density audio connections in professional environments. All connectors are locking, featuring Neutrik etherCON on the dual network ports for reliable redundancy. Fully compatible with the entire Dante software suite, the Mineola 16x16 integrates effortlessly into live event production systems like vMix, Vizrt Vectar, Vizrt TriCaster, OBS, and Telestream Wirecast. With its unmatched density and versatility, the Mineola 16x16 is the ultimate solution for demanding audio setups.
- PoE with Phantom Power: Combines Power over Ethernet with 48V Phantom Power on all 16 XLR inputs.
- Primary and Secondary Dante networks: Dual network ports ensure redundancy and uninterrupted audio.
- Triple Power Redundancy: Dual PoE + locking DC connector.
- Locking Connectors: All connectors including Neutrik etherCON and PSU are locking.
- Total Dante Software Compatibility: Works with Dante Controller, DVS, Domain Manager, Connect, Director.
- Live Production Ready: Connects easily to vMix, Vizrt, OBS, Wirecast, and more.
- Rack or Throwdown: Can be mounted in 19” rack with Turtle Ears or used standalone.
- Rugged Chassis: All-metal enclosure in Turtle Aqua color.
- TAA Compliant: Meets U.S. government standards for procurement.
- 5-Year Warranty: Includes advance replacement.
DSP control via WebGUI
- Adjust input/output, EQ profiles, and delay
- Create and recall 5 customizable presets
- Monitor and manage DHCP/Static IP, Telnet, and access settings
- Advanced utilities: password, reboot, firmware, export/import
- Streamlined setup of inputs, standby times, etc.
Technical Specifications
| Audio |
| Input | 16 channels balanced/unbalanced analog audio with 48V Phantom power |
| Output | 16 channels Dante® digital audio |
| Control | Dante® Controller, WebUI |
| Network Bandwidth | 100M |
| Audio Latency | Configurable (1, 2 or 5ms via Dante® Controller) |
| Line-Up Level Selection | -35dBV, -18dBV, 0dBV, +4dBu, +14dBu, +24dBu |
| Input Sensitivity | 0dBV / +4dBu / +14dBu / +24dBu / -18dBV / -35dBV |
| Output Gain Options | 0dBV / +4dBu / +14dBu / +20dBu / -18dBV |
| Audio Processing | Input Gain, 8-Band Parametric EQ, Delay Control |
| Sample Rate | 48 kHz / 96 kHz |
| Sample Rate Conversion (SRC) | 48 kHz |
| Signal Latency | 18 ms |
| Power Consumption | 3.96W |
| ESD Protection | IEC 61000-4-2: ±8kV (Air) & ±4kV (Contact) |
| Connections |
| Input | 16x LINE IN/MIC IN [XLR/TRS combo] |
| Output | 16x LINE OUT/MIC OUT [XLR/TRS combo] |
| Network | 1x Dante PRIMARY [RJ45 PoE], 1x Dante SECONDARY [RJ45 PoE] |
| Mechanical |
| Housing | Metal enclosure |
| Color | Turtle Aqua |
| Dimensions | 2RU 19” rack mount |
| Power |
| Power Supply | PoE IEEE802.3af Class 0, 12V DC (locking) |
| Operating Temperature | 32–104°F / -20–60°C |
| Humidity | 20% – 90% RH (non-condensing) |
