1. Introduction

This 4K HDBaseT 3.0 Extender can extend uncompressed HDMI™/USB-C

signals, bi-directional IR, RS-232, and USB signals up to 328ft/100m via a

single CAT6A/7 cable. Video resolution is up to 4K2K@60Hz YUV 4:4:4.

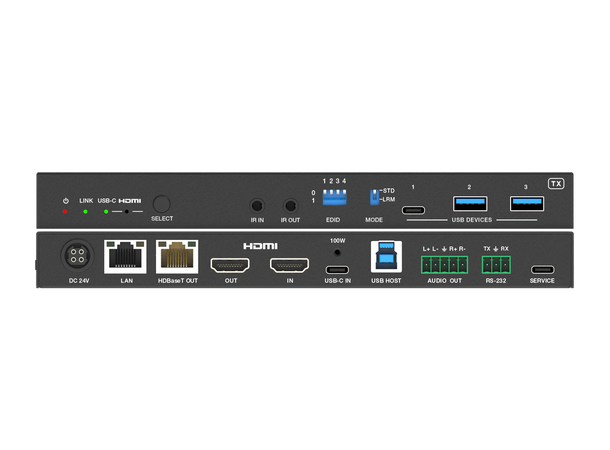

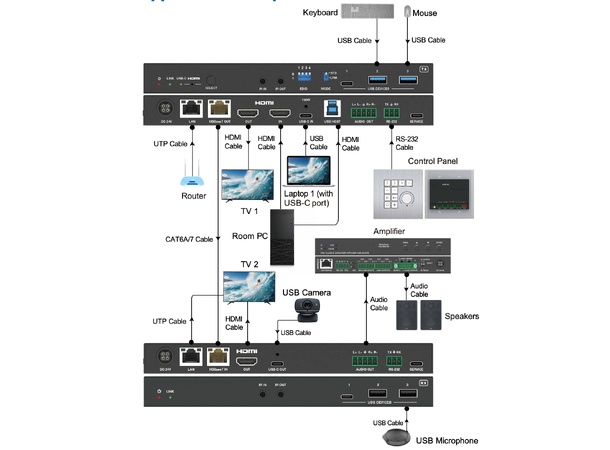

The transmitter features 1x HDMI™ input, 1x USB-C input (A/V+USB 3.2+1G+

100W charging), 1x USB 3.2 Host and 3x USB 3.2 Device ports. It can switch

between HDBT Standard Mode (as factory default) and HDBT Long Reach

Mode. It supports EDID management. The receiver features 1x HDMI™ output,

1x USB-C output (DP output + USB 2.0 device port), 3x USB 2.0 Device ports.

Transmitter and receiver support analog audio de-embedding, bi-directional IR,

RS-232 and 1G LAN pass-through. This product supports bi-directional 24V PoC

function.

The Extender offers the most convenient solution for video extension via a

single CAT cable with long distance capability, and it is a perfect solution for

home/commercial applications.

2. Features

? Compliant with HDCP 2.2 and DisplayPort 1.4a, 18Gbps video bandwidth

? HDBaseT 3.0 VS3000 chipset based design

? Support video resolution up to 4K2K@60Hz (YUV 4:4:4), as specified in

HDMI™ 2.0b

? 4K60/4K30/1080P signal transmission distance up to 328ft/100m via a

single CAT6A/7 cable (HDBT Standard Mode)

? 1080P 8bit signal transmission distance up to 492ft/150m via a single

CAT6A/7 cable (HDBT Long Reach Mode)

? TX features 1x HDMI™ input, 1x USB-C input, 1x HDMI™/HDBT output,

1x USB 3.2 host and 3x USB 3.2 clients

? RX features 1x HDBT input, 1x HDMI™ output, 1x USB-C output,

3x USB 2.0 clients

? USB-C and HDMI™ signal inputs support auto or manual switching mode

? Auto switching supports HDMI™ 5V or signal detect selection

? TX USB-C host port supports DP-ALT mode for A/V, USB 3.2 data, 1G

Ethernet and power charging up to 100 watts

? RX USB-C OUT port supports AV signal output and USB 2.0 signal transfer

? TX/RX USB-A client ports VBUS on or off depends on USB host is

connected or not

? HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through

? 4K to 1080p downscaling on HDMI™ output, no frame rate conversion

? Both TX and RX support analog audio de-embedding

? RS-232 signal pass-through and API control

? RS-232/CEC control external device power on/off

? 1G Ethernet and bi-directional IR signal pass-through

? Advanced EDID management

? Support bi-directional 24V PoC, with PoC switch (USB-C charging only

from TX power supply)

1 / 203. Package Contents

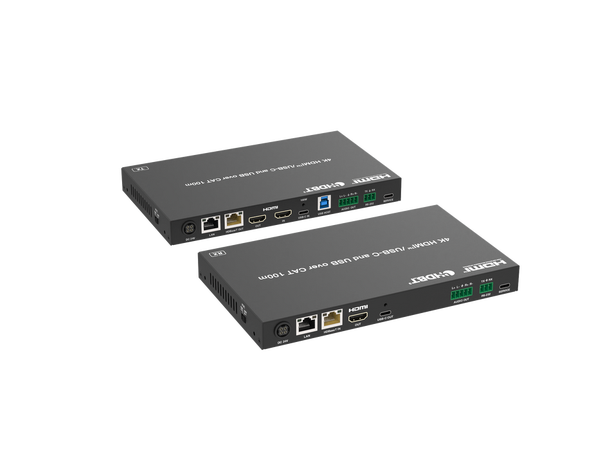

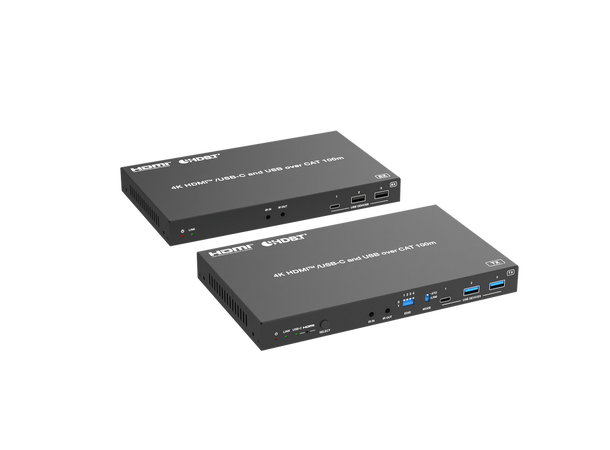

? 1× 4K HDMI™/USB-C over HDBaseT 3.0 Extender (Transmitter)

? 1× 4K HDMI™/USB-C over HDBaseT 3.0 Extender (Receiver)

? 2× 3pin-3.5mm Phoenix Connector (male)

? 2× 5pin-3.5mm Phoenix Connector (male)

? 4× Mounting Ear

? 8× Machine Screw (KM3*6)

? 1× IR Blaster Cable (1.5m)

? 1× IR Receiver Cable (1.5m)

? 1× 24V/7.5A Desktop Power Supply

? 1× User Manual
