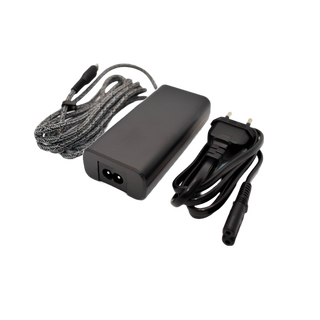

( PD powersupply is sold separately)


1. Introduction

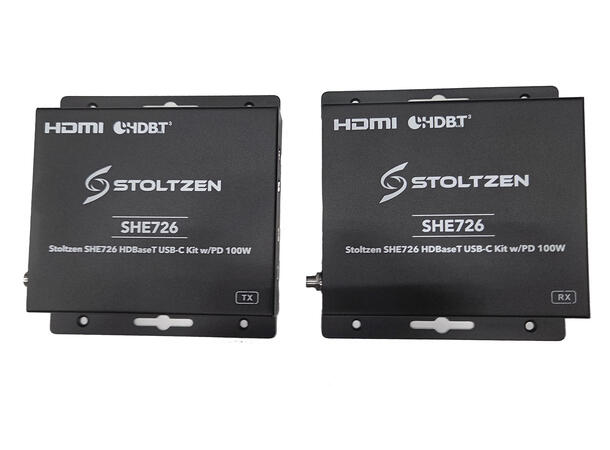

This 18Gbps HDBaseT 3.0 extender can extend USB-C video and USB 2.0 signals up to 230ft/70m for 4K30Hz (4:4:4 8bit) and 130ft/40m for 4K60Hz (4:4:4 8bit) via a single CAT6A/7 cable. The transmitter box (TX) features with 1x USB-C input, 1x dedicated USB-C charging port and 2x local USB devices. USB-C input supports DP Alt-mode standards (v1.2a) and USB 2.0 data. The receiver box (RX) features with 1x HDMI output and 4x USB devices. TX/RX both support RS-232 signal pass-through and bi-directional 24V PoC function. This extender offers the most convenient solution for video extension via a single CAT cable, and it is a perfect solution for commercial A/V applications.



2. Features

HDBaseT 3.0 extender with USB-C input

18Gbps video bandwidth, and video resolution up to 4K@60Hz (4:4:4 8bit) as specified in HDMI 2.0b

Extend uncompressed 4K60Hz (4:4:4 8bit) signal up to 130ft/40m and 4K30Hz (4:4:4 8bit) signal up to 230ft/70m with CAT6A/7 cable

HDR, HDR10+, Dolby Vision LLM and HLG pass-through

HDCP 2.3 compliant, to create a secure connection between the source and display

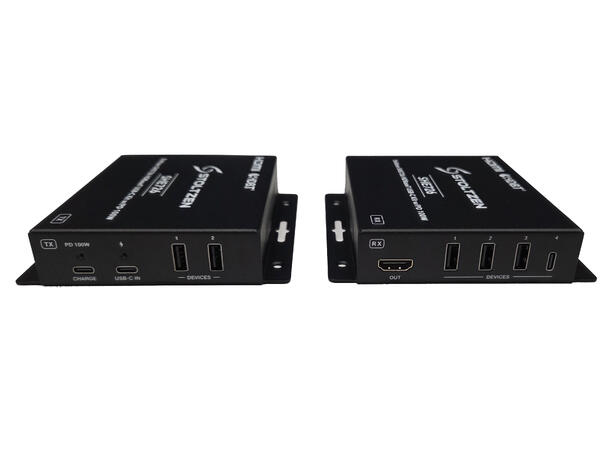

The transmitter features 1x USB-C input, 1x dedicated USB-C charging port and 2x local USB devices

USB-C input supports DP-ALT mode standards (v1.2a) for A/V, USB 2.0 data and power charging up to 100 watts

The receiver features 1x HDMI output and 4x USB 2.0 devices

USB 2.0 high speed over HDBaseT 3.0

Each USB-A port provides power up to 5V/1A

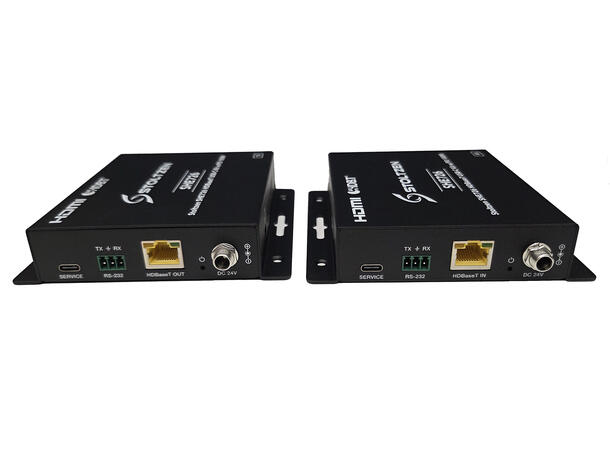

RS-232 signal pass-through

Audio passthrough: LPCM 2.0/5.1/7.1CH, Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X

Bidirectional 24V PoC (power over cable), when TX or RX gets power, the other end does not need an external power supply

Compact design for easy and flexible installation



3. Package Contents

1× 18Gbps USB-C over HDBaseT 3.0 Extender (Transmitter)

1× 18Gbps USB-C over HDBaseT 3.0 Extender (Receiver)

2× 3pin-3.5mm Phoenix Connector (male)

1× 24V/2.7A Desktop Power Supply

1× User Manual
