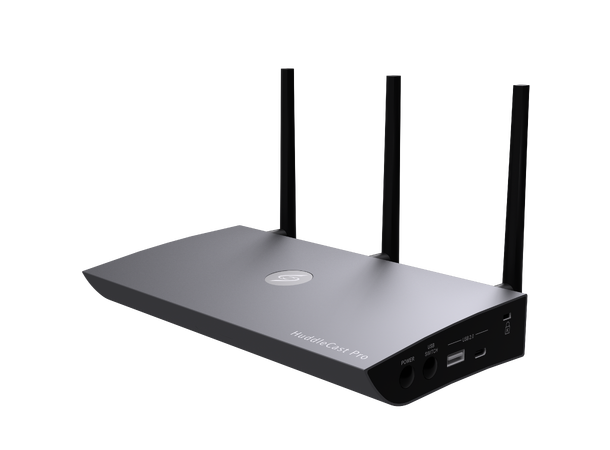

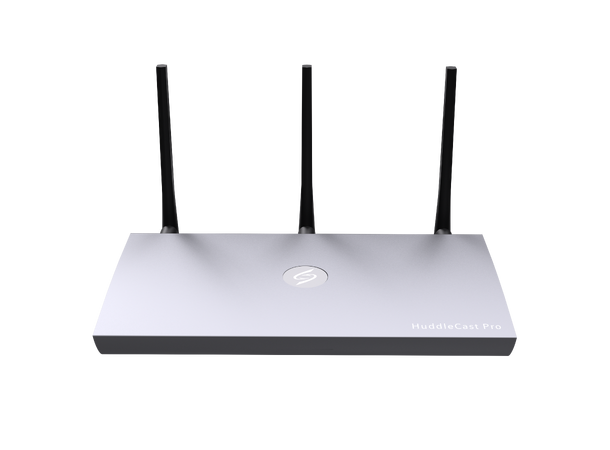

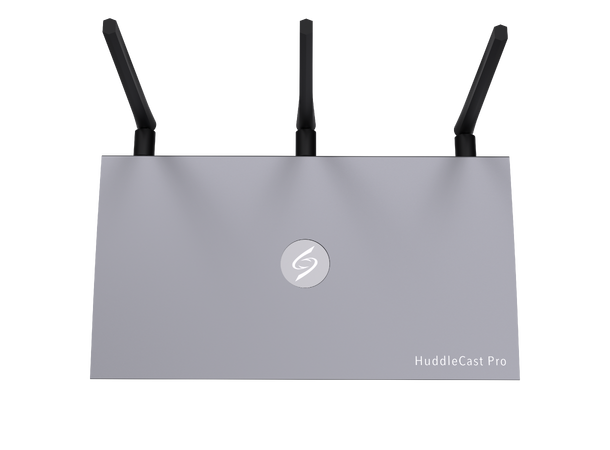

Stoltzen HuddleCast Pro
Wireless Presentation System
The Stoltzen HuddleCast Pro is an entry-level wireless presentation system designed for seamless, cable-free content sharing in professional and educational environments. Supporting a variety of devices via native wireless mirroring protocols and HDMI/Type-C dongles, it offers a 4K wireless presentation experience.
Key Features:
- Powerful Wireless Capabilities: Supports 4K HDMI output, Airplay, Miracast, and Chromecast.
- Interactive Collaboration Tools: Includes wireless touch back, whiteboard, and annotation functionalities with robust encryption for data security.
- Efficient User Experience: Customizable home screen, moderation mode, compact design, and lightweight.
Available Accessories:
- USB-C Dongle
- HDMI+USB Dongle
Specifications:
|

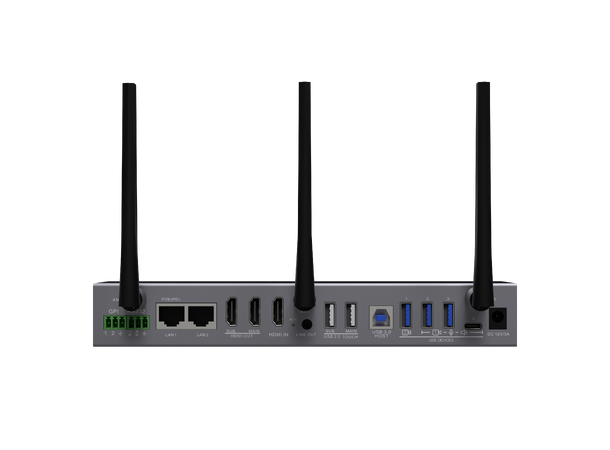

HDMI Output
|
2x HDMI 19-pin female connector |
|
Video Output Resolution
|
3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz |
|
Format Compliance
|
HDMI1.4/HDMI2.0 |
|
Video Capacity
|
4K @ 30Hz Airplay for iOS-devices
4K @ 30Hz HuddleCast app
4K @ 30Hz for HDMI Dongle
4K @ 30Hz for USB-C Dongle |
|
HDCP
|
HDCP1.4/HDCP2.2 |
|
Analog Audio Output
|
1x 3.5mm PC audio female jack |
|
LAN Port
|
2x RJ45 (100Mbps) |
|
USB Interface
|
USB 3.0: Type-A x1, Type-C x1
USB 2.0: Type-A x4, Type-C x1 |
|
Audio Input
|
From all sources |
|
Audio Output
|
Jack, HDMI, Jack + HDMI |
|
Number of Window Simultaneous on Screen
|
4+14 (4 main window + 14 thumbnail windows) |
|
Number of Simultaneous Connections
|
=16 |
|
Video Playback Frame Rate
|
20-60 FPS |
|
Latency
|
<100ms, Min 20ms |
|
WiFi Data Rate
|
Up to 1200Mbps |
|
Wireless Transmission Protocol
|
WiFi IEEE 802.11 b/g/n/ac |
|
Frequency Band
|
2.4 GHz & 5 GHz |
|
WiFi Antenna
|
MIMO 2x2, MIMO 1x1 |
|
WiFi Encryption
|
AES WPA PSK, WPA2 PSK |
|
Control Method
|
Web GUI, Telnet |
|
Dimension (W x D x H)
|
220mm x 130mm x 34mm (including antenna: 220mm x 130mm x 34mm) |
|
Weight
|
930g |
|
Operating Temperature
|
-20°C to +45°C |
|
Storage Temperature
|
-20°C to +60°C |
|
Relative Humidity
|
20%-85% RH (no condensation) |
|
DC Power
|
12V / PoE |
|
Power Consumption
|
30W (MAX) |
|
Power Adapter
|
AC100-240v 50/60Hz 12V/1.5A
|
