Stoltzen THALIA PTZ3-NDI 20x NDISDI | HDMI | USB3.0 | POE | NDI | BLACK

Stoltzen THALIA PTZ3-NDI

This series of cameras offers perfect functionality, superior performance, and versatile video output interfaces. With advanced ISP processing algorithms, it delivers vibrant, high-resolution video with strong depth perception and excellent color reproduction. It supports H.264/H.265 encoding for smooth, clear motion video even under low bandwidth conditions.

Key Features:

Full HD Resolution: Equipped with a 1/2.8-inch high-quality CMOS sensor, supporting up to 1920x1080 resolution at 60 fps.
Optical Zoom Lens: Available with either 12X or 20X optical zoom.
Autofocus Technology: Fast, accurate, and stable autofocus performance.
Low Noise and High SNR: Super high SNR image quality with advanced 2D/3D noise reduction technology.
Video Output Interfaces: HDMI, SDI, USB 3.0, LAN, and NDI. Simultaneous audio and video output via HDMI, SDI, and LAN. The LAN interface supports PoE, while USB 3.0 supports dual encoding streams, and SDI allows transmission up to 100m at 1080P60.
Audio/Video Compression Standards: Supports H.264/H.265 video compression (up to 1920x1080 resolution at 60 fps) and AAC, MP3, G.711A audio compression with various sampling rates.
USB 3.0 Dual Encoding Stream: Supports both main and secondary streams simultaneously, with support for YUY2, MJPEG, H.264, NV12, and H.265 video encoding formats.
Built-in Gravity Sensor: Supports PTZ auto-flip function for easy installation.
Network Protocols: Supports ONVIF, GB/T28181, RTSP, RTMP, VISCA over IP, IP VISCA, RTMPS, SRT, and NDI. RTMP push mode for easy connection to streaming servers (Wowza, FMS) and RTP multicast mode.
Control Interface: RS422 compatible with RS485, RS232-IN, RS232-OUT. The RS232 interface supports cascading connection.
Control Protocols: Supports VISCA, PELCO-D, PELCO-P protocols with automatic protocol identification.
Quiet Pan/Tilt Movement: High-precision step motor for silent and smooth pan/tilt operation.
Remote Controls: Infrared or wireless remote control available. The 2.4G wireless remote control is unaffected by angle, distance, or infrared interference, supporting transparent transmission of remote control signals for convenient use of rear equipment.
AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithms for real-time tracking and area tracking.
Applications: Suitable for online learning, lecture recordings, webcasting, video conferencing, telemedicine, unified communication, emergency management and control systems, and more.

Specifications

Parameter/Model	20X (B6)
Focus	f=5.05 – 101mm
FOV	3.6° (N) / 58.6° (W)
Aperture Value	F1.8 – F2.9

Feature	Specification
Effective Pixels	2.07, 1/2.8-inch high-quality CMOS sensor
HDMI/SDI	1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94
USB3.0	Main stream: YUY2/NV12; Video Format: 1920×1080, 1280×720, 1024×576, 800×600, 800×448, 640×360, 640×480, 480×270, 320×180 @30/25/20/15/10/5fps; MJPG/H264: 1920×1080, 1600×896, 1280×720, 1024×576, 960×540, 800×600, 800×448, 720×576, 720×480, 640×360, 640×480, 480×270, 352×288, 320×240 @30/25/20/15/10/5fps
Sub-stream	YUY2/NV12: 1920×1080, 1280×720, 1024×576, 800×600, 800×448, 640×360, 640×480, 480×270, 320×180 @30/25/20/15/10/5fps; MJPG/H264: 1920×1080, 1600×896, 1280×720, 1024×576, 960×540, 800×600, 800×448, 720×576, 720×480, 640×360, 640×480, 480×270, 352×288, 320×240 @30/25/20/15/10/5fps
Minimum illumination	0.5Lux(F1.8, AGC ON)
DNR	2D, 3D
AWB	Automatic, manual, one-push white balance, specified color temperature
Focus mode	Automatic, manual, one-push focus
Exposure mode	Auto, manual, shutter priority, aperture priority, brightness priority
Iris value	F1.8 -- F11, CLOSE
Shutter Speed	1/25 -- 1/10000
BLC	On/off
Dynamic range	Off, 1 -- 8
Image adjustment	Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
SNR	=50dB
AI Function & Performance
Real-Time Tracking	Maximum Tracking Range: 6-7 meters. Supports speakers walking at a speed of 1.3-1.7m/s
Regional Tracking	Maximum Tracking Region: 4. Supports setting the region within horizontal -170°~+170° and vertical -30°~+90°
Interface

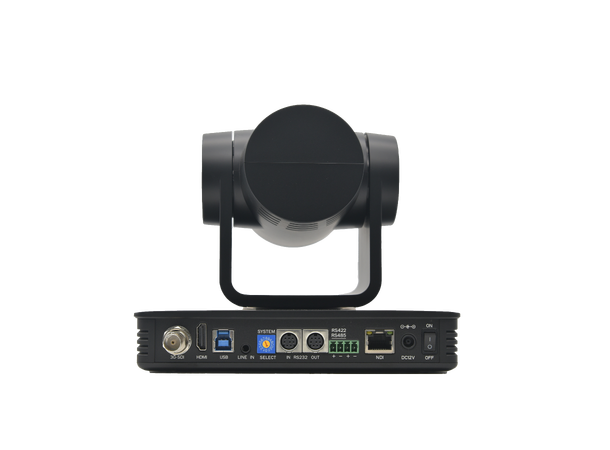

Product Interface	HDMI, LAN (POE), USB3.0 (B Type, compatible with USB2.0), SDI, A-IN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), Rotary Switch, DC12V Power
Video Encoding Format	LAN Interface: Supports main stream and sub-stream H.265, H.264; USB3.0 Interface: main stream supports YUY2, MJPG, H.264, NV12
Audio input interface	Dual channel 3.5mm linear input
Audio output interface	HDMI, SDI, LAN, USB3.0
Audio compression	AAC, MP3, G.711A
LAN interface	10M/100M adaptive Ethernet port, supports POE power supply, supports audio and video output
Network protocol	RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT. Supports remote upgrade, remote restart, remote reset
Control Interface	RS232-IN, RS232-OUT, RS422 (compatible with RS485)
Serial communication protocol	VISCA/Pelco-D/Pelco-P; supports baud rate 115200/38400/9600/4800/2400
USB communication protocol	UVC (video communication protocol), UAC (audio communication protocol)
Power interface	HEC3800 Power socket (DC12V)
Power adapter	Input AC110V-AC220V; output DC12V/2.5A
Input voltage	DC12V±10%
Input current	<1A
Consumption	<12W
PTZ
Pan rotation	-170° -- +170°
Tilt rotation	-30° -- +90°
Pan speed	0.1°/s -- 100°/s
Tilt speed	0.1°/s -- 45°/s
Preset speed	Pan: 100°/s, Tilt: 45°/s

Stoltzen THALIA PTZ3-NDI 20x NDI SDI | HDMI | USB3.0 | POE | NDI | BLACK

Tilbehør

Alternativ

Artikler

Antall artikler funnet:

Stoltzen THALIA PTZ3-NDI 20x NDI

SDI | HDMI | USB3.0 | POE | NDI | BLACK

Varunummer: 134251

Alt. varunr: PTZ3-NDI-20x

Beskrivning

Stoltzen THALIA PTZ3-NDI

Key Features:

Full HD Resolution: Equipped with a 1/2.8-inch high-quality CMOS sensor, supporting up to 1920x1080 resolution at 60 fps.
Optical Zoom Lens: Available with either 12X or 20X optical zoom.
Autofocus Technology: Fast, accurate, and stable autofocus performance.
Low Noise and High SNR: Super high SNR image quality with advanced 2D/3D noise reduction technology.
Video Output Interfaces: HDMI, SDI, USB 3.0, LAN, and NDI. Simultaneous audio and video output via HDMI, SDI, and LAN. The LAN interface supports PoE, while USB 3.0 supports dual encoding streams, and SDI allows transmission up to 100m at 1080P60.
Audio/Video Compression Standards: Supports H.264/H.265 video compression (up to 1920x1080 resolution at 60 fps) and AAC, MP3, G.711A audio compression with various sampling rates.
USB 3.0 Dual Encoding Stream: Supports both main and secondary streams simultaneously, with support for YUY2, MJPEG, H.264, NV12, and H.265 video encoding formats.
Built-in Gravity Sensor: Supports PTZ auto-flip function for easy installation.
Network Protocols: Supports ONVIF, GB/T28181, RTSP, RTMP, VISCA over IP, IP VISCA, RTMPS, SRT, and NDI. RTMP push mode for easy connection to streaming servers (Wowza, FMS) and RTP multicast mode.
Control Interface: RS422 compatible with RS485, RS232-IN, RS232-OUT. The RS232 interface supports cascading connection.
Control Protocols: Supports VISCA, PELCO-D, PELCO-P protocols with automatic protocol identification.
Quiet Pan/Tilt Movement: High-precision step motor for silent and smooth pan/tilt operation.
Remote Controls: Infrared or wireless remote control available. The 2.4G wireless remote control is unaffected by angle, distance, or infrared interference, supporting transparent transmission of remote control signals for convenient use of rear equipment.
AI Human Detection: Built-in high-speed processor and advanced image processing and analysis algorithms for real-time tracking and area tracking.
Applications: Suitable for online learning, lecture recordings, webcasting, video conferencing, telemedicine, unified communication, emergency management and control systems, and more.

Specifications

Parameter/Model	20X (B6)
Focus	f=5.05 – 101mm
FOV	3.6° (N) / 58.6° (W)
Aperture Value	F1.8 – F2.9

Feature	Specification
Effective Pixels	2.07, 1/2.8-inch high-quality CMOS sensor
HDMI/SDI	1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94
USB3.0	Main stream: YUY2/NV12; Video Format: 1920×1080, 1280×720, 1024×576, 800×600, 800×448, 640×360, 640×480, 480×270, 320×180 @30/25/20/15/10/5fps; MJPG/H264: 1920×1080, 1600×896, 1280×720, 1024×576, 960×540, 800×600, 800×448, 720×576, 720×480, 640×360, 640×480, 480×270, 352×288, 320×240 @30/25/20/15/10/5fps
Sub-stream	YUY2/NV12: 1920×1080, 1280×720, 1024×576, 800×600, 800×448, 640×360, 640×480, 480×270, 320×180 @30/25/20/15/10/5fps; MJPG/H264: 1920×1080, 1600×896, 1280×720, 1024×576, 960×540, 800×600, 800×448, 720×576, 720×480, 640×360, 640×480, 480×270, 352×288, 320×240 @30/25/20/15/10/5fps
Minimum illumination	0.5Lux(F1.8, AGC ON)
DNR	2D, 3D
AWB	Automatic, manual, one-push white balance, specified color temperature
Focus mode	Automatic, manual, one-push focus
Exposure mode	Auto, manual, shutter priority, aperture priority, brightness priority
Iris value	F1.8 -- F11, CLOSE
Shutter Speed	1/25 -- 1/10000
BLC	On/off
Dynamic range	Off, 1 -- 8
Image adjustment	Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
SNR	=50dB
AI Function & Performance
Real-Time Tracking	Maximum Tracking Range: 6-7 meters. Supports speakers walking at a speed of 1.3-1.7m/s
Regional Tracking	Maximum Tracking Region: 4. Supports setting the region within horizontal -170°~+170° and vertical -30°~+90°
Interface
Product Interface	HDMI, LAN (POE), USB3.0 (B Type, compatible with USB2.0), SDI, A-IN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), Rotary Switch, DC12V Power
Video Encoding Format	LAN Interface: Supports main stream and sub-stream H.265, H.264; USB3.0 Interface: main stream supports YUY2, MJPG, H.264, NV12
Audio input interface	Dual channel 3.5mm linear input
Audio output interface	HDMI, SDI, LAN, USB3.0
Audio compression	AAC, MP3, G.711A
LAN interface	10M/100M adaptive Ethernet port, supports POE power supply, supports audio and video output
Network protocol	RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT. Supports remote upgrade, remote restart, remote reset
Control Interface	RS232-IN, RS232-OUT, RS422 (compatible with RS485)
Serial communication protocol	VISCA/Pelco-D/Pelco-P; supports baud rate 115200/38400/9600/4800/2400
USB communication protocol	UVC (video communication protocol), UAC (audio communication protocol)
Power interface	HEC3800 Power socket (DC12V)
Power adapter	Input AC110V-AC220V; output DC12V/2.5A
Input voltage	DC12V±10%
Input current	<1A
Consumption	<12W
PTZ
Pan rotation	-170° -- +170°
Tilt rotation	-30° -- +90°
Pan speed	0.1°/s -- 100°/s
Tilt speed	0.1°/s -- 45°/s
Preset speed	Pan: 100°/s, Tilt: 45°/s
