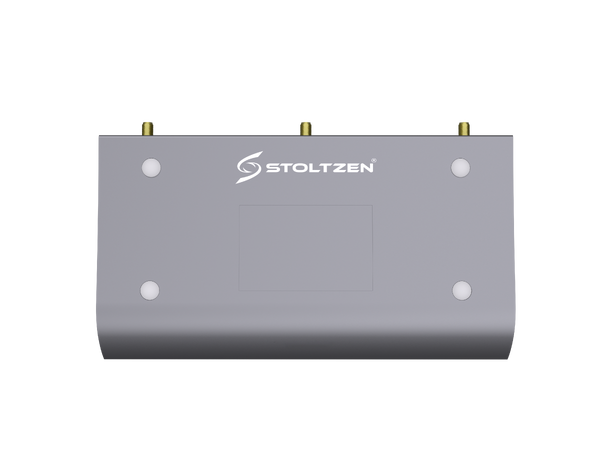

Stoltzen HuddleCast Pro
Wireless Presentation System
The Stoltzen HuddleCast Pro is an entry-level wireless presentation system designed for seamless, cable-free content sharing in professional and educational environments. Supporting a wide range of devices through native wireless mirroring protocols and HDMI/Type-C dongles, it delivers a high-quality 4K wireless presentation experience.
Key Features:
- Powerful Wireless Capabilities: Supports 4K HDMI output, AirPlay, Miracast, and Chromecast.
- Interactive Collaboration Tools: Includes wireless touchback, whiteboard, and annotation features with robust encryption for data security.
- Efficient User Experience: Customizable start screen, moderation mode, compact design, and lightweight build.
Available Accessories:
- USB-C Dongle
- HDMI + USB Dongle
Specifications:

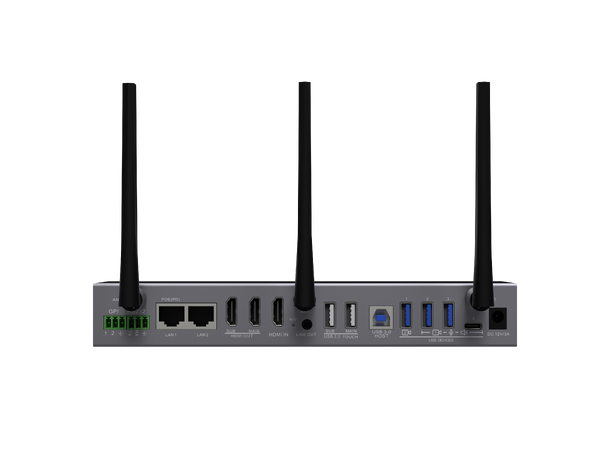

| HDMI Output | 2 x HDMI 19-pin female connectors |
| Video Resolution Output | 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz |
| Format Compatibility | HDMI 1.4 / HDMI 2.0 |
| Video Capabilities | 4K @ 30Hz AirPlay (iOS devices), 4K @ 30Hz HuddleCast app, 4K @ 30Hz via HDMI Dongle, 4K @ 30Hz via USB-C Dongle |
| HDCP Support | HDCP 1.4 / HDCP 2.2 |
| Analog Audio Output | 1 x 3.5mm PC audio female jack |
| LAN Ports | 2 x RJ45 (100 Mbps) |
| USB Interfaces | USB 3.0: Type-A x1, Type-C x1
USB 2.0: Type-A x4, Type-C x1 |
| Audio Input | From all sources |
| Audio Output | Jack, HDMI, Jack + HDMI |
| Simultaneous Screen Windows | 4 main windows + 14 thumbnail windows |
| Simultaneous Connections | Up to 16 |
| Video Frame Rate | 20-60 FPS |
| Latency | <100ms, Minimum 20ms |
| WiFi Data Speed | Up to 1200 Mbps |
| Wireless Transmission Protocol | WiFi IEEE 802.11 b/g/n/ac |
| Frequency Bands | 2.4 GHz & 5 GHz |
| WiFi Antenna | MIMO 2x2, MIMO 1x1 |
| WiFi Encryption | AES WPA PSK, WPA2 PSK |
| Control Method | Web GUI, Telnet |
| Dimensions (W x D x H) | 220mm x 130mm x 34mm (Including antenna: 220mm x 130mm x 34mm) |
| Weight | 930g |
| Operating Temperature | -20°C to +45°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 20%-85% RH (Non-condensing) |
| DC Power | 12V / PoE |
| Power Consumption | 30W (Max) |
| Power Adapter | AC100-240V 50/60Hz 12V/1.5A |
