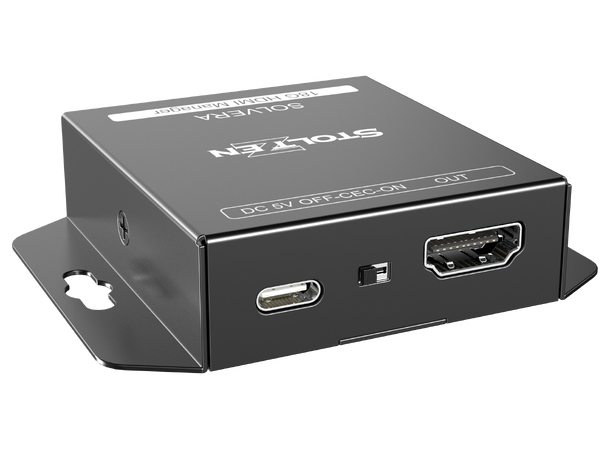

Stoltzen Solvera - EDID, HPD & HDCP Fix
A Problem Solver for HDMI Installations
Inspired by the Latin word solvere (to solve), we present the Stoltzen SOLVERA.
Designed to simplify installation issues, this compact device boasts a range of intelligent features:
- EDID Manager
- HDCP Manager
- 5V Manager
- CEC Blocker
Key Features:
- Supports up to 4K@60 4:4:4 and HDCP2.2
- EDID & HDCP management
- Powered by HDMI or USB-C
- Disables 5V when source lacks TMDS
- CEC block switch

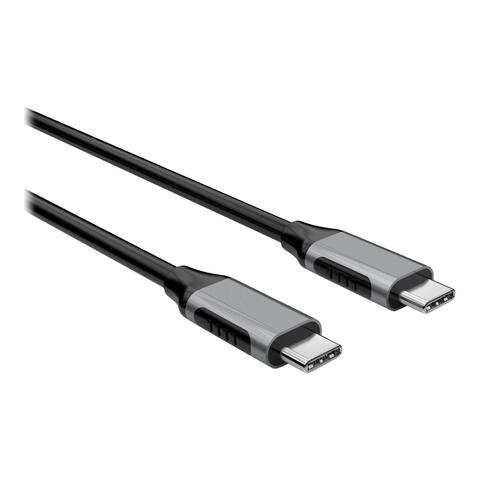

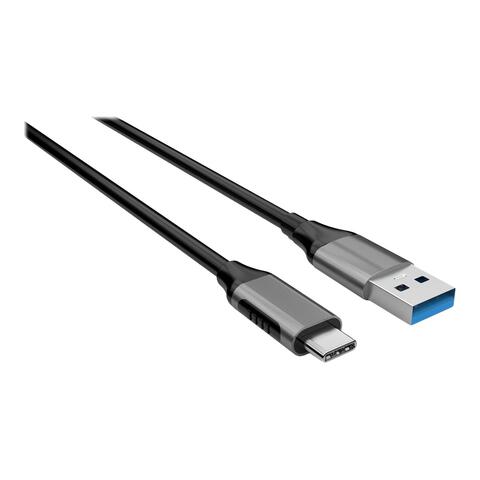

Recommend using a power source to reduce connection time. USB A-C or C-C cables available under accessories
Specifications
| Video Input |
| Input |
1x HDMI 2.0 |
| Input Connector |
1x Female type-A HDMI |
| HDMI Input Resolution |
Up to 4K@60 4:4:4 |
| Video Output |
| Output |
1x HDMI 2.0 |
| Output Connector |
1x Female type-A HDMI |
| HDMI Output Resolution |
Up to 4K@60 4:4:4 |
| General |
| Bandwidth |
18Gbps |
| Power Supply |
5V 1A |
| Power Consumption |
2.4W (MAX) |
| Dimension (W*H*D) |
54x18x60mm |
| Net Weight |
85g |
EDID Settings
| Switch |
Resolution |
Audio |
| 000 |
Passthrough |
|
| 001 |
1080p |
LPCM |
| 010 |
1080p |
DTS/Dolby |
| 011 |
3840x2160@30Hz HDR |
LPCM |
| 100 |
3840x2160@30Hz HDR |
DTS/Dolby |
| 101 |
3840x2160@60Hz HDR |
LPCM |
| 110 |
3840x2160@60Hz HDR |
DTS/Dolby |
| 111 |
User defined EDID |
|
