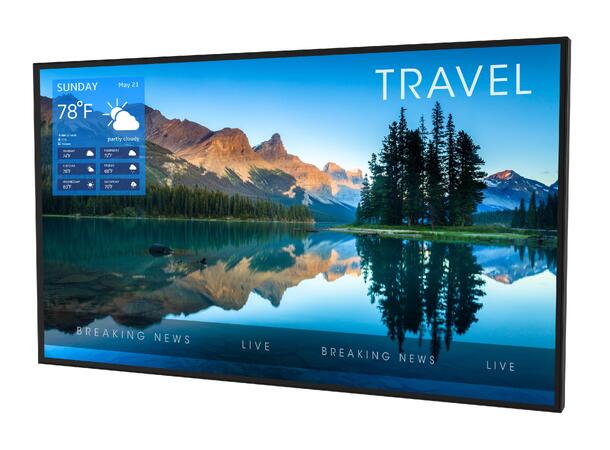

There has never been an outdoor daylight readable display built to withstand the harsh outdoor
elements like the Peerless-AV® Xtreme™ High Bright. Featuring an IP66 Rated design and a
patented thermal exhaust system, Xtreme High Bright Outdoor Displays are fully protected
against water, dust, moisture and even insects. The display’s cover glass is optically bonded,
which increases the perceived contrast ratio and cuts down on glare, providing amazing
picture quality even in direct sunlight. With an operating temperature range of -35°C to 60°C,
Xtreme Displays are designed to thrive year-round outside, without worry of extreme hot or
cold temperature waves. This High Bright line of commercial displays offer 2500nits of light
output to combat high ambient lighting conditions, while the ambient light sensor automatically
adjusts the display’s brightness to optimise the power consumption and enhance the viewing
experience. Providing unmatched capabilities, Xtreme High Bright Outdoor Displays are the
perfect digital signage or entertainment solution for any professional application
Product Specifications
Screen Size
55" Class (54.6" Diagonal)
Pixel Pitch
.63 x .63mm
Aspect Ratio
16:9
Resolution
1920 x 1080
Brightness
2,500cd/m2
Contrast Ratio
4000:1
Viewing Angle
178° Vertical/Horizontal
Refresh Rate
60Hz
Operating Temperature
-31°F to 140°F (-35°C to 60°C)
IP Rating
IP66
SIZE (W x H x D)
50.07” x 29.24” x 3.98" (1272 x 743 x 101mm)
Color
Black
Glass
IK10 Rated, Tempered & Anti-reflective
NET WEIGHT
99lb (44.9kg)
AC Input
100 VAC to 240 VAC, 50 to 60 Hz
POWER CONSUMPTION
Typical: 308W Maximum: 364W
HDMI Input
HDMI (x2), 480i, 480p, 720p, 1080i , 1080p
CVBS Input
3.5mm (x1)
12VDC 2.5A OUTPUT
2.5mm (x1)
IR EXTENDER INPUT
3.5mm (x1)
Package Specifications
Package Size (W x H x D)
56.75" x 34.25" x 10.00" (1441 x 870 x 254mm)
Package Ship Weight
113lb (51.26kg)
Package UPC Code
735029339489
Package Contents
Display, Waterproof Universal Remote Control, User’s Guide, 3mm Hex Wrench, Power Cord and IR Extender
