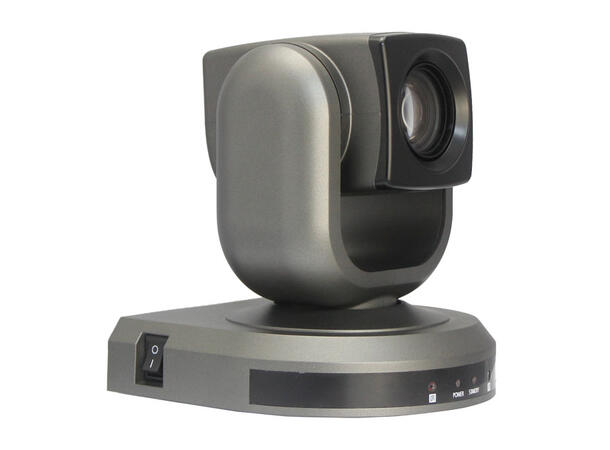

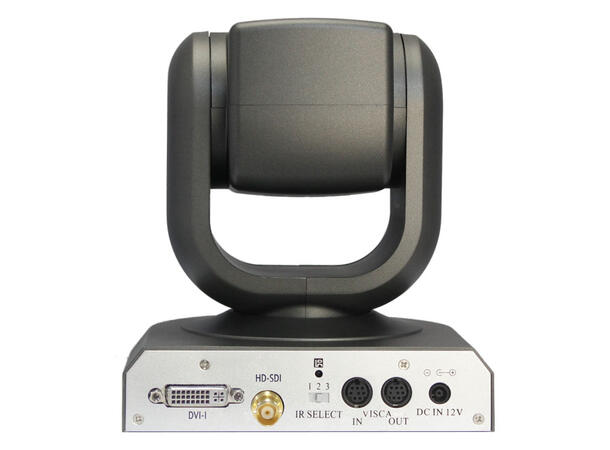

OneKing Pan and Tilt 12X Zoom Camera
with SDI/DVI/HDMI Output
Enhance your video conferencing experience with this high-definition color camera, featuring a powerful Sony lens and versatile connectivity options. With pan and tilt functionality, this camera delivers precise control and exceptional image quality, making it ideal for professional settings.
Key Features
- Camera Type: HD Color Video Conference Camera
- Lens: Sony Lens with 10x Optical Zoom and 12x Digital Zoom
- Sensor: 1/2.8" 3.27 Mega CMOS Sensor
- Minimum Illumination: 0.5 Lux at F1.6
- Field of View: 55° Horizontal, 355° Pan, 90° Tilt
- Outputs: DVI/HD-SDI/HDMI
Specifications
| |
| Model No. | HD910-K7 |
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 2.38 Megapixel |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Backlight Compensation | On/Off |
| Shutter Speed | 1/1 - 1/10,000 Sec |
| S/N Ratio | >50 dB |
| Focus | f = 4.7 - 94 mm, F1.6 - 3.5 |
| Iris Control | Auto/Manual |
| Video Output | HD-SDI, DVI-I |
Signal System
- Supported Resolutions:
- 1080P@60, 1080P@50, 1080p@30, 1080p@25
- 1080i@60, 1080i@50
- 720P@60, 720P@50, 720P@30, 720P@25
Control Specifications
| Control
Terminal |
EIA/RS232C, EIA/RS485
(Bidirectional) |
| Control Protocol |
VISCA, PELCO-D |
| Baud Rate |
9600/38400 bps |
| Patrol Line |
4 Cruise Sequences |
| Preset Positions |
64 Preset Positions |
Movement and Speed
| Pan
Movement Speed |
1-200°/Second |
| Tilt Movement Speed |
1-150°/Second |
| Pan Range |
0° - 355° |
| Tilt Range |
Up: 90°, Down: 45° |
| Pan Scanning |
Supported |
| Boundary Scanning |
0-355° (Programmable) |
Additional Information
| Remote
Controller |
IR Wireless Remote Controller
P/T/Z |
| Power Supply |
DC12V, 2A |
| Working Temperature |
0 - 50°C |
| Humidity |
0 - 95% RH |
| Dimensions (L x W x H) |
250mm x 140mm x 154mm |
| Weight |
1380g |
