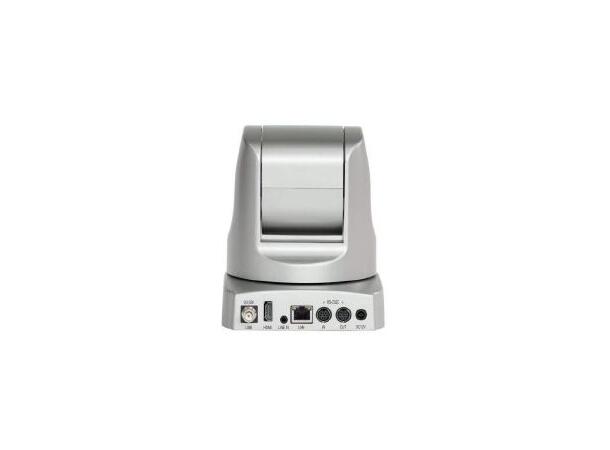

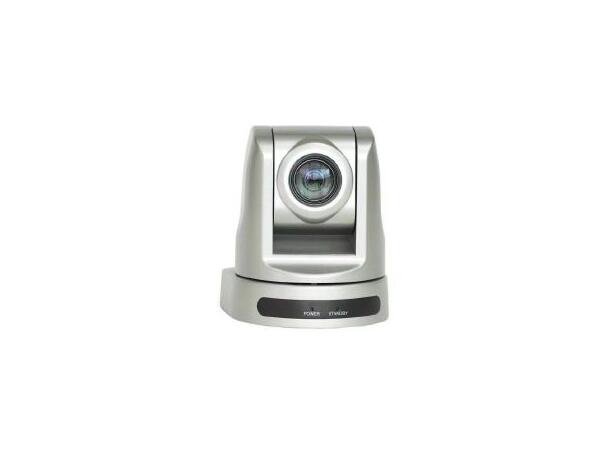

OneKing Pan Tilt Zoom Camera
with SDI/HDMI and LAN Output
Elevate your video conferencing and surveillance capabilities with this advanced Pan Tilt Zoom Camera featuring a Sony 1/2.8 Type Exmor CMOS sensor. Offering high-quality image output and versatile connectivity options, this camera is ideal for professional environments.
Key Features
- Camera Type: Pan Tilt Zoom Camera
- Image Sensor: Sony 1/2.8 Type Exmor CMOS
- Effective Pixels: 2.13 Megapixel
- Minimum Illumination: 0.5 Lux at F1.6
- Outputs: SDI, IP, HDMI
- Video Compression: H.264/H.265, MJPEG
Specifications
| White
Balance |
Auto/Manual |
| Gain Control |
Auto/Manual |
| Backlight Compensation |
On/Off |
| Shutter Speed |
1/1 - 1/10,000 Sec |
| S/N Ratio |
>50 dB |
| Lens Type |
20X Optical Zoom |
| Focus |
f = 5.5 - 110.0 mm |
| Field of View |
58.5° x 33.2° (F1.5 - 3.2) |
| Iris Control |
Auto/Manual |
| Horizontal View Angle |
58.5° x 33.2° |
| Video Output |
SDI, IP, HDMI |
| Bit Rate |
30 ~ 16384 Kb/s (CBR/VBR) |
Signal System
- Supported Resolutions:
- HDMI/HD-SDI:
- 1080P @ 60fps
- 1080P @ 50fps
- 1080P @ 30fps
- 1080P @ 25fps
- 720P @ 60fps
- 720P @ 50fps
- 720P @ 30fps
- 720P @ 25fps
Control Specifications
| Control
Terminal |
EIA/RS232C, EIA/RS485
(Bidirectional) |
| Control Protocol |
VISCA, PELCO-D, OnVif |
| Baud Rate |
2400/4800/9600/19200/38400 bps |
| Patrol Line |
4 Cruise Sequences |
| Preset Positions |
128 Preset Positions |
Movement and speed
| Pan
Movement Speed |
1.7° ~ 100°/Second |
| Tilt Movement Speed |
1.7° ~ 72.2°/Second |
| Pan Movement Range |
±170° |
| Tilt Movement Range |
Tilt -30° ~ +90° |
| Pan Scanning |
Supported |
| Boundary Scanning |
0 - 355° (Programmable) |
Additional information
| Remote
Controller |
IR Wireless Remote Controller
P/T/Z |
| Power Supply |
DC12V, 2A |
| Working Temperature |
0 - 50°C |
| Humidity |
0 - 95% RH |
| Weight |
1700 g |
