Caymon CASY104/B cover plate Black 1 space angled cover plate D-size hole Caymon CASY104/B cover plate Black 1 space angled cover plate D-size hole Caymon CASY104/B cover plate Black 1 space angled cover plate D-size hole

Caymon CASY104/B cover plate Black

1 space angled cover plate D-size hole

Varunummer: 133463
Alt. varunr: CASY143/B
BeskrivningExtern Info
Beskrivning

Caymon CASY143/B Angled Speakon

with male SpeakON to 4-pin terminal block

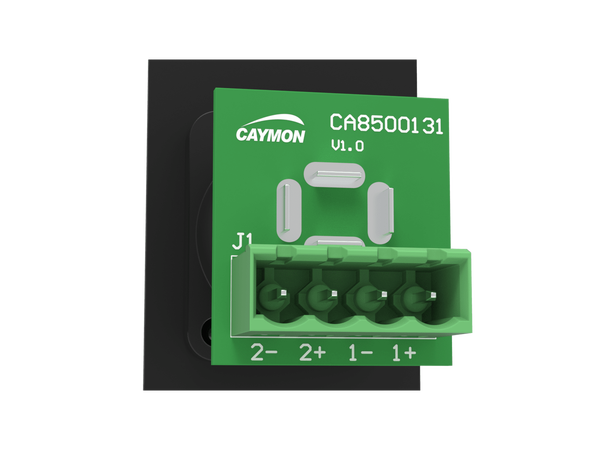

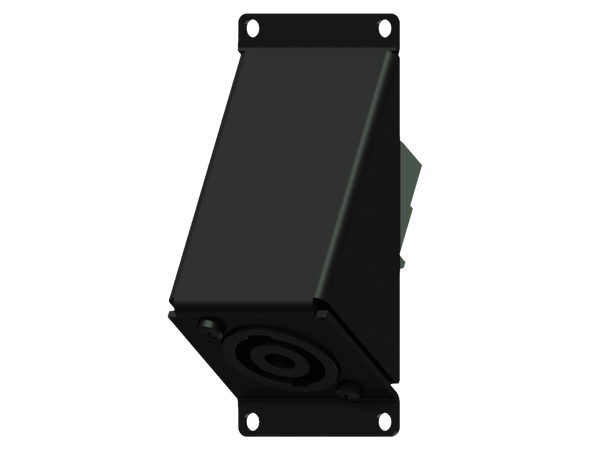

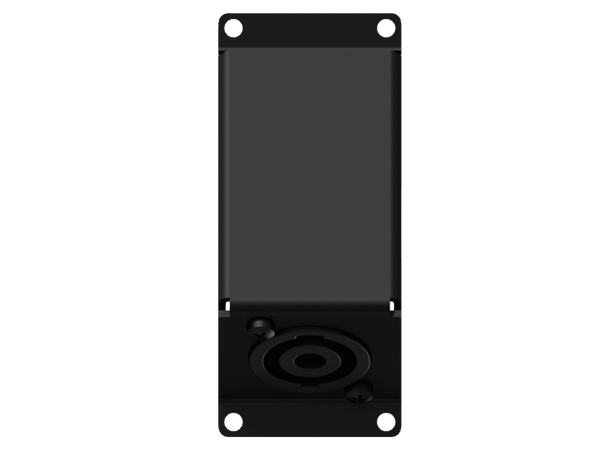

The CASY143 is a CASY module with an angled male NL4MP SpeakON connector on the front side and a 4-pin terminal block connector on the back side. This flexible structure for system integration & connectivity can easily be implemented in a wide variety of CASY chassis.

  • 1.5 mm thick cold rolled steel frame
  • Structured and scratch resistant black powder coating
  • Assembly screws included
  • Compatible with any CASY chassis
  • SpeakON connectors by Neutrik
  • Solderless connections
  • Flexible system for system integration & connectivity



Specifications



Dimensions: 35.5 x 82.1 mm (W x H)

Weight: 0.084 kg

Connection: SpeakON (angled) (NL4MP) to 4-pin terminal block

Module Space: 1

Max. section: Terminal block 0.2 - 2.5 mm²
