LinkIT OS2 APC Fiber Cassette – 12 Fiber, MTP Male to LC Duplex

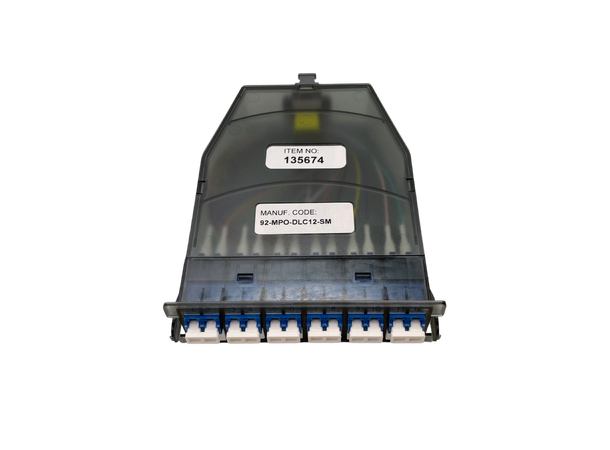

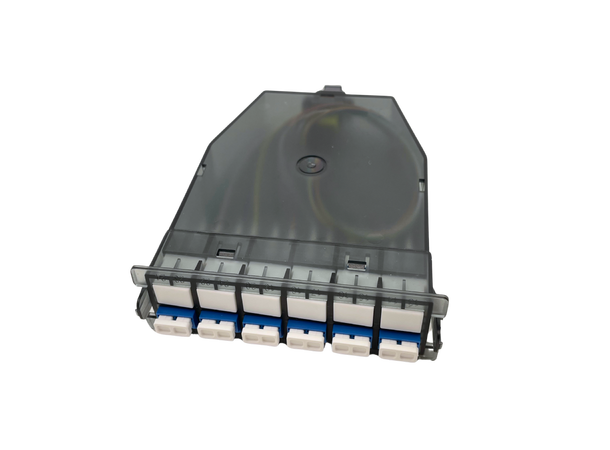

The LinkIT OS2 APC fiber cassette is pre-terminated and equipped with 1× MTP Male (USConec) connector at the rear and 6× LC Duplex adapters at the front (12 fibers).
Built in black plastic, it features APC polishing with low insertion loss (<0.35 dB) and high return loss.
The use of genuine USConec MTP connectors ensures maximum performance, precise alignment, and high reliability in singlemode installations.
Designed for easy integration with LinkIT MF HD panels.
Main Specifications
| Brand | LinkIT |
|---|
| Measurements (WxHxD) | 98.6 × 146 × 27 mm |
|---|
| Polishing contact 1 | APC |
|---|
| Polishing contact 2 | APC |
|---|
| Material | Plastic |
|---|
| Number of fibers | 12 |
|---|
| Fibreclass | OS2 |
|---|
| Number of outputs | 12 |
|---|
| Type of inputs | LC Duplex |
|---|
| Polarity | Type A |
|---|
Extended Specifications
| Input | 1× MTP Male |
|---|
| Front Connector | 6× LC Duplex |
|---|
| Insertion Loss Front Connector | <0.15 dB |
|---|
| Return Loss Front Connector | >55 dB |
|---|
| Rear Connector | 1× MTP Male (USCONEC) |
|---|
| Insertion Loss Rear Connector | <0.35 dB |
|---|
| Return Loss Rear Connector | >55 dB |
|---|
| Front Adapter | 6× LC Duplex Adapters |
|---|
| Rear Adapter | MTP Male |
|---|
| Certifications | REACH, RoHS |
|---|
