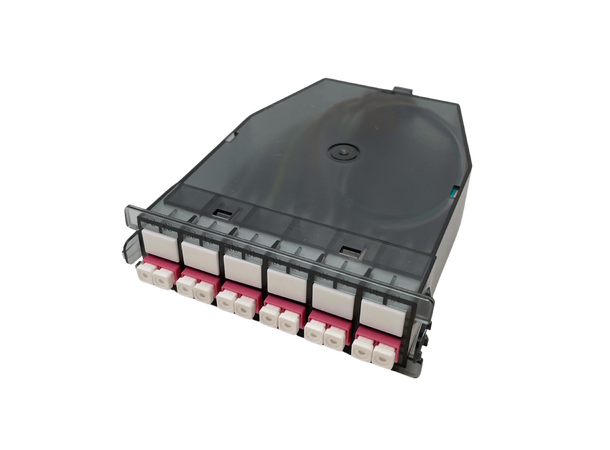

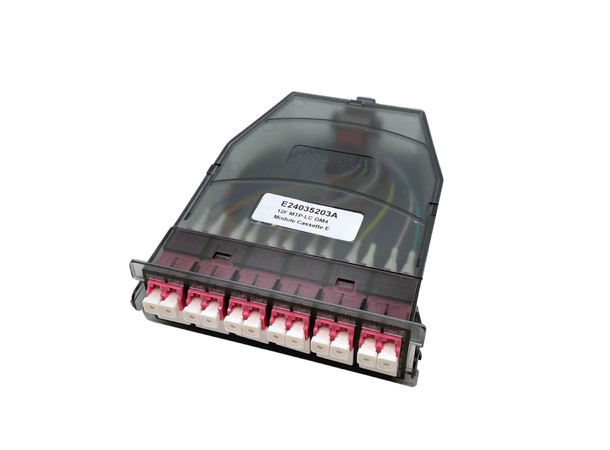

LinkIT OM4 Cassette – 12 Fiber, 1x MTP Male to 6x LC Duplex
This OM4 cassette includes 1x MTP Male (USCONEC) rear connectors and 6x LC Duplex front ports. Supports 12 fiber connections with low loss and UPC polish. Built in black plastic, it's ideal for high-performance networks and data centers.
| Brand | LinkIT |
|---|
| Measurements (WxHxD) | 98.6 × 146 × 27 mm |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Material | Plastic |
|---|
| Number of fibers | 12 |
|---|
| Fibreclass | OM4 |
|---|
| Number of outputs | 12 |
|---|
| Type of inputs | LC Duplex |
|---|
| Polarity | Type A |
|---|
Extended Specifications| Input | 1x MTP Male |
|---|
| Front Connector | 6x LC Duplex |
|---|
| Insertion Loss Front Connector | <0.15 dB |
|---|
| Return Loss Front Connector | >55 dB |
|---|
| Rear Connector | 1x MTP Male (USCONEC) |
|---|
| Insertion Loss Rear Connector | <0.35 dB |
|---|
| Return Loss Rear Connector | >55 dB |
|---|
| Front Adapter | 6x LC Duplex (12 fiber) |
|---|
