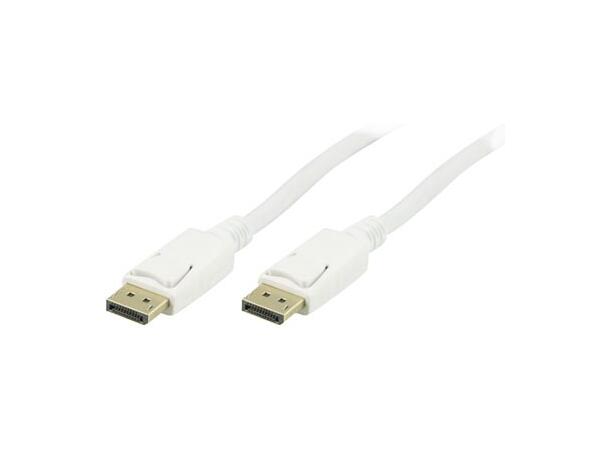

LinkIT DisplayPort 1.2 4K@60Hz
4K x 2K@60Hz | 28 AWG | White | Version 1.2
DisplayPort version 1.2 cable M-M White
- 21.6Gbps bandwidth
- Conductors of pure copper
- Max Resolution: 4K@60Hz
Technical documentation
DisplayPort M-M 1.2 cable. The display port cable is used to send audio and video from a source with Displayport plug to display with Displayport plug. 21.6Gbps bandwidth. Leads of pure copper. Maximum resolution: 4Kx2K @ 60Hz.
Main Specifications
| Length (m) | |
|---|
| Color | White |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Connector type 1 | DP Male 20 pin w/interlock |
|---|
| Connector type 2 | DP Male 20 pin w/interlock |
|---|
| DisplayPort version | 1.2 |
|---|
| Max Resolution | 4Kx2K@60Hz |
|---|
| Cable shielding | Triple shielding |
|---|
Extended Specifications
| Directional | No |
|---|
| Active | No |
|---|
| AWG wire size | 28 |
|---|
| Transmission speed | 21.6Gbps |
|---|
| Jacket material | PVC |
|---|
| Anti-kink sleeve | Assembled |
|---|
| Inner Cast | PE |
|---|
| Halogenfree | No |
|---|
| EAN | |
|---|
| Certifications | REACH, RoHS |
|---|
