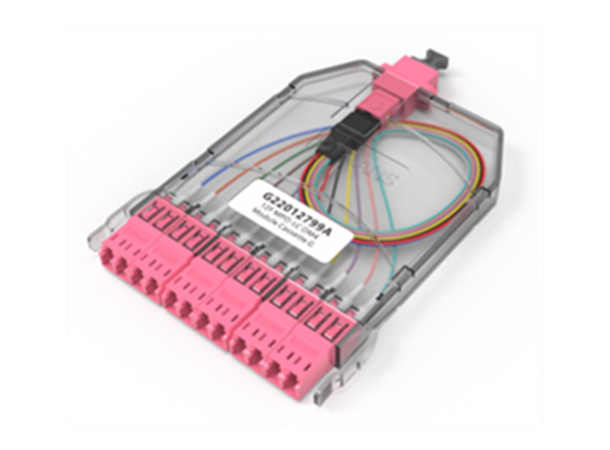

LinkIT MPO/LC OM4 Cassette – 12 Fiber, Multimode
The cassette has a rational structure and high capacity. It can be used in telecommunication networks, CATV networks, FTTH, LAN, WAN, etc.
The cassette uses an angled polished LC connector with low insertion loss.
Inside the cassette is a breakout cable assembly, which uses a Corning fiber in a ribbon configuration for 12 LC connections.
These are connected to 12 LC patch cables on the front of the cassette, and an MTP/MPO 12 UPC connector on the back.
The cassette can be installed either vertically or in a horizontal MPO cassette holder.
Main Specifications
| Brand | LinkIT |
|---|
| Measurements (WxHxD) | 121.2 × 77 × 130.87 mm |
|---|
| Polishing contact 1 | UPC |
|---|
| Polishing contact 2 | UPC |
|---|
| Material | Plastic |
|---|
| Number of fibers | 12 |
|---|
| Fibreclass | Multimode OM4 50/135 µm |
|---|
| Number of outputs | 12 |
|---|
| Type of inputs | LC adapter |
|---|
| Polarity | Type A |
|---|
Extended Specifications
| Input | 1 × MTP adapter |
|---|
| Front Connector | Multimode LC/SC Duplex with UPC Polish |
|---|
| Insertion Loss Front Connector | Multimode: UPC = 0.25 dB |
|---|
| Return Loss Front Connector | Multimode: UPC = 30 dB |
|---|
| Rear Connector | MTP USConec Elite |
|---|
| Insertion Loss Rear Connector | Elite UPC = 0.35 dB |
|---|
| Return Loss Rear Connector | Multimode: = 20 dB |
|---|
| Front Adapter | 6 pcs LC Duplex Adapter (without flange) |
|---|
| Rear Adapter | 1 pc MTP Adapter (Standard) |
|---|
| Certifications | CE, RoHS |
|---|
| Unit | BOX |
|---|
| Quantity | 1 |
|---|
| Height (cm) | 7.7 |
|---|
| Width (cm) | 12.1 |
|---|
| Length (cm) | 13 |
|---|
| Weight (kg) | 0 |
|---|
| Gross Weight (kg) | 0 |
|---|
