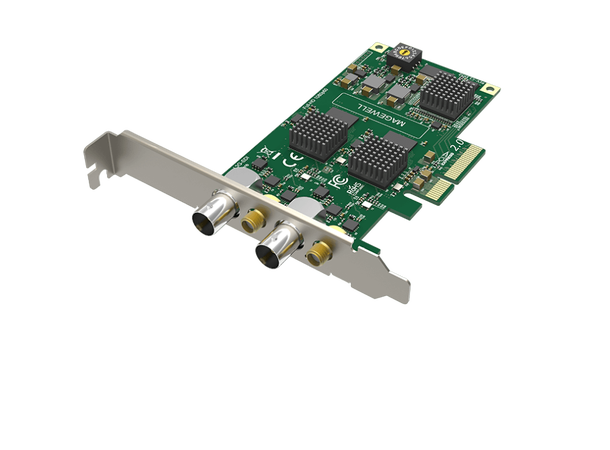

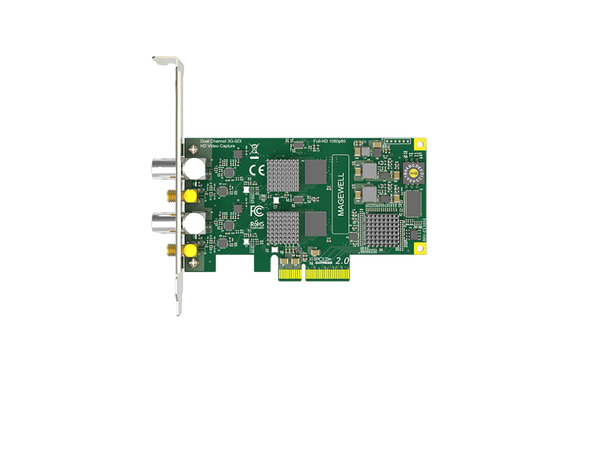

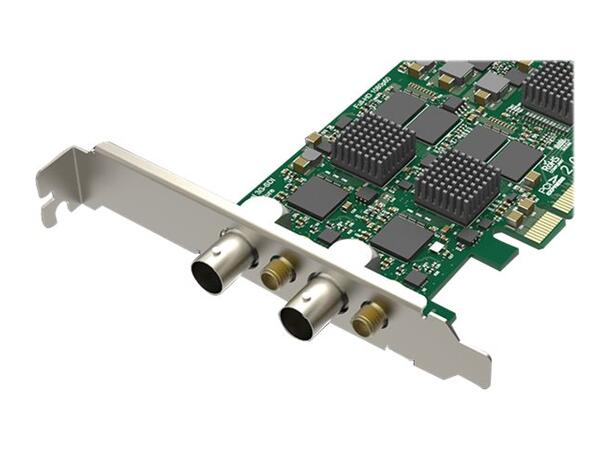

Magewell Pro Capture Dual SDI
Key Features:
- Automatic input signal detection
- High-quality video processing pipeline
- Multiple streaming devices
- Multiple devices on one host
- LED indicator
Specifications
| Product
Description |
Magewell Pro Capture Dual SDI -
video capture adapter - PCIe 2.0 x4 low profile |
| Device
Type |
Video capture adapter - low
profile |
| Interface
Type |
PCIe 2.0 x4 |
| Dimensions (W x D
x H) |
11.619 cm x 6.888 cm |
| Video Input |
3G-SDI |
| Video Formats |
1080/60i, 1080/50i, 1080/50p,
1080/60p, 1080/59.94i, 1080/59.94p |
| Video
Compression Formats |
YUV 4:2:0, YUV 4:2:2, YUV 4:4:4 |
| Digital
Video Capture Speed |
144 frames per second |
| Digital
Video Capture Resolution |
2048 x 1080 |
| Still
Image Capture Resolution |
2048 x 2160 |
| Operating
Systems Required |
Linux, Microsoft Windows Server
2008 (32/64-bit), |
|
Microsoft Windows Server 2008 R2
(32/64-bit), |
|
Microsoft Windows Server 2012
(32/64-bit), |
|
Microsoft Windows 7 / 8 / 8.1 /
10 (32/64-bit), |
|
Apple macOS X 10.9 - 10.11, |
|
Apple macOS 10.12 |
| Manufacturer's
Warranty |
1-year warranty |
| Power
Supply |
|
| Power
Consumption (Operating) |
9.15 Watts |
| Audio/Video
Interfaces |

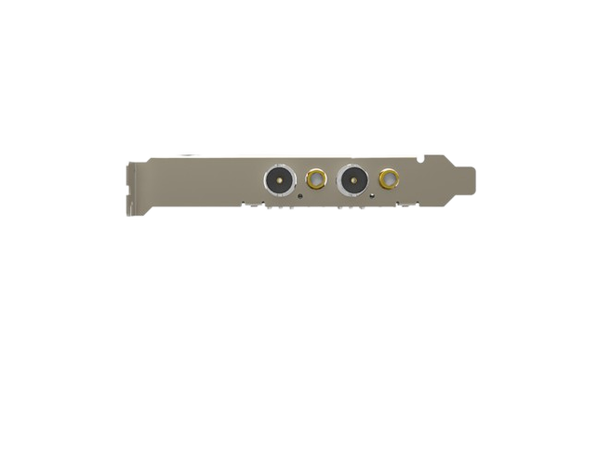

2 x audio/video - 3G-SDI - BNC |
| Compatible
Slots |
1 x PCI Express 2.0 x4 |
| Included
Cables |
SMA-BNC cable - external |
| Device
Features |
Upgradeable firmware |
| Operating
Environment |
Minimum Operating Temperature: 0
°C |
|
Maximum Operating Temperature:
40 °C |
|
Humidity: 5 - 90 %
(non-condensing) |
What's in the Box
- Magewell Pro Capture Dual SDI
- SMA-BNC cable
