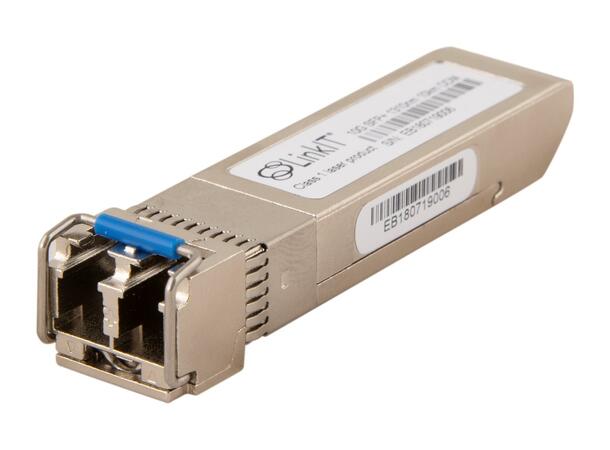

LinkIT SFP 1,25Gbps EX 40km Dell
LC | DDM | Single-mode | 1550nm
This Small Form Factor Pluggable (SFP) transceiver is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1550nm DFB laser and the PIN photo-detector. The module data link up to 40KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
PRODUCT FEATURES
- Up to 1.25Gbps data rate
- 1550nm DFB laser transmitter
- Pin photo-detector
- Up to 40km on 9/125um SMF
- Hot- pluggable SFP footprint
- LC pluggable optical interface
- Low power dissipation
- Metal enclosure,for lower EMI
- Single +3.3V power supply
- Support Digital Diagnostic Monitoring interface
- Operating wide temperature range: Commercial 0ºC to 70ºC
- Case operating temperature -40ºC to 85ºC
- Low power consumption < 1.0W
APPLICATIONS
- Gigabit Ethernet
- Gigabit Fiber Channel
- Other optical link
