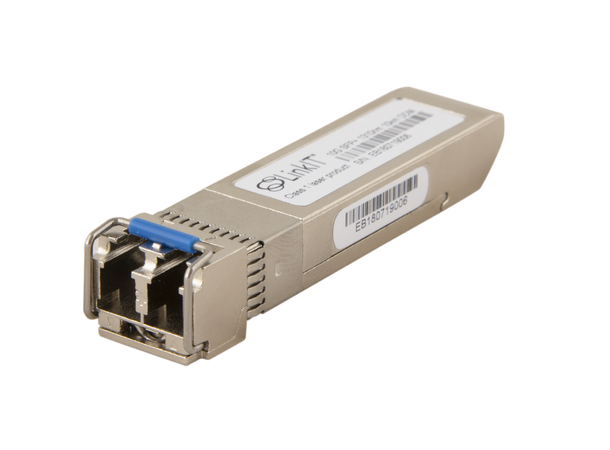

LinkIT SFP+ 10Gbps LR 10km Fortinet
LC | DDM | Single-mode | 1310nm
This module is compliant with the SFP+ MSA and fully adheres to ROHS standards. It features an all-metal housing that ensures superior EMI performance and supports an operating data rate ranging from 8.5Gbps to 10Gbps. The module is equipped with an uncooled 1310nm DFB laser, a high-sensitivity PIN photodiode, and a TIA, allowing for transmission distances of up to 10 kilometers. It uses an LC duplex connector and a hot-pluggable 20-pin interface. With low power consumption of less than 1.0W, it operates within a wide temperature range of 0°C to 70°C. The module is powered by a single +3.3V ±5% power supply and is compliant with Digital Diagnostic Monitoring according to SFF-8472 Rev 10.2.
- Maximum 10Gbps connection speed
- Maximum length 10km
Applications:
Features:
- LC connector
- SingelModeFiber
- 1310 nm
- OS2_10Km
- 1 x TX
- 1 x RX
- Hot-pluggable
- DDM
Main Specifications
| Brand | LinkIT |
|---|
| Connector type 1 | SFP |
|---|
| Connector type 2 | LC |
|---|
| Wave length (nm) | 1310 |
|---|
| Distance | Up to 10km |
|---|
Extended Specifications
| Transmission speed | 10Gbps |
|---|
| Fibre type | Single mode |
|---|
| SFP Coding | Cisco |
|---|
| Standards | IEEE 802.3ae 10GBASE –LR/LW, SFF-8431 Rev 3.0, SFF-8472 Rev 10.2, 10GFC Rev 4.0, FC-PI-4 Rev 7.0 |
|---|
| Temperature | 0°C to 70°C |
|---|
| EAN | 7072262025162 |
|---|
| Certifications | CE, RoHS |
|---|
