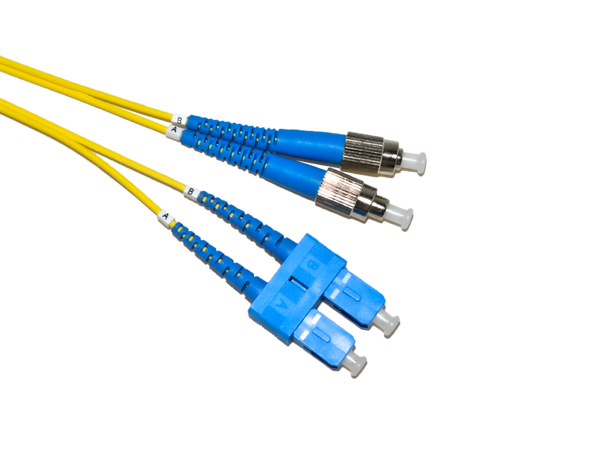

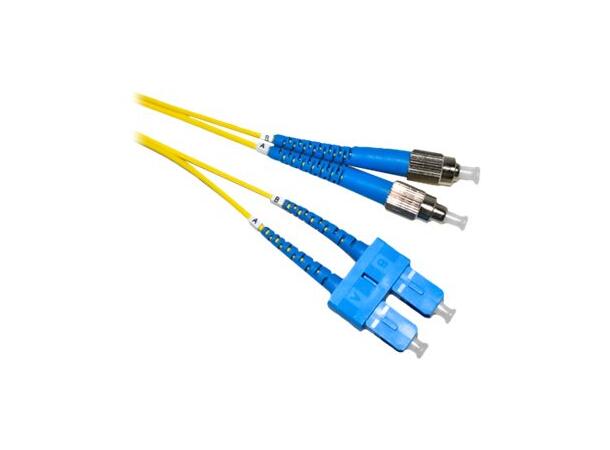

LinkIT fiber patch OS2 SC-APC/FC-UPC 5m
Duplex | SM | LSZH | Yellow
OS2 fiber cable with SC-APC/FC-UPC connectors
- OS2 Duplex cable
- Singlemode
- LSZH
- Yellow
Technical documentation
LinkIT fiber cord OS2 cable for smaller losses with small bending diameter (down to 20 mm). For standard fiber cable, bending diameters over 60mm are recommended. For 10Gb.
Main Specifications
| Length (m) | 5 |
|---|
| Color | Yellow |
|---|
| Category | OS2 |
|---|
| Brand | LinkIT |
|---|

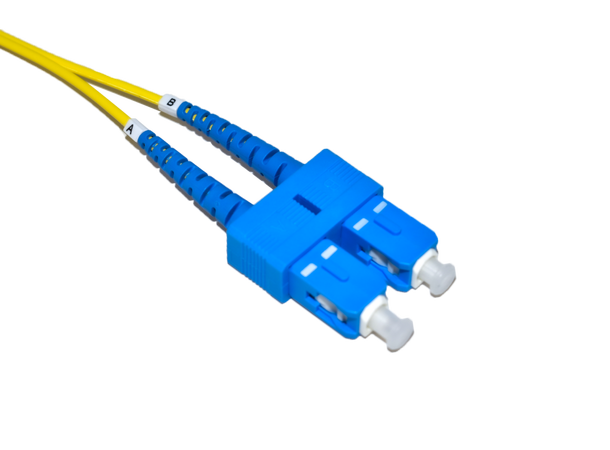

| Connector type 1 | SC-APC |
|---|

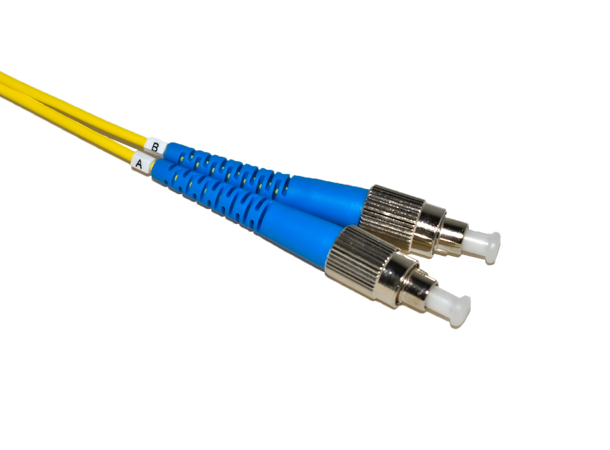

| Connector type 2 | FC-UPC |
|---|
| Polishing contact 1 |
| APC |
|---|
| Cable type | Duplex |
|---|
| Number of fibers | 2 |
|---|
| Core Diameter (um) | 9/125 Singlemode |
|---|
| Polishing contact 2 | UPC |
|---|
| Wave length (nm) | 1310/1550 |
|---|
Extended Specifications
| EAN | 7072262025131 |
|---|
| Maximum bend (mm) | 20 |
|---|
| Jacket material | LSZH |
|---|
| Anti-kink sleeve | Moulded |
|---|
| Halogenfree | Yes |
|---|
| Oil resistant | No |
|---|
| Fire retardant version | Yes |
|---|
| Cable Diameter (mm) | 2.0 |
|---|
| Certifications | CE, RoHS |
|---|
| Insertion Loss (dB) | =0.3 dB |
|---|
| Operating Temperature | -40ºC ~ +75ºC |
|---|
| Storage Temperature | -40ºC ~ +75ºC |
|---|
| Fire properties | IEC 60332-1-2, IEC 60754-1 , IEC 61034, IEC-60332-3-24 |
|---|
| Bending radius (mm) | 20 |
|---|
| Tensile loads (N) | 150N |
|---|
