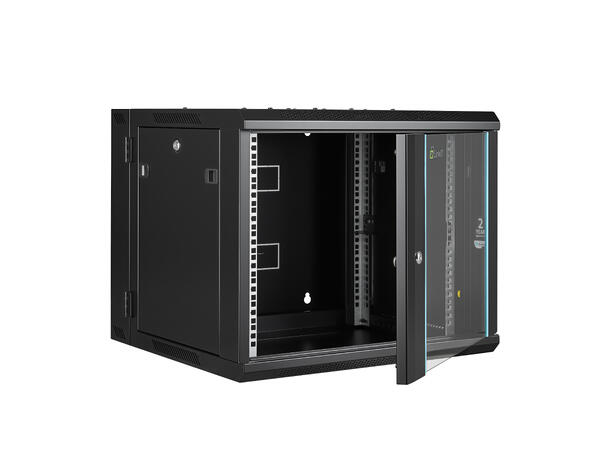

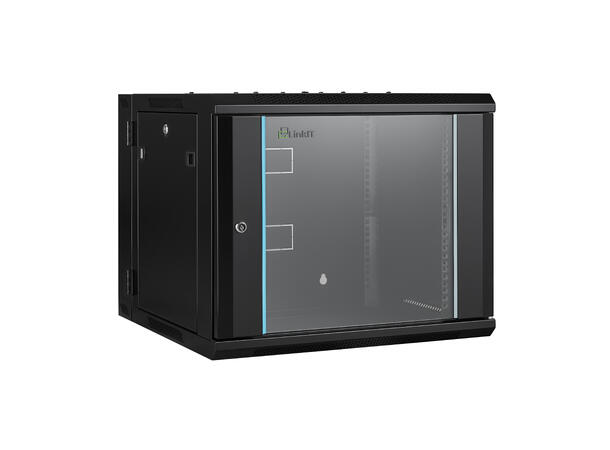

LinkIT Wall Cabinet Hinged 9U Black, W600xD600xH501 | Glass - Hinged frame

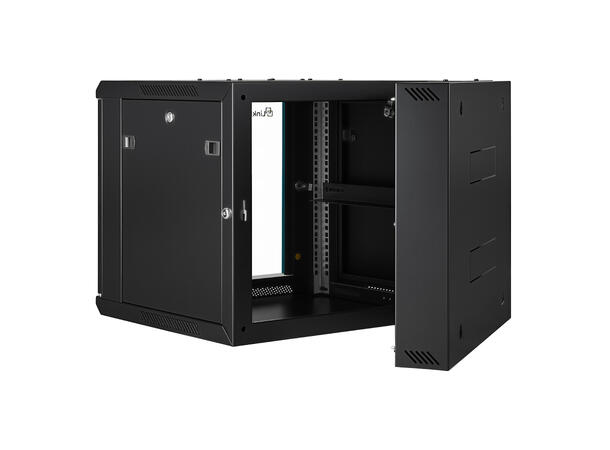

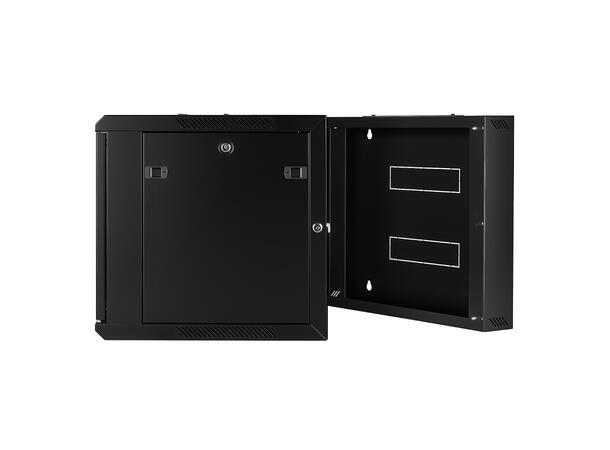

LinkIT double-hinged Wall Cabinet is a robust and space-saving cabinet designed for professional network and IT installations. The cabinet features a tempered glass door with a solid frame, cylinder lock, and a hinged rear section that allows the cabinet body to swing open for easy access to equipment and cabling from the rear. Removable side panels with lock provide additional access and increased security. Multiple cable entries on the top, bottom, and rear provide flexible installation and efficient cable management. Integrated grounding studs ensure safe operation. The cabinet is compatible with standard 19” rack equipment and is supplied with screws, cage nuts, and mounting tool for easy installation. Available in multiple heights, depths, and colors to suit various installation requirements. CE and RoHS compliant with a 10-year warranty.
Main Specifications
- Brand LinkIT
- Color Black
- Width (mm) 600
- Depth (mm) 600
- Height (mm) 501
- Cable bushings Top, bottom and rear
- Number of height units 9U
- Max load capacity (kg) 70
- Weight Lift 27,00
- Color (RAL) 9004
- Extended Specifications
- Degree of protection (IP) 20
- Front door Tempered Glass door with solid door border
- Front door locking system Cylinder lock
- Rear Door N/A
- Rare door locking system N/A
- Sidepanels Removable with lock
- Max Mounting Depth (mm) 547
- Standard Mounting Depth (mm) 447
- Grounding With grounding studs, no grounding cable

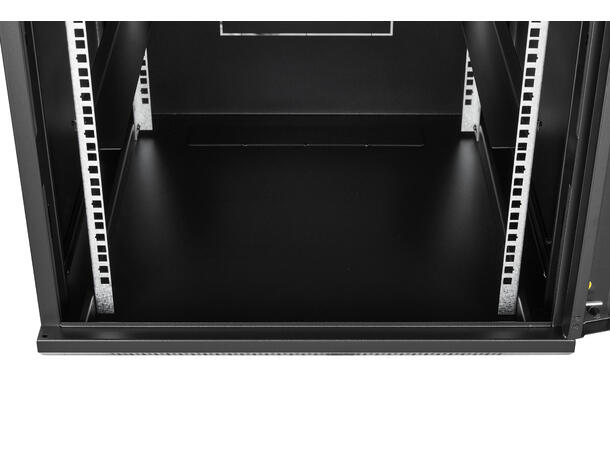

- Rail type L Type
- Rail number 4
- Guarantee (years) 10
- Certifications CE, RoHS

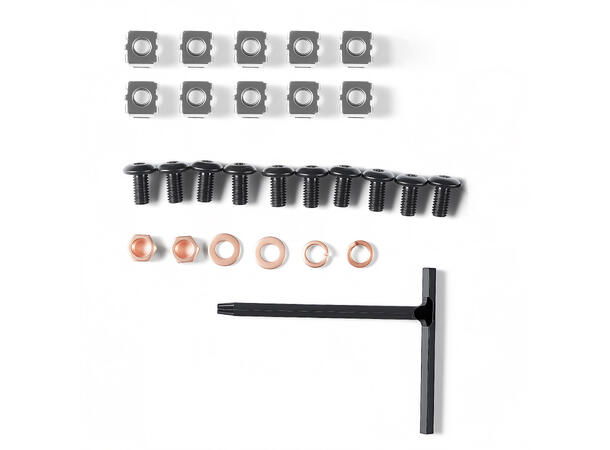

- Accessories 10 screws and cage nuts, 1 wrench
- Single packaging
- Height (cm) 56,1
- Width (cm) 66
- Length(cm) 66
- Weight (kg) 27
- Gross Weight (kg) 28,6
