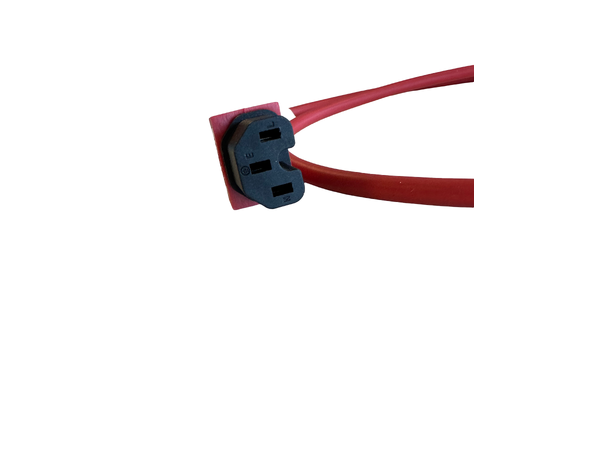

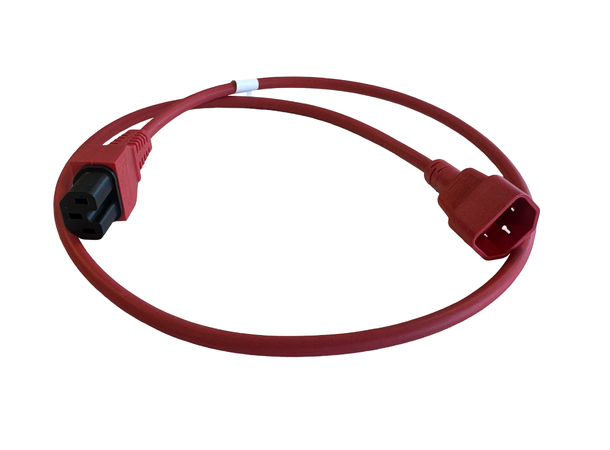

LinkIT powercable C15/C14 red 1m

Power cable with a C15 plug on one end and a C14 plug on the other. Rated 250 V and 10 A. LSZH jacket for low smoke and halogen-free performance. Maximum working temperature 70°C. RoHS and REACH compliant.

C15 plug to C14 plug
Rated voltage 250 V
Rated current 10 A
LSZH cable jacket (halogen free)
Max operating temperature 70°C

Main Specifications

Brand	LinkIT
Color	Red
Length (m)	1
Connector type 1	C15 (F)
Connector type 2	C14 (M)
Conductor material	Copper
Cable type	H05Z1Z1-F
Number of conductors	3

Extended Specifications

Jacket material	LSZH
Angle contact 1	Straight
Angle Contact 2	Straight
Voltage	250
Amperage	10A
Gauge	3*1.0mm2
Operating Temperature	70°C max
Cable Diameter (mm)	7.2 ± 0.2mm
Halogenfree	Yes
Certifications	REACH, RoHS

LinkIT Power Cable C15/C14 red 1m LSZH | 3 x 1,00 mm² | H05Z1Z1-F
