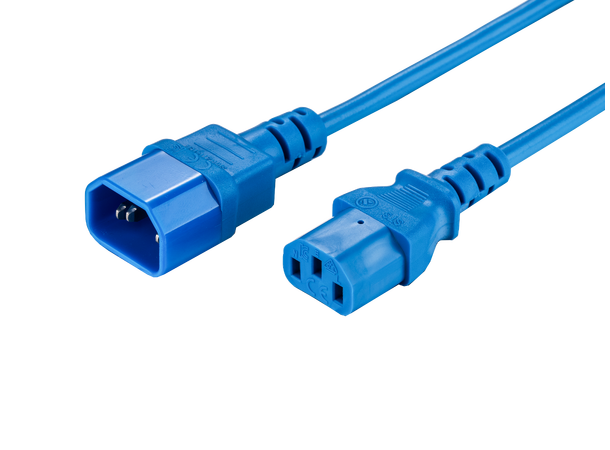

LinkIT
Power Cable C13/C14 Blue 2 m
LSZH | 3 x
1,00 mm² | H05Z1Z1-F
Blue C13 to
C14 power cable, 250V/10A, LSZH, straight connectors.
- Straight C13 (female) to C14
(male) connectors for standard power distribution.
- LSZH cable design reduces smoke
and toxic emissions in case of fire.
- Rated for 250V and 10A,
suitable for IT racks, servers and equipment.
- Manufactured with H05Z1Z1-F
3G1.00mm² conductors and 7.2 mm outer diameter, ensuring stable
performance and long lifetime.
- RoHS and REACH compliant
materials for safe use in professional environments.
Technical
documentation
Blue C13
(female) to C14 (male) power cable with LSZH jacket, H05Z1Z1-F 3G1.00mm²
conductors, 250V/10A rating and straight connectors. Max operating
temperature 70°C.
Main Specifications
|
Brand
|
LinkIT
|
|
Color
|
Blue
|
|
Length
(m)
|
2
|
|
Connector
type 1
|
C13 (F)
|
|
Connector
type 2
|
C14 (M)
|
|
Conductor
material
|
3 Wire
|
|
Cable
type
|
H05Z1Z1-F
|
|
Number
of conductors
|
3
|
Extended Specifications
|
NVP
value
|
69%
|
|
Jacket
material
|
LSZH
|
|
Angle
contact 1
|
Straight
|
|
Angle
Contact 2
|
Straight
|
|
Voltage
|
AC
110-250V
|
|
Amperage
|
10A
|
|
Conductor
colour code
|
Blue,
Brown, Green, Yellow
|
|
Gauge
|
3X0.75MM2
|
|
Operating
Temperature
|
-20 -
70 °C
|
|
Cable
Diameter (mm)
|
7.2
|
|
Halogenfree
|
Yes
|
|
With
Earthing
|
Yes
|
|
Certifications
|
REACH,
RoHS
|
