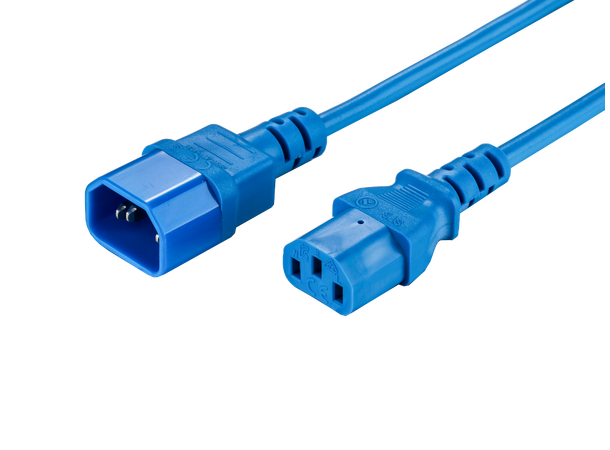

LinkIT Power Cable C13/C14 Blue 1 m
LSZH | 3 x 1,00 mm² | H05Z1Z1-F
Blue C13 to C14 power cable, 250V/10A, LSZH, straight connectors.
- Straight C13 (female) to C14 (male) connectors for standard power distribution.
- LSZH cable design reduces smoke and toxic emissions in case of fire.
- Rated for 250V and 10A, suitable for IT racks, servers and equipment.
- Manufactured with H05Z1Z1-F 3G1.00mm² conductors and 7.2 mm outer diameter, ensuring stable performance and long lifetime.
- RoHS and REACH compliant materials for safe use in professional environments.
Main Specifications
| Brand | LinkIT |
|---|
| Color | Blue |
|---|
| Length (m) | 1 |
|---|
| Connector type 1 | C13 (F) |
|---|
| Connector type 2 | C14 (M) |
|---|
| Conductor material | 3 Wire |
|---|
| Cable type | H05Z1Z1-F |
|---|
| Number of conductors | 3 |
|---|
Extended Specifications
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Angle contact 1 | Straight |
|---|
| Angle Contact 2 | Straight |
|---|
| Voltage | AC 110-250V |
|---|
| Amperage | 10A |
|---|
| Conductor colour code | Blue, Brown, Green, Yellow |
|---|
| Gauge | 3X0.75MM2 |
|---|
| Operating Temperature | -20 - 70 °C |
|---|
| Cable Diameter (mm) | 7.2 |
|---|
| Halogenfree | Yes |
|---|
| With Earthing | Yes |
|---|
| Certifications | REACH, RoHS |
|---|
