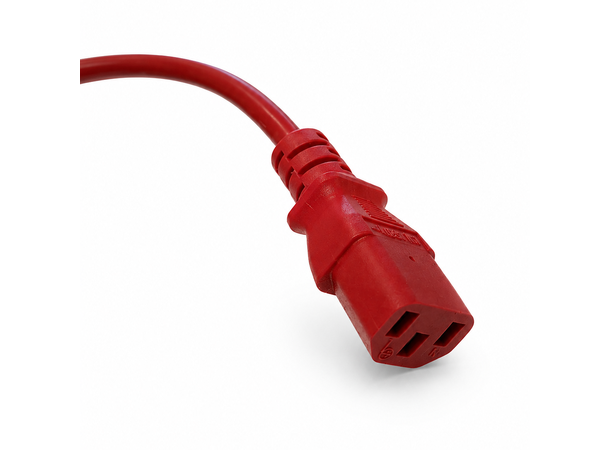

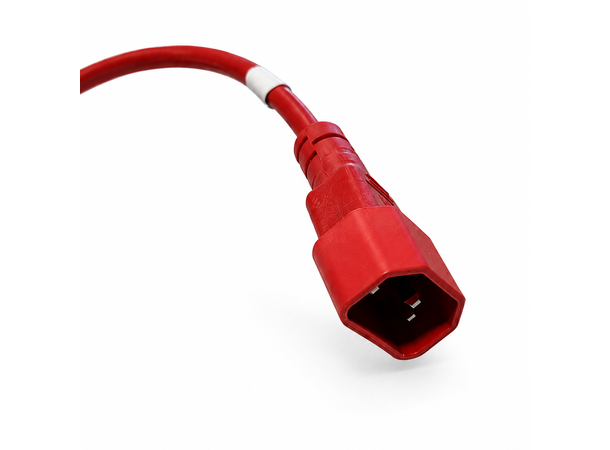

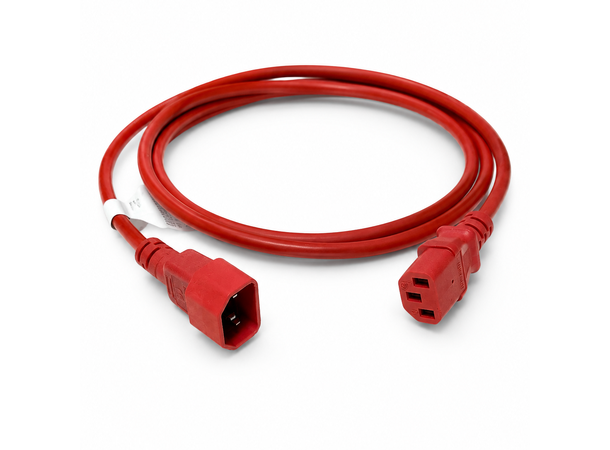

LinkIT Power Cable C13/C14 Red 2 m
LSZH | 3 x 1,00 mm² | H05Z1Z1-F
Red C13 to C14 power cable, 250V/10A, LSZH, straight connectors.
- Straight C13 (female) to C14 (male) connectors for standard power distribution.
- LSZH cable design reduces smoke and toxic emissions in case of fire.
- Rated for 250V and 10A, suitable for IT racks, servers and equipment.
- Manufactured with H05Z1Z1-F 3G1.00mm² conductors and 7.2 mm outer diameter, ensuring stable performance and long lifetime.
- RoHS and REACH compliant materials for safe use in professional environments.
Technical documentation
Red C13 (female) to C14 (male) power cable with LSZH jacket, H05Z1Z1-F 3G1.00mm² conductors, 250V/10A rating and straight connectors. Max operating temperature 70°C.
Main Specifications
Brand | LinkIT |
Color | Red |
Length (m) | 2 |
Connector type 1 | C13 (F) |
Connector type 2 | C14 (M) |
Conductor material | 3 Wire |
Cable type | H05Z1Z1-F |
Number of conductors | 3 |
Extended Specifications
NVP value | 69% |
Jacket material | LSZH |
Angle contact 1 | Straight |
Angle Contact 2 | Straight |
Voltage | AC 110-250V |
Amperage | 10A |
Conductor colour code | Blue, Brown, Green, Yellow |
Gauge | 3X0.75MM2 |
Operating Temperature | -20 - 70 °C |
Cable Diameter (mm) | 7.2 |
Halogenfree | Yes |
With Earthing | Yes |
Certifications | REACH, RoHS
|
