LinkIT Power Cable C13/C14 red 0.5m LSZH | 3 x 1,00 mm²

LinkIT Power Cable C13/C14 Red 0,5 m

LSZH | 3 x 1,00 mm² | H05Z1Z1-F

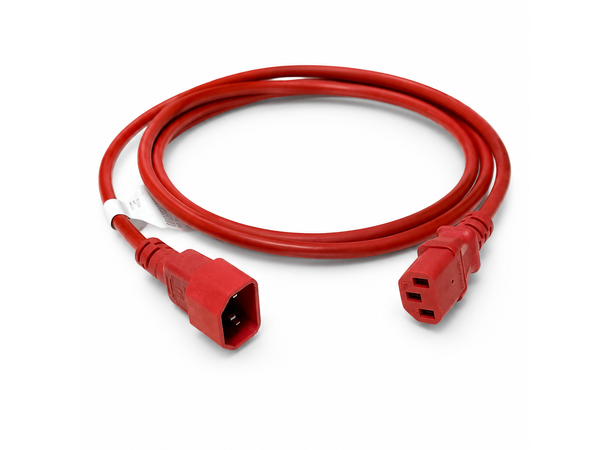

Red C13 to C14 power cable, 250V/10A, LSZH, straight connectors.

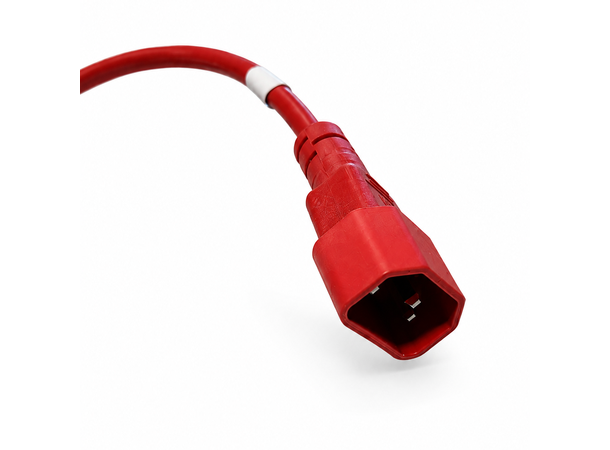

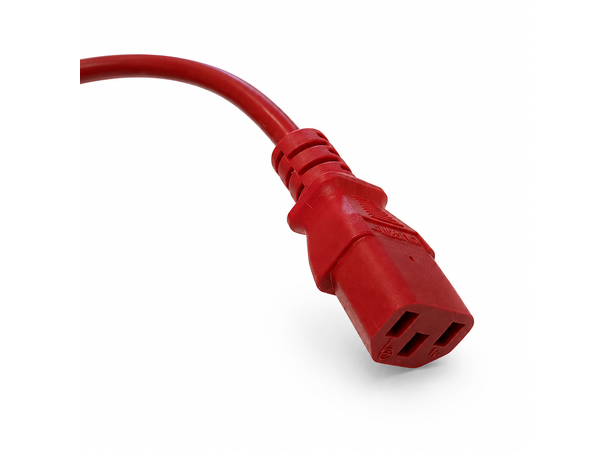

Straight C13 (female) to C14 (male) connectors for standard power distribution.

LSZH cable design reduces smoke and toxic emissions in case of fire.

Rated for 250V and 10A, suitable for IT racks, servers and equipment.

Manufactured with H05Z1Z1-F 3G1.00mm² conductors and 7.2 mm outer diameter, ensuring stable performance and long lifetime.

RoHS and REACH compliant materials for safe use in professional environments.

Technical documentation

Red C13 (female) to C14 (male) power cable with LSZH jacket, H05Z1Z1-F 3G1.00mm² conductors, 250V/10A rating and straight connectors. Max operating temperature 70°C.

Main Specifications

Brand	LinkIT
Color	Red
Length (m)	0.5
Connector type 1	C13 (F)
Connector type 2	C14 (M)
Conductor material	3 Wire
Cable type	H05Z1Z1-F
Number of conductors	3

Extended Specifications

NVP value	69%
Jacket material	LSZH
Angle contact 1	Straight
Angle Contact 2	Straight
Voltage	AC 110-250V
Amperage	10A
Conductor colour code	Blue, Brown, Green, Yellow
Gauge	3X0.75MM2
Operating Temperature	-20 - 70 °C
Cable Diameter (mm)	7.2
Halogenfree	Yes
With Earthing	Yes
Certifications	REACH, RoHS
