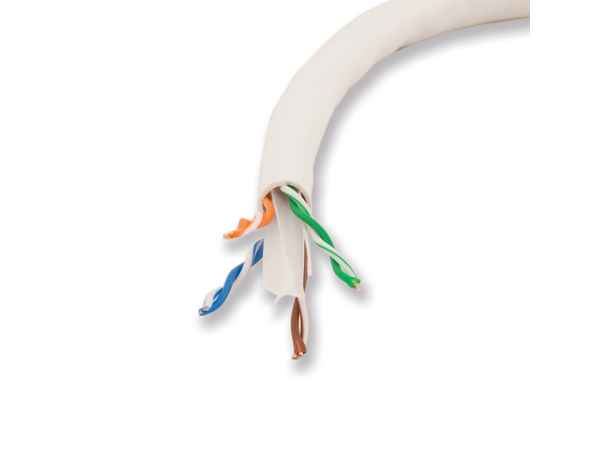

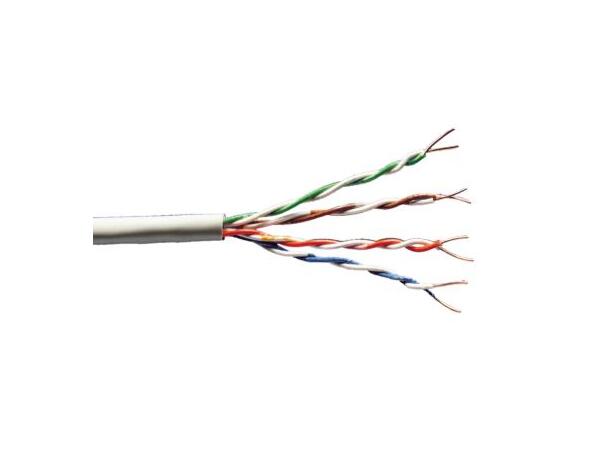

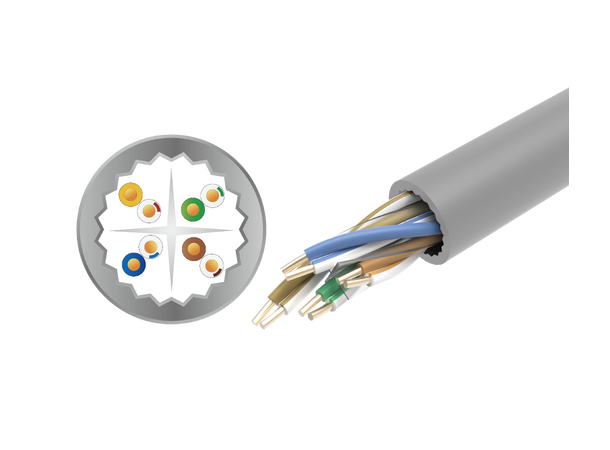

LinkIT Cat.6 U/UTP LSZH white 305m
Installation cable | AWG24/1 | 250Mhz | No print on cable
Halogen-free (LSZH) and unshielded Cat.6 cable – delivered on bundle. Can handle a mimimum of 250MHz band width. Due to a solid sheath, the cable can also be stapled to the wall with staples. Fire class Dca s2, d2, a1. The cable is certified according to the new CPR directive
- Due to a solid sheath, the cable can also be stapled to the wall with staples.
- No printing on the physical cable, special made for open installations.
- Certified according to the new CPR directive
- Fire class Dca s2, d2, a1
Main Specifications
| Length (m) | 305 |
|---|
| Cable type | U/UTP |
|---|
| Color | White |
|---|
| Category | Cat.6 |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | U/UTP – unshielded/unshielded twisted pairs |
|---|
Extended Specifications
| AWG wire size | 24 |
|---|
| Transmission speed | 1 Gbps |
|---|
| Frequency (Mhz) | 250 |
|---|
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Inner cape | LSZH |
|---|
| Conductor diameter | 0,52mm |
|---|
| Outer Cape diameter | 5,4mm |
|---|
| Halogenfree | Yes |
|---|
| Core color 1 | Blue, White |
|---|
| Core color 2 | White, Orange |
|---|
| Core color 3 | Green, White |
|---|
| Core Color 4 | Brown, White |
|---|
| EAN | 7072262022697 |
|---|
| Certifications | CE, RoHS |
|---|
| Cable fire class | Dca s2, d2, a1 |
|---|
| Segregation Class | C |
|---|
