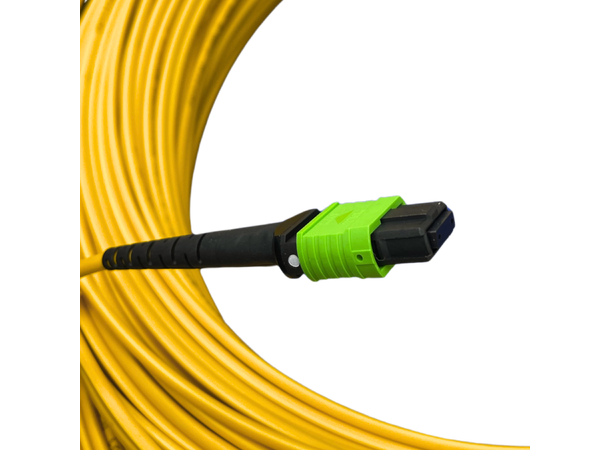

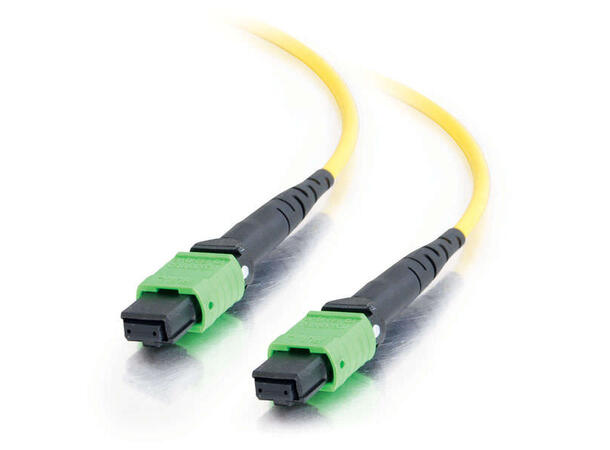

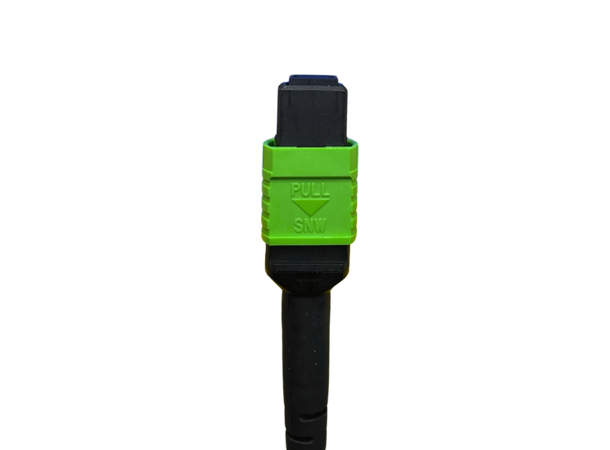

LinkIT MPO-A OS2 12c 130m
MPO Female - Female | LSZH
Single-mode with MPO female-to-female connectors.
- Operating and storage temperature from -20 to +70 degrees Celsius.
- LSZH and fire retardant
- Core diameter of 9/125 µm.
- Yellow
Main Specifications
| Brand | LinkIT |
|---|
| Color | Yellow |
|---|
| Length (m) | 130 |
|---|
| Category | OS2 12 fiber |
|---|
| Connector type 1 | MPO-Female A |
|---|
| Connector type 2 | MPO-Female A |
|---|
| Number of fibers | 12 |
|---|
| Core Diameter (um) | 9/125 |
|---|
Extended Specifications
| Jacket material | LSZH |
|---|
| Optical Return Loss (dB) | >60 |
|---|
| Insertion Loss (dB) | <0.75 |
|---|
| Operating Temperature | -20ºC ~ +70ºC |
|---|
| Storage Temperature | -20ºC ~ +70ºC |
|---|
| Cable Diameter (mm) | 3 |
|---|
| Halogenfree | Yes |
|---|
| Certifications | CE, REACH, RoHS |
|---|
