LinkIT MPO/MTP-A OM4 12 core fiber 30m
USConec female-female | armert | LSZH

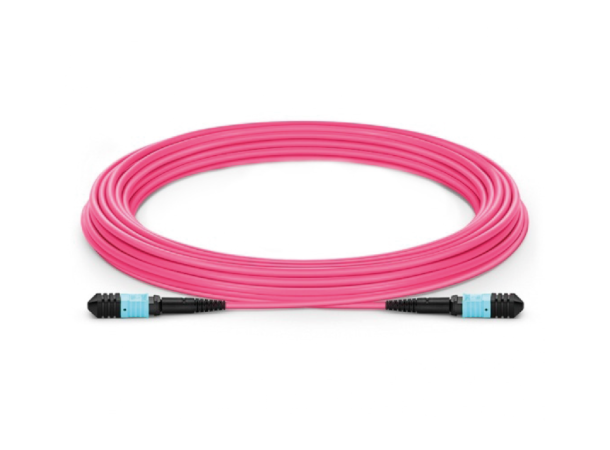

LinkIT MPO/MTP fiber optic armored OM4 cable with MTP female connectors version A. USConec MTP connectors are 100% compatible with MPO connectors. LinkIT multimode 12 fiber cable is 5mm in diameter, supplied with LSZH sheath and is fire-classified CPR class Cca, s1b, d1, a1. The cable typically has insertion loss of <0.75dB, return loss >60dB, minimum bend radius 20D and tensile loads 70N. The LinkIT OM4 MPO/MTP cable is delivered in magenta color and with a pull-on sleeve. The connectors are of the MTP/APC type. Max length with OM4 cable: 40/100Gbps = 150 metres, 10Gbps = 400 metres.
- MTP connectors from USConec
- CPR classified

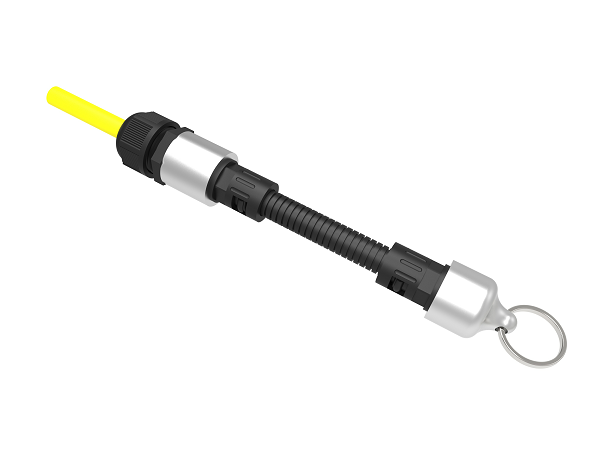

- Includes pulling tube
Main Specifications
| Brand | LinkIT |
|---|
| Color | Magenta |
|---|
| Length (m) | 30 |
|---|
| Category | OM4 |
|---|
| Connector type 1 | MTP USConec 50/125 OM4 |
|---|
| Connector type 2 | MTP USConec 50/125 OM4 |
|---|
| Number of fibers | 12 |
|---|
| Core Diameter (um) | 50/125 Multimode |
|---|
Extended Specifications
| Transmission speed | 40 Gbps / 100 Gbps |
|---|
| Jacket material | LSZH |
|---|
| Optical Return Loss (dB) | >= 60 |
|---|
| Cable Diameter (mm) | 5,0+/-0,20mm |
|---|
| Halogenfree | Yes |
|---|
| EAN | 7072262011325 |
|---|
| Certifications | CE, REACH, RoHS |
|---|
