LinkIT Cat.6A F/FTP Inst.cable LSZH 305m
AWG 23/1 | 500MHz | Drum | Eca

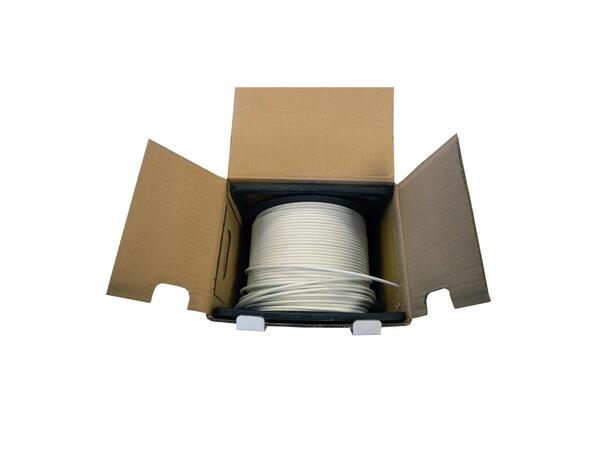

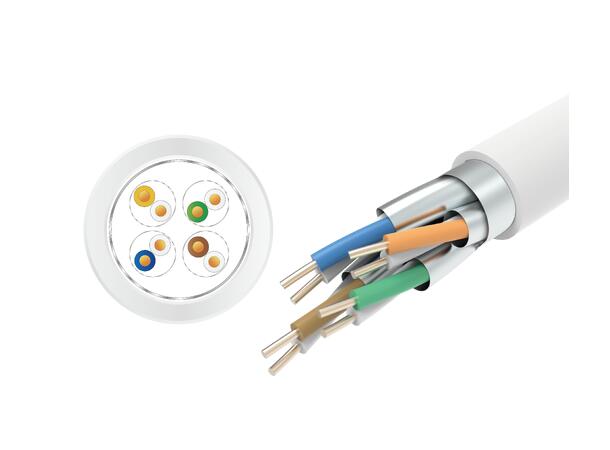

Halogen-free (LSZH) Cat.6a cable with foil shield around each pair, and around the pairs – delivered on drum. Can handle a mimimum of 500 MHz band width. Specifically designed for open installation, the cable is white in color, without any print. Due to a solid sheath, the cable can also be stapled to the wall with staples. Fire class Dca s1, d2, a2. The cable is certified according to the new CPR directive
- Specifically designed for open installation
- Due to a solid sheath, the cable can also be stapled to the wall with staples.
- Certified according to the new CPR directive
- Can handle a mimimum of 500 MHz band width
- Fire class Dca s2, d2, a2
Main Specifications
| Length (m) | 305 |
|---|
| Cable type | F/FTP |
|---|
| Color | White |
|---|
| Category | Cat.6a |
|---|
| Brand | LinkIT |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | F/FTP – foiled shielding/foiled twisted pairs |
|---|
Extended Specifications
| Cable fire class | Dca s2, d2, a1 |
|---|
| AWG wire size | 23 |
|---|
| Transmission speed | 1000Mbps |
|---|
| Frequency (Mhz) | 500 |
|---|
| NVP value | 69% |
|---|
| Jacket material | LSZH |
|---|
| Inner cape | LSZH |
|---|
| Conductor diameter | 0,55mm |
|---|
| Outer Cape diameter | 7,0mm |
|---|
| Halogenfree | Yes |
|---|
| Core color 1 | Blue, White |
|---|
| Core color 2 | White, Orange |
|---|
| Core color 3 | Green, White |
|---|
| Core Color 4 | Brown, White |
|---|
| EAN | 7072662004842 |
|---|
| Certifications | CE, RoHS |
|---|
| Segregation Class | C |
|---|
