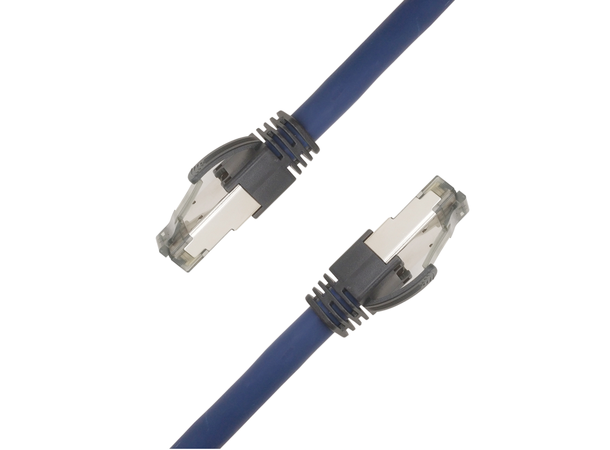

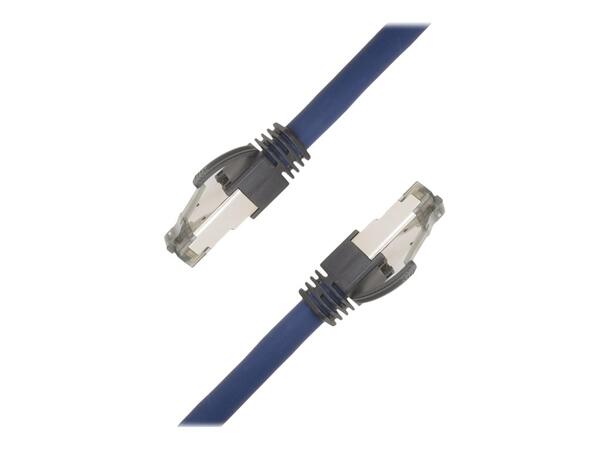

LinkIT Patch S/FTP Cat.8.1 Blue 1.5m
AWG24/7 | LSZH | 8mm
Cat8.1 patch cables are high-performance Ethernet cables designed to support higher data speeds and longer distances compared to traditional Cat5e and Cat6 cables.
Cat8.1 patch cables have a bandwidth of 2000Mhz, allowing for speeds up to 40 Gbps. This supports the latest data centers and enterprise applications.
- Braided shielding and foiled pairs
- Up to 40Gbps speed
- 2000MHz bandwidth
- LSZH (Halogen-free)
- Snagless
Main Specifications
| Brand | LinkIT |
|---|
| Cable type | S/FTP |
|---|
| Bandwidth | 40Gbps |
|---|
| Color | Blue |
|---|
| Length (m) | 1.5 |
|---|
| Connector type 1 | RJ-45 M (8P8C) |
|---|
| Connector type 2 | RJ-45 M (8P8C) |
|---|
| Category | Cat. 8.1 |
|---|
| Conductor material | Copper |
|---|
| Cable shielding | S/FTP – braided shielding/foiled twisted pairs |
|---|
| Conductor design | Stranded |
|---|
Extended Specifications
| Cable fire class | Eca |
|---|
| AWG wire size | 24 |
|---|
| Transmission speed | 40Gbps |
|---|
| Frequency (Mhz) | 2000 |
|---|
| Cable structure | 4 x 2 AWG 24/7 Twisted pair |
|---|
| Locking type | Snagless |
|---|
| NVP value | 72% |
|---|
| Jacket material | LSZH |
|---|
| Pin Assignment | 568B-568B |
|---|
| Halogenfree | Yes |
|---|
| Fire retardant version | Yes |
|---|
| Connector contact plating | 50µin gullbelegg |
|---|
| Certifications | CE, REACH, RoHS, UL |
|---|
| Anti-kink sleeve | Moulded |
|---|
